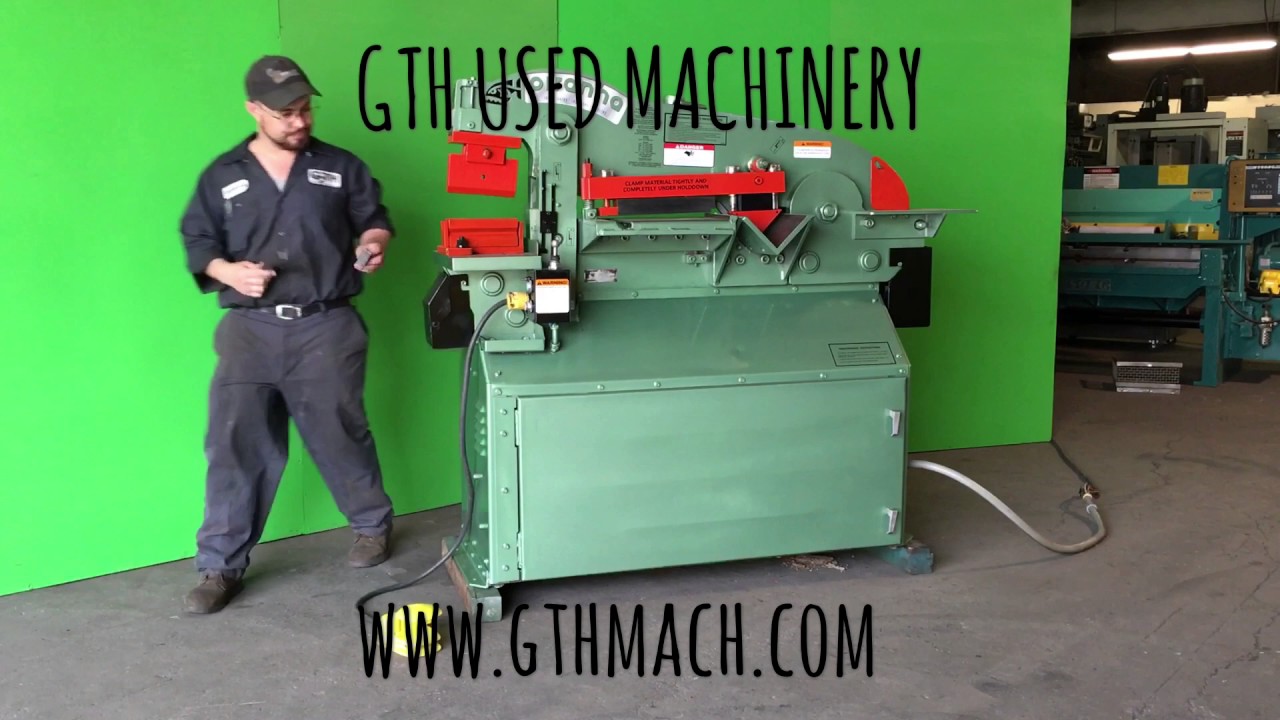

PIRANHA P3 HYDRAULIC IRONWORKER 50 TONS

FINANCING AVAILABLE

Specifications:

Throat Depth...................8"
Open Height....................13-1/2"
Closed Height No Die Block.....9-1/4"
Stroke.........................4-1/4"
Platen Size....................10" x 7"

Punch:
Capacity.......................50 Tons
Hole Size......................13/16" in 3/4" Material Max
Max Hole Size..................5" in 1/8" Material

Plate Shear:
Length of Blade................15-1/2"
Capacity.......................3/4" x 10" & 5/8" x 15"

Angle Shear:
Capacitys......................4" x 4" x 1/2" & 5" x 5" x 3/8"

Bar Shear:
Rounds.........................1/4" to 1-1/2"
Squares........................1/2" to 1"

Coper-Notcher:
Capacity.......................50 Tons
Max. Cut.......................2-3/4" x 4" x 1/4"

Bending Attachment:
Overall Length.................8"

Punch End Strokes Per Min......60 @ 1/2"
Work Station Height............42"
Hydraulic Tank Capacity........20 Gal, 10.5 GPM, 2600 PSI
Main Motor.....................10 HP, 230/460v, 3Ph
Dimensions.....................24" x 66" x 60", 2,600 lbs

Equipped With:

Joy Stick Controls
Notching
Bending Die 4 way
Foot Electric Switch
