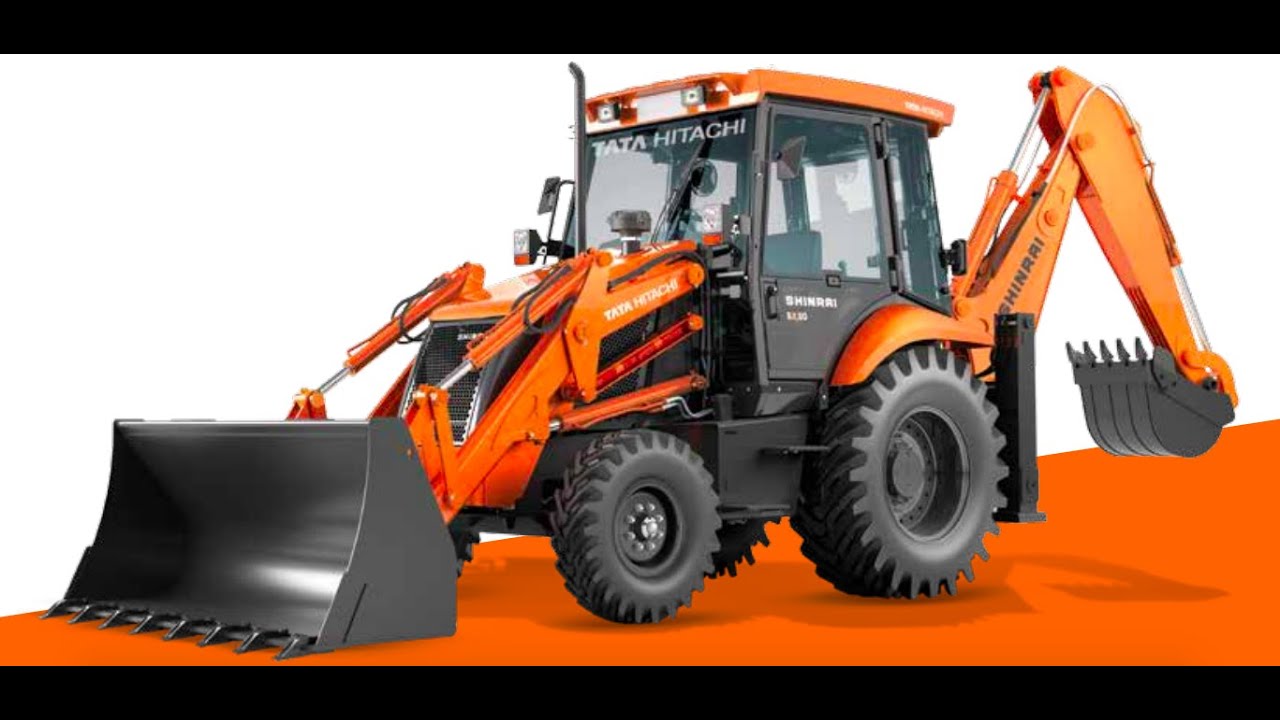

Tata Hitachi, a joint venture between Tata Motors Ltd and Hitachi Construction Machinery Company Ltd announced the unveiling of the all-new backhoe loader – Tata Hitachi Shinrai.
specifications: Operating Weight :7,800 kg
Bucket Capacity
Backhoe: 0.26 m3
Loader: 1.1 m3
Superior engine performance
Reliable transmission and axle system
In-line fuel injection pump for easy maintenance
ENGINE
Make ...................................................................................................................................Cummins
Model.............................................................................................................................. B3.980C30
Type ......................................................................... Turbo-charged, inter-cooled direct injection
Gross Power......................................................................................80 HP (60 kW) @ 2,200 RPM
Max. Torque .................................................................................................. 325 Nm @ 1,300 RPM
Battery........................................................................................................... 12 V, 130 Ah, 95 amps
No. of Cylinders........................................................................................................................ 4 nos.
Bore ...................................................................................................................................... 102 mm
Stroke ................................................................................................................................... 120 mm
Displacement.......................................................................................................................3,922 cc
HYDRAULIC SYSTEM
Excellent Hydraulic System (EHS) with Tandem gear pump for lower fuel consumption
System Pressure .................................................................................................................. 245 bar
Max. Pump Flow............................................................................................128 lpm @ 2,200 RPM
Control Valve: Sectional valves that are individually replaceable.
TRANSMISSION
• Equipped with Carraro-make transmission with synchro-shuttle
• The solenoid-type mechanism allows smooth, easy forward and reverses movements
SPEEDS
Forward
1st..................................................... 5.78 kmph
2nd...................................................9.23 kmph
3rd................................................. 20.60 kmph
4th..................................................40.44 kmph
Reverse
1st...........................................................7 kmph
2nd.................................................. 11.22 kmph
3rd......................................Not recommended
4th......................................Not recommended
