Скачать или смотреть Stone Splitting Machine - Series Trittico - MEC

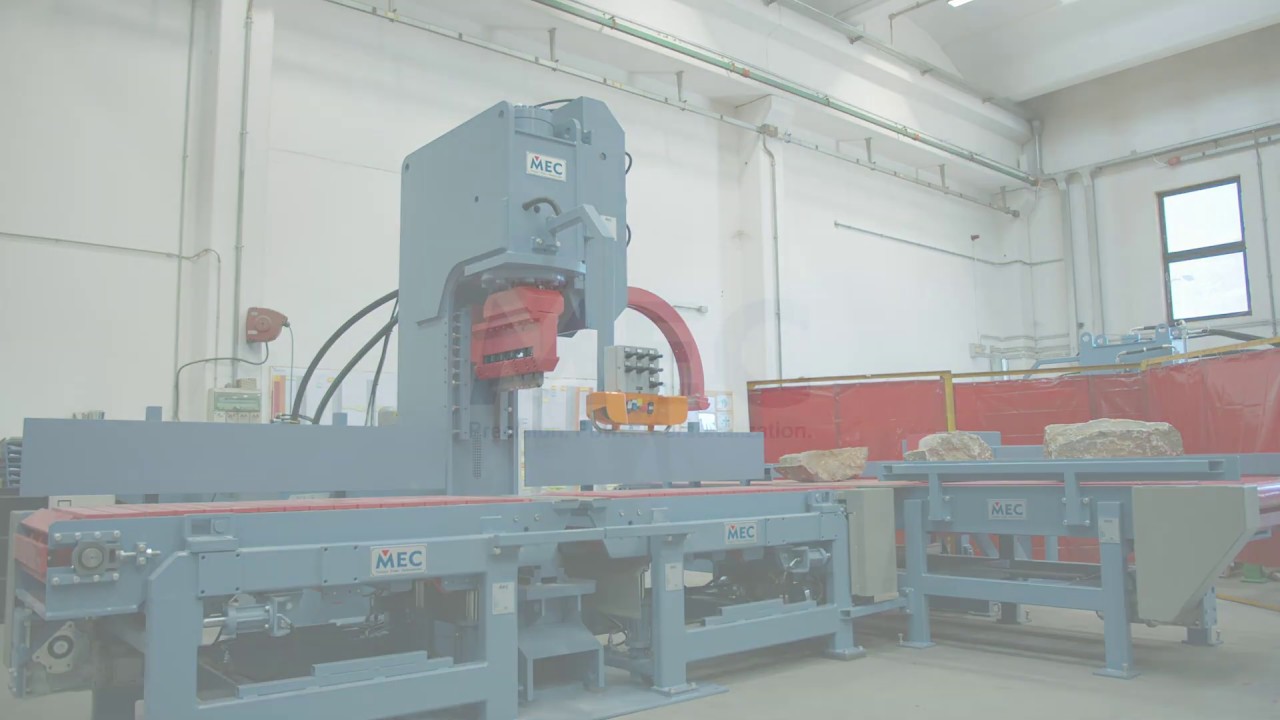

These machines are manual and ideal for splitting every kind of stone, mostly irregular, medium or big dimensions. Trittico machinery eliminates the physical effort of the operator to place heavy rocks under the blade thanks to the combined use of entry and sometimes even exit conveyors depending on the kind of stone. The entry working table is replaced with conveyor, that brings the material under the splitting blade. The conveyor may have a double row of steel slats: synchronizing the feeding of both rows, it is possible to move the stone under the blade and rotate it even on 360°. The rotation allows following the profile of the stone and aligning the material for splitting position.

It is also possible to split the same piece of the stone more times, much easier, it doesn’t need to bring the stone to the beginning of the line.

The Trittico series can be considered like independent production unit or primary splitting machine in the complete processing line.
