Schematic available here: https://emeraldamp.files.wordpress.co...

Sunset Dr 100

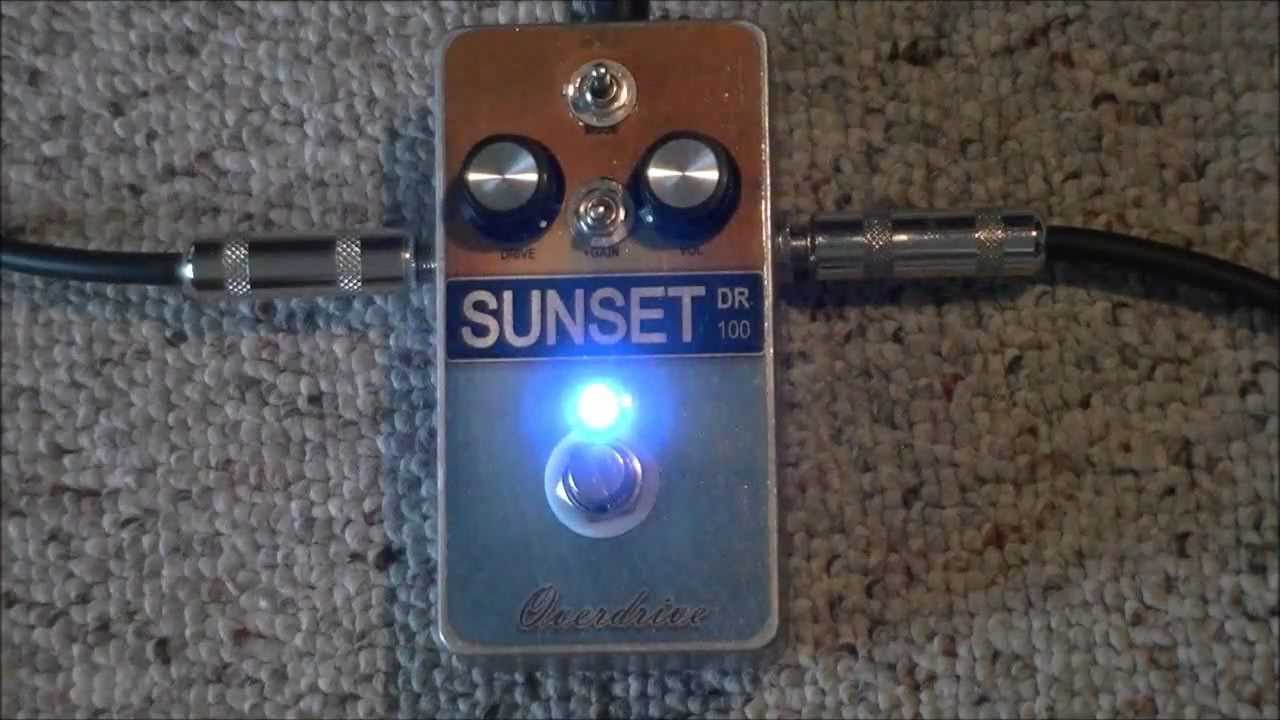

The handmade Overdrive I built in Kelowna, BC, in June, 2012.
ハンドメイドのオーバードライブ
** Audio captured by the Video Camera. Played an MIM Strat on a Peavey Classic 30.

It's not a clone of any pedal in the market.
It may probably sound similar to the tube screamer depending on the settings, however it's a transistor based overdrive

I drew both the schematic and the art.

Description of the Controls:
Left knob: Gain
Right knob: Volume
Toggle switch in between the knobs: +Gain
normal gain when switch is up
more gain when down
Other switch: Modes (I - off - II)
Off: works more like a "clean booster"
I and II: are very nice overdrives with subtle differences in tone.
