Routing a Corded Data Logger Probe through the Cool Cube™ 96

The Cool Cube™ medical cooler line is ideal for public and private health facilities and laboratories looking for a backup cold storage or cold chain transport solution for products requiring precise temperature protection for extended durations. The Cool Cube™ medical cooler is available in 4 sizes and in the following temperature ranges:
RT Line (Room Temp): Keeps FFPE, Platelets & Biospecimens at 15° to 25°C for 91-143 hours, depending on cooler size
BT Line (Fridge Temp): Keeps Blood Products at 1° to 10°C for 70-128 hours, depending on cooler size
VT Line (Refrigerator Temp): Keeps Vaccine & Medicine at 2° to 8°C for 65-126 hours, depending on cooler size
FT Line (Freezer Temp): Keeps Frozen Vaccine & FFP at -50° to -15°C for 62-139 hours, depending on cooler size

View Cool Cube™ size and temperature options:
https://www.vericormed.com/cold-chain...

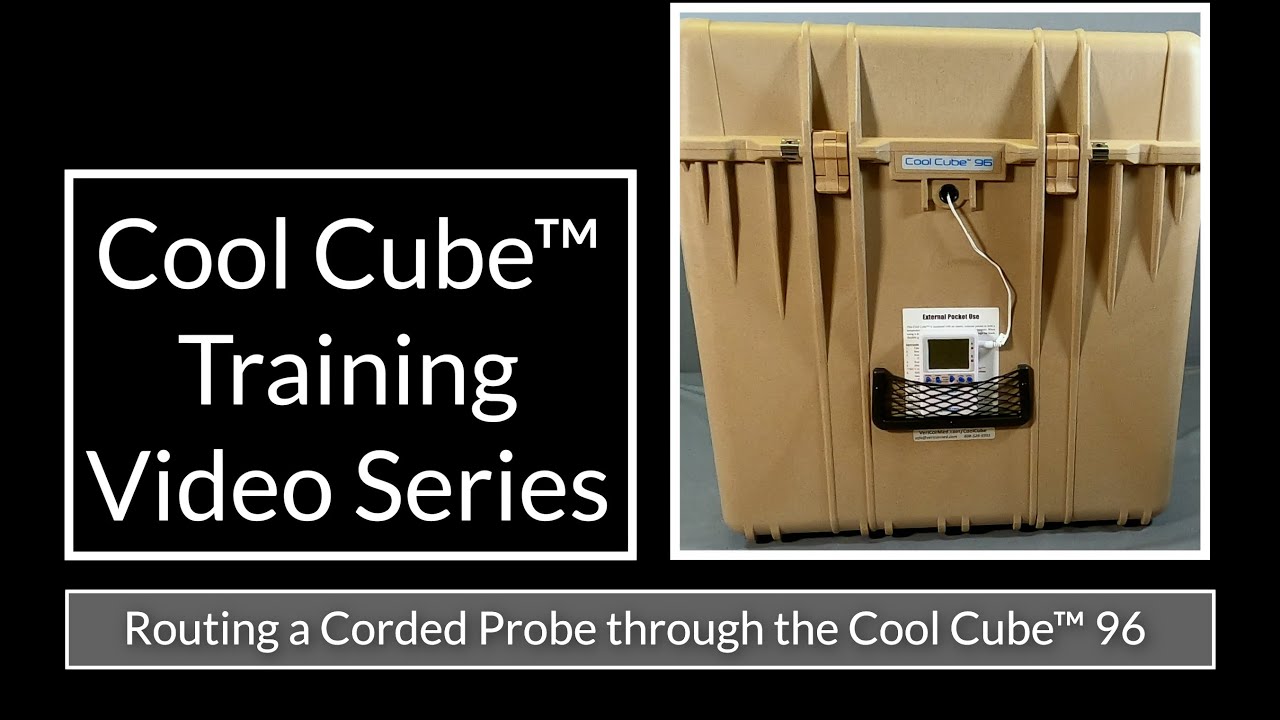

The Cool Cube™ 96 has an elastic, external pocket to hold a temperature monitor (or other things) during use. When using a device with a corded probe, here’s how you can do it:

1. Slide out the front PCM panel being careful not to disturb the product arrangement.
*Be cautious of rings/jewelry on this next step.*
2. Place the probe within the chamber as if it were the product. Route the cord to the center, front of the Cool Cube™. (If you have not disconnected the cord from the device, do so now.)
3. Slide a hand between the outer case and front Styrofoam insulation to , the front vacuum insulated panel will flex slightly.
4. Take the plug end of the cord and slide it down between the foam and outer wall of the case about 2” to the black flexible grommet.
a. The design allows for the grommet to be removed or possibly popped out during this process. Route the cord through the grommet and re-insert if necessary.
5. Push the plug end of the cord through the flexible grommet, from the inside out.
6. Replace the front PCM panel and place the final panel on top to complete the chamber.
7. Plug the cord into the temperature monitor and place it in the pocket of the Cool Cube™.
8. Close the lid of the Cool Cube™.

One moment of caution here. Routing a cord through the open lid and not utilizing the grommet hole will likely inhibit the lid from closing completely and could damage or sever the cord when closing the lid.

Now go, enjoy the peace-of-mind a Cool Cube™ brings!

Best Practice: Condition the probe to the target temperature before integrating it into the Cool Cube™ chamber.
