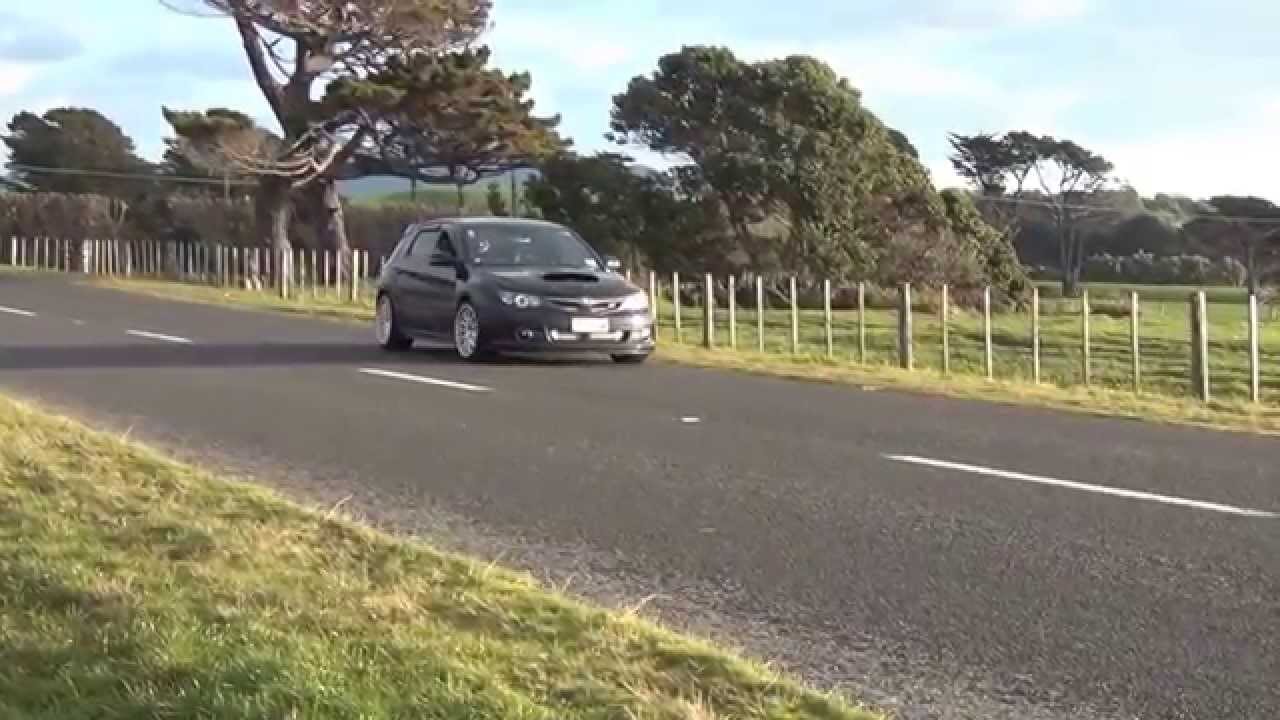

Скачать или смотреть Smitho Racing - Modified Subaru Sti Launch 480awhp

http://www.iwsti.com/forums/gr-member...

  / smithoracing

Creating the ultimate street GRB....

Current Kelford 282's Tune with Highflow Cat: 481whp, 437wtq @ 29.25psi on Gull 98 Pump Gas

Power at Crank with 24% Drivetrain loss: 627hp, 570 ft/lbs

My 2008 GRB JDM Spec R Sti.


ENGINE MANAGEMENT

Emtron Australia KV8 Pre-Release MY07-14 Plugin Engine Management

Emtron Excess Loom for extra inputs - Lambda & Oil Temp

Emtune Logging and Motorsport Control

Toshiba 8" Tablet for Live Data Dash and PC Logging/Tuning

Protuned E&H Motors on 98 Octane

Defi External Oil Pressure Sensor

Defi External Fuel Pressure Sensor

Defi External Oil Temperature Sensor

Lambda Sensor connected to Emtron for closed loop lambda fuel control

Lightweight Odyssey PC680MJT Deep Cycle Battery



ENGINE BLOCK

NEW Subaru Semi-closed v7 EJ207 Engine Block

Eagle H-Beam Conrods

JDM STI Forged Pistons ported for Oversize valves

ACL race bearings

New OEM 2.0L crank

Subaru Group N Engine Mounts

Subaru Group N Transmission Mount

Kartboy Engine Pitch Mount



OIL SYSTEM

OEM V11 Oil Cooler

12mm Oil Pump

Black IAG Air / Oil Seperator

Killer B Motorsport V2 Performance Oil Pan

Motul 300V 15W50 Oil

MRP Thermostatic Sandwich Plate

Setrab Series 6 13 Row Oil Cooler

Speedflow Oil Cooler Lines and Fittings

Custom E&H Front Mount oil cooler bracket & ducting



HEAD

V11 Heads with Porting

H11mm Head Stud Kit

Kelford 282 Race D-Shaped Cams

Ferrea 1mm Oversize Valves



FUEL

Highflowed Standard Subaru Injectors to 950cc

Denso IKH27 Spark Plugs

AEM 320lph Fuel Pump

Speedflow fuel rails, lines and fittings

Tomei Type S Fuel Pressure Regulator

98 Octane Fuel (93 Octane US equivalent)

IAG V2 Parallel Top Feed Fuel Rails - Black





INDUCTION

Borg Warner EFR7670 Turbo 1.05 A/R T4 Twin Scroll (external WG)

Sonic Turbo Beanie

Custom E&H Exhaust Up and 3" Down pipe

E & H Custom Plenum Chamber for Intake Manifold

Deleted TGV and Ported Bolt on Adaptors - Emission sensors disabled

LINK 4 Bar MAP Sensor

Tial 44mm EWG's

HKS SuperTurbo Exhaust

E&H Highflow Catalytic Converter with Straight Pipe adapter for Track/Drag

HKS Racing Suction R Intake

600x300x100mm Custom E&H Front mount Intercooler with piping with DEI Reflect-a-gol d Tape heat wrapping.

Koyo Racing Radiator - Dual Core



DRIVE TRAIN

JDM 6 Speed Manual Transmision

Stock Front and Rear Differential’s

E&H Custom Driveshaft loops x 2

Exedy Single Plate HD Clutch & Machined Lightweight Flywheel

STI Brembo 4 Pot Front and 2 Pot Rear Brakes

DBA T4000 Series Slotted Front Rotors

DBA T2 Street Series Slotted Rear Rotors

Motul 600 Dot 5.1 Brake Fluid

Endless MX72 Front and Rear Pads

New Relocated Teflon Power steering lines



SUSPENSION / HANDLING

JDM 13:1 Steering Rack

Sti Front Lip

Whiteline 22mm Front and Rear Sway Bars

Whiteline Front Control arm - lower inner rear bushing (anti-lift/caster correction)

Whiteline Front Roll centre/bump steer - correction kit

Whiteline Front lower control arm brace

Whiteline Front Strut Tower Brace

RCE Yellow Lowering Springs



WHEELS / TYRES

Work Emotion 11R 18x9.5" Wheels

Nitto NT05 245/40R18 Tires



INTERIOR

Spec R Recaro Leather/Suede Seats

JDM Sti Push Button Start

AVS A5 Car Alarm

JDM Sti 2 Bar Boost Gauge (Metric: Bar)

Prosport Stepper Series Fuel Pressure Gauge (Imperial: PSI)

Defi Red Racer Oil Pressure Gauge (Metric: Bar)

Bel STi Magnum Radar Detector

GoPro 3 HD - Mounted on Light Switch

VBOX Sport - Data Logger

Ram Composite Twist Lock Suction Cup iPhone Mount with Universal X-Grip

Harrys Laptimer Grand Prix Edition

JBL C608GTi Component Speakers Front and Rear.

JBL GTO-804EZ Amplifier

Rockford Fosgate P300-10 Subwoofer

Sony XAV64BT Double Din Head Unit

Driver Mod



New Kelford 282's Tune: 481whp, 437wtq @29.25psi



Old Kelford 282's Tune: 471whp 416wtq @ 27.66psi



Kelford 272's: 494whp 446wtq @ 31.7psi





401whp 329wtq (Limited by Tuner to be safe with Factory ECU)





Exhaust + Air Filter + Tune: 269whp





Stock: 227whp
