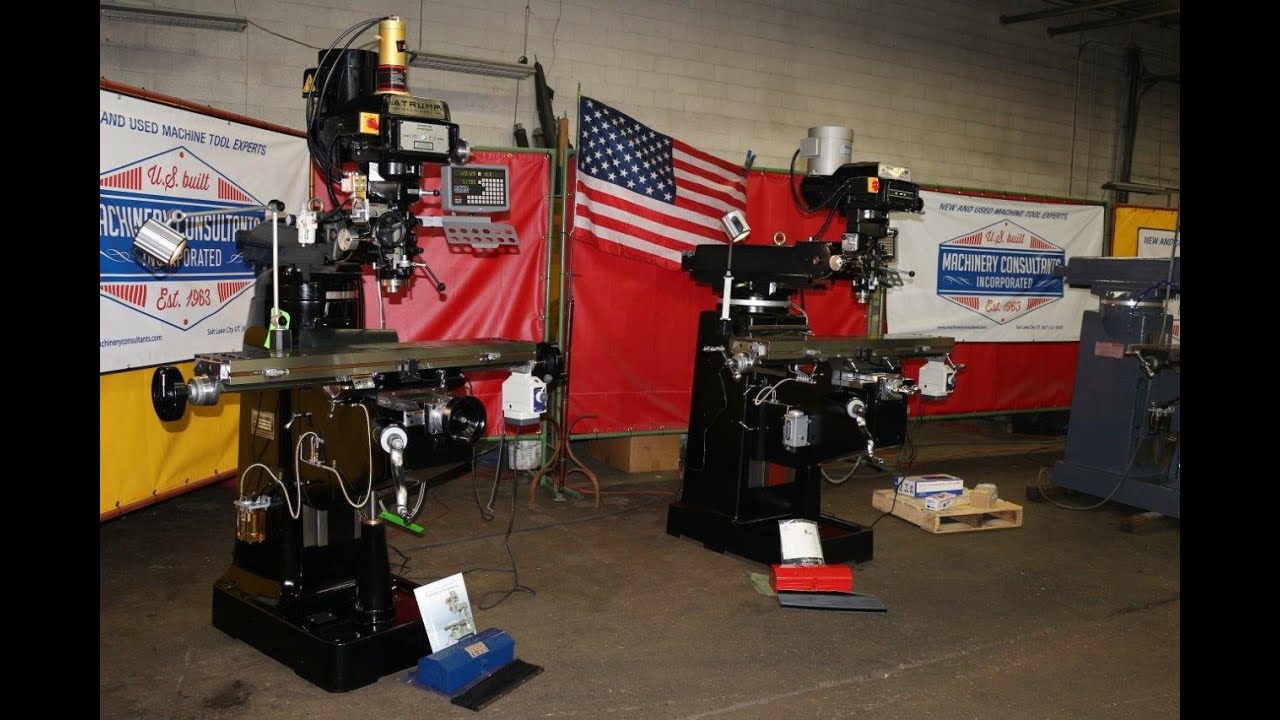

Atrump Manual Knee Milling Machine ~ Model: K2VS Mill ( NEW)

Standard's & Specification:
Table Working Area: 9” X 49”
Longitudinal travel (X-axis): 36”
Cross travel: ( 12" ) (12” less ¼” for DRO Scale on rear of Table)
Z axis quill travel: 5”
Knee travel (manual): 16”
Quill diameter: 3.375”
Spindle nose to table top (D) 0.75”-16.75”
Load capacity: 820 lbs.
Spindle taper: R8
Spindle Speeds in rpm speed range: 70 to 4200 rpm with High/Low gear
Transmission of spindle & motor: Timing Belt, Variable speed Range’s
Spindle center to column front surface: 6.875” to 27.875”
Ram Travel: (front to back movement) 12”

Head Swiveling Capacity:
Swivel (left/right): 90 degree
Tile (front/back): 45 degree

Motor – Main Drive Motor info:
Spindle motor/max torque: 3 HP (Standard)
KVA rating: 4 KVA, 15 amps
Coolant pump (optional): 1/8 HP
Lubrication pump: one shot lube with manual crank handle

Power requirement: 4 KVA, 3 Phase 208-230 voltage
( can accept 440 Volts also )

Length X Width X Height (LXWXH): 77” x 65” x 82”
Net Weight: 2,600 lbs.
.

Items Included in Price of Milling machine:
Align – X Axis Table Power feed Unit, Pre-Installed
Sino Brand 2 Axis on X and Y DRO, Pre-Installed
Safety Folding Handles for table left, right & cross axis, included
1 Shot Oil - Lube - System (with Clear Tank for High-visibility)
 Neoprene Way Covers, Halogen Work Light – Installed
3 HP Spindle Motor, R8 Spindle Taper / request 220 or 440 Volts
 0 - 4200 RPM spindle speeds/ High & Low Range (low back gear)
 Hardened & Ground with turcite-B coating guide way,
 C7 Double nut precision acme lead screws for high accuracy & long lasting
 FC30 Meehanite Casting main frame with annealed & stress relieved for long term reliability
 Anti rust chromed quill, super precise, smooth & accurate
 Standard Neoprene way covers on all three axes
 Tool box & Tools
 Precision APEC class7 spindle bearing to ensure spindle run out within 0.0002
 Auto-1 shot lube pump system for Oil Lubrication on xyz axis
 Sino Brand DRO-2-Axis – X & Y Digital Readout Unit – Pre-Installed
 Align X – Axis Table Power Feed Unit – Pre Installed on Table
 Built - in Quartz Halogen work light (Long arm type) /collet tray
**** Operations & Maintenance Manual

Optional Accessories:
available upon request:
R8 collet Sets, many brands in stock, 58 pc. Clamp kit, mill vises,
Tooling for spindle, Keyed & Keyless Drill chucks, angle plates,
power drawbar, additional Power feed units for Cross & Knee axis.
