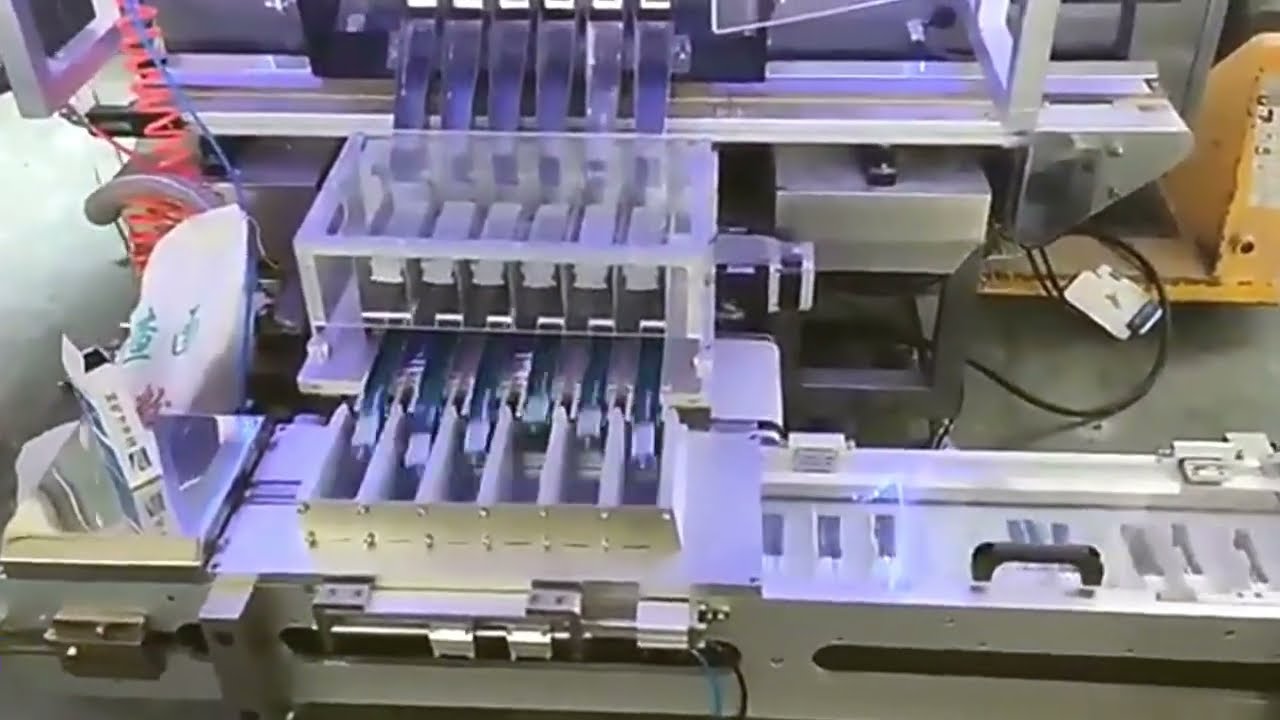

Скачать или смотреть 6 lanes stick packing machine coffee bagging integrated with cartoning equipment

Multi-Lane liquid packaging machine is suitable for ketchup, tomato paste. cherry paste , chocolate paste,chili sause,
honey,peanut butter, mayonnaise, olive oil, soup , shampoo , handwashing fluid , liquid detergent ,etc.
Features of Multi-Lane liquid Packing Machine
1.Full material is 304 stainless steel
2.Heavy duty design suits for high speed operation
3.No waste of film design, no reservedfilm edge required
4.Motorized Roller type film dividing device
5.PLC & Touch screen HMI control
6.Guided servo motorized film pulling device integrated with horizontal seal
7.Individual servo auger dosing for each lane and automatic dosing range adjustment by PLC
8.Visible hopper with openable door
9.Intelligent PID temperature controller
10.Door open and machine stop interlock
11.No packaging film and machine stop interlock
Specification of multilane packing machine:
Voltage
220V,50Hz,single phase
(could be customized)
Power
3.5kw
Packing list number
4
Packing speed
Single column Max. 35 packs/min
Packaging size
Length: 50-180mm width: 17-30mm
Film width
Maximum 280 mm
film thickness
0.05-0.1mm
Dimension
1385*918*2005mm
Weight
350kg
Materials
304 stainless steel
PENGLAI Manufactures Different kinds of packaging machines which can be categorized as below:
Penglai Filling Machines:https://www.penglaichina.com/product/fm/
Penglai Capping Machines: https://www.penglaichina.com/product/cm/
PenglaI Sealing Machines: https://www.penglaichina.com/product/sm/
Penglai Labeling Machines: https://www.penglaichina.com/product/lm/
Penglai Filling Bottling Line: https://www.penglaichina.com/product/...
Penglai Filling Sealing Line: https://www.penglaichina.com/product/...
Penglai Packing Machines: https://www.penglaichina.com/product/pm/
Penglai Processing Machines: https://www.penglaichina.com/product/bt/
Penglai Small Semi Automatic Machines:https://www.penglaichina.com/product/...
PenglaI Customized Machines:https://www.penglaichina.com/product/ae/

Customers reference for finding who in your land bought the PENGLAI-buillt Machines and What Machines purchased;
Nearly Every business transaction is recorded in
Penglai News pages: https://www.penglaichina.com/news/
(Notice: Due to the Large quantitiies of Orders placed by more than 2000 customers through the world so far; As the time goes by the number keeps increasing and boosting We try our best to refreshing the page to keep you posted).
HS code of the machines applied for packaging industry are listed regarding the custom clearance and importing tax.
HTS # 8422.30.9185 filling /sealing /packing machine (North American market)
84798210 Mixing machine
8422301090 Filling machine
8422303090 Labeling machine
8422309090 Sealing machine
8422400000 Packing machine
8422303090 Capping machine
8479.82.0040 food Mixing, kneading or stirring machine
