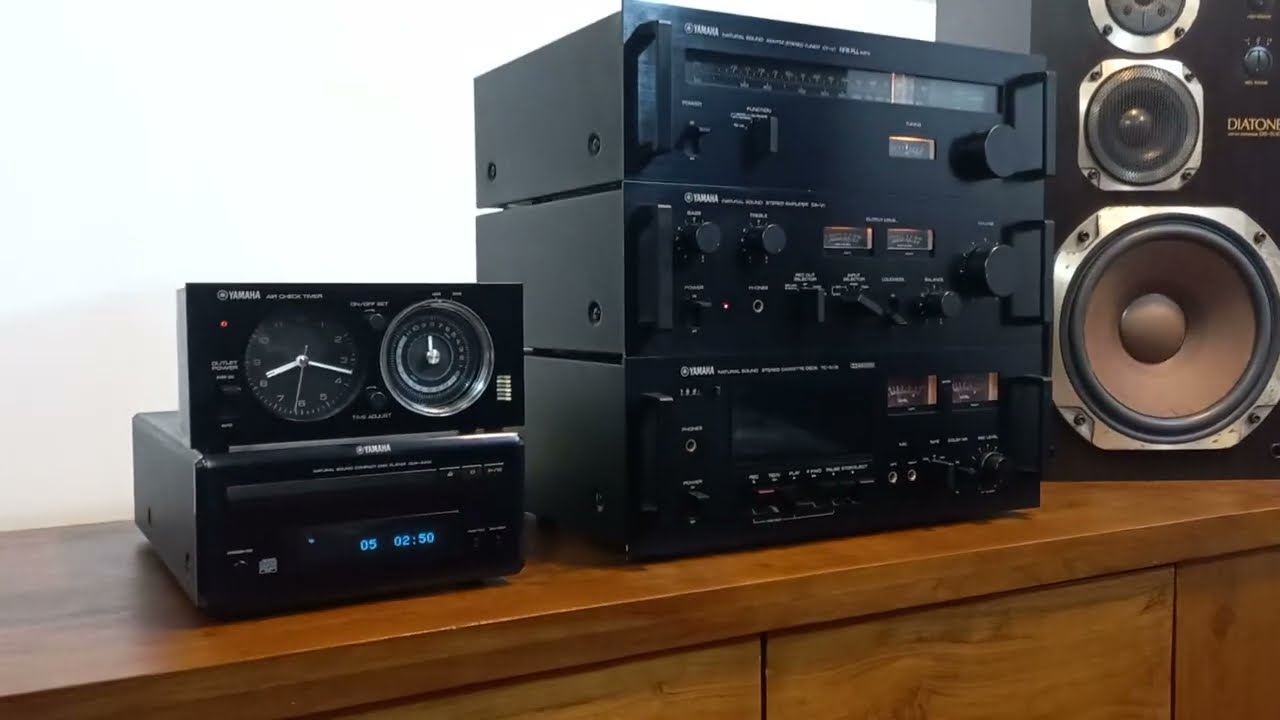

Скачать или смотреть YAMAHA Vintage Audio Setup - V1 series (CA-V1, CT-V1, TC-511B)

🚩 𝐘𝐀𝐌𝐀𝐇𝐀 𝓥𝓲𝓷𝓽𝓪𝓰𝓮 𝓒𝓸𝓶𝓹𝓵𝓮𝓽𝓮 𝓐𝓾𝓭𝓲𝓸 𝓢𝓮𝓽𝓾𝓹 - 𝐕𝟏 𝓼𝓮𝓻𝓲𝓮𝓼

𝐒𝐭𝐞𝐫𝐞𝐨 𝐈𝐧𝐭𝐞𝐠𝐫𝐚𝐭𝐞𝐝 𝐀𝐦𝐩𝐥𝐢𝐟𝐢𝐞𝐫: 𝐂𝐀-𝐕𝟏
Power output: 25 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.05%
Damping factor: 50
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 77dB (MM), 100dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω (minimum)
Dimensions: 435 x 137 x 340mm
Weight: 8kg
Made in Japan

𝐅𝐌 / 𝐀𝐌 𝐭𝐮𝐧𝐞𝐫: 𝐂𝐓-𝐕𝟏
FB-PLL-MPX stereo decoder.
Display instrument for field strength and ratio center, muting.
333Hz level oscillator for tape recordings.
Dimensions: 435 x 137 x 350 mm
Weight: 5.7 kg
Made in Japan

𝐒𝐭𝐞𝐫𝐞𝐨 𝐂𝐚𝐬𝐬𝐞𝐭𝐭𝐞 𝐃𝐞𝐜𝐤: 𝐓𝐂-𝟓𝟏𝟏𝐁
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed cm/s.: 4.8 cm/s.
Tape Speed ips: 1-7/8 ips
Wow and Flutter: 0.2 (WRMS)
Frequency Response Normal: 30-13.000 HZ
Frequency Response FeCr: 30-13.000 HZ
Frequency Response CrO2: 30-15.000 HZ
Noise Reduction: Dolby B
Dimensions: 435 x 160 x 334mm
Weight: 8.5kg
Made in Japan

𝐀𝐢𝐫 𝐂𝐡𝐞𝐜𝐤 𝐓𝐢𝐦𝐞𝐫: 𝐀𝐓-𝟏
𝐂𝐃 𝐏𝐥𝐚𝐲𝐞𝐫: 𝐂𝐃𝐗-𝐄𝟒𝟏𝟎
