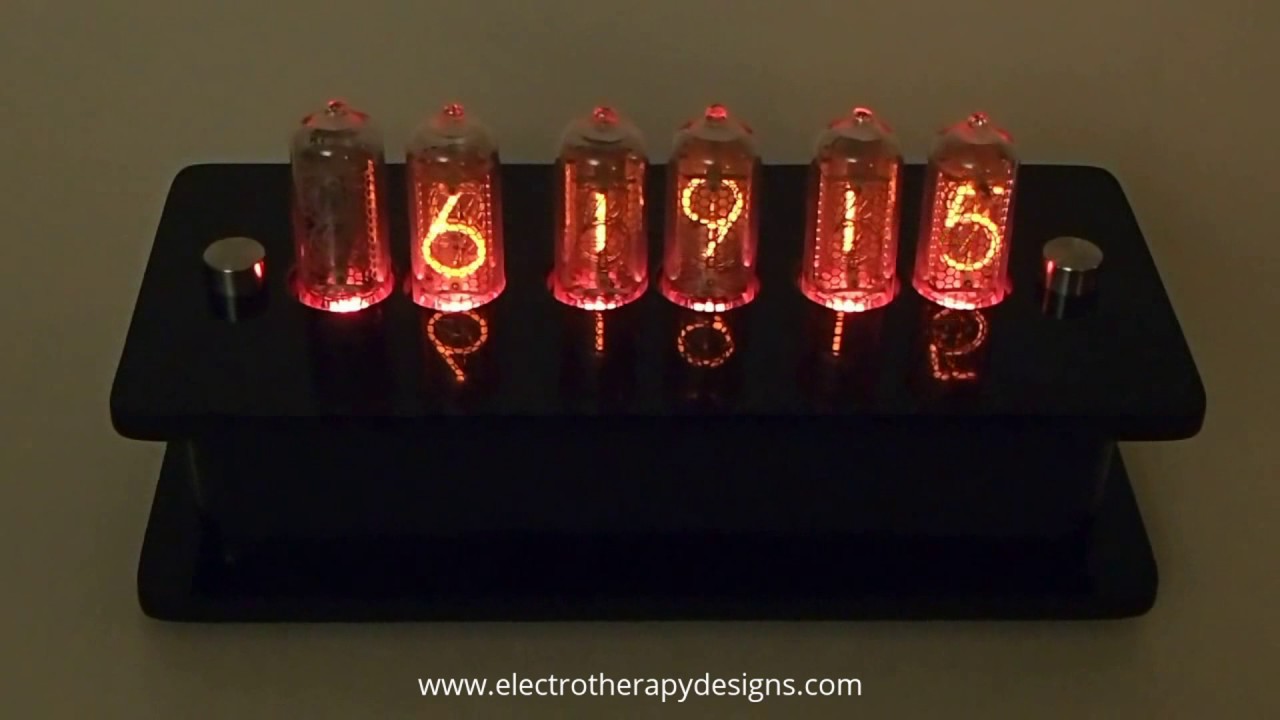

Скачать или смотреть 6-Digit IN-8-2 QTC Nixie Clock - GPS Option

This clock and others like it are available here on my Etsy site:

https://www.etsy.com/shop/Electrotherapy

Free 2-3 day priority mail shipping, tracking, and insurance within the U.S.!

You can see this IN-8-2 Nixie Clock in action here on YouTube:    • Six-Digit IN-8-2 Nixie Clock

What is a Nixie? - Find out here: http://en.wikipedia.org/wiki/Nixie_tube

With Nixie QTC (‘Quick Tube Change’), each tube is soldered to its own mini ‘tube cell’ PCB. A tube can be changed in minutes with no danger to the main PCB. A single main board is capable of driving tens of different types of Nixie Tubes. You can even completely change the tube type of your clock by installing new tube cells and tubes.

Includes GPS synchronization option - (GPS unit sold separately) and timecode/date matched tubes!

IN-8-2 Nixie tubes are almost identical in size to IN-14 tubes, however the IN-8-2 tubes have an actual "5" digit, where the IN-14 tubes have and upside down "2" digit in the place of a "5" (see product image).

The case was built and assembled using professional grade equipment. The acrylic has been meticulously edged polished by hand to provide a brilliant shine. There are no visible seams around the acrylic body (front, back, and sides) of the case, as the acrylic has been bent in front and the seams are hidden in the back using a proprietary process. The PCB board was soldered by hand and assembled with the case. This IN-8-2 clock features a black shiny case, however other case color options are available. If you would like a different case color, please contact me and allow two weeks for processing and delivery.

This QTC Nixie clock uses NOS (new old stock) IN-8-2 Nixie tubes. NOS means that they are the original Russian old stock Nixie tubes and have never been used. These tubes are very rare because they have been out of production for several decades and supplies are very scarce. The typical lifespan of a clock tube is roughly 7-10 years of continuous use. However, because of the QTC technology tubes are easily replaced and the clock can last well beyond 10 years.

The IN-8-2 Nixie QTC has the following features:
NOS, Datecode matched tubes
Hours, Minutes and Seconds display
12 or 24 hour modes
Uses a Quartz Crystal Oscillator as the timebase
Programmable leading zero blanking
Date display in either DD.MM.YY or MM.DD.YY or YY.MM.DD format
Programmable date display each minute
Scrolling display of date or standard display
Alarm, with programmable snooze period
Optional GPS synchronization with status indicator LED (not included)
Dedicated DST button to switch between DST and standard time
Supercapacitor backup. Keeps time during short power outages
Simple time setting using two buttons
Programmable leading zero blanking
Seconds can be reset to zero to precisely the set time
Programmable night mode - blanked or dimmed display to save tubes or prevent sleep disturbance
Rear Indicator LEDs dim at night to prevent sleep disturbance
Weekday aware ‘Master Blank’ function to turn off tubes on weekends or during working hours
Standard or fading change of digits
Standard, fading, or fading with scrollback display modes
‘Slot Machine’ Cathode poisoning prevention routine
Programmable RGB tube lighting – select favorite color palette. 729 colors possible. Have a different color or your choosing every hour, or auto changing colors every hour.
All user preferences stored to non-volatile memory
12V DC power supply with 6 foot cord included
User Manual
Full Electrotherapy Designs technical support
6 month warranty

To clean the acrylic case - use a damp microfiber or soft cloth to GENTLY clean. NEVER USE PAPER BASED products to clean the case. To avoid potential scratches, avoid handling the case as much as possible. Light scratches can be polished away by using a plastic polish available at most automotive stores or using Novus plastic polish.

SAFETY NOTICE for Clocks and Other Electronics Purchases - assembled clocks and electronics must be kept properly ENCASED to prevent contact with high voltage, which could result in SERIOUS injury.

IN-8-2 Nixie Tube Measurements (approximate):
Tube Height: 2.0"
Tube Width: .7"
Digit Height: .7"
Digit Width: .4"

Case Dimensions: 8" width x 2.25" height (4" height with tube) x 3.5" depth

Approx Weight: 1 lb.
