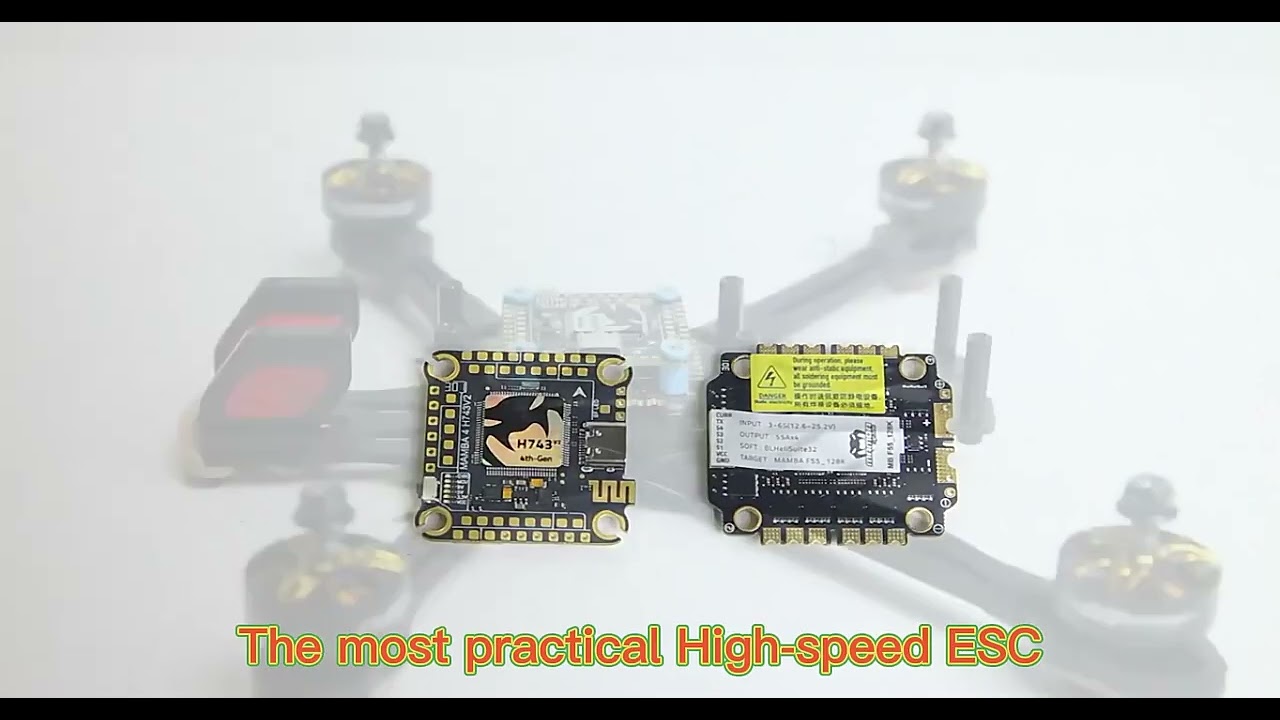

Diatone Mamba F405 MK2 Stack Flight Controller supports connecting to the IFlight chimera 7 inch FPV System drones accessories
MAMBA F405MK2 V2 Flight Controller ICM42688P
MOUNTING: 30.5mm/M3
MCU: 168MHz STM32F405
ESC Soft: Dshot300/600
GYRO: ICM-42688-P
ESC Telemetry: Yes
Target：FURYF4OSD
Power Led: Yes
OSD: Yes
LED Controller:BF LED
Blacbox: 16M Flash Memory
AIR UNIT Port: Yes
Barometer: No
WIFI: No
Uarts: 3 Set
VTX Switch: No
I2C: Yes
Receiver Protection: Yes
F.Port: No
BEC Protection: Yes
RSSI: Yes
TVS Protection: Yes
Buzzer Pad: Yes
BEC:3.3V 0.5A& 5V 3A& 9V 3A
CURR Pad: Yes
Input: 3~6S Lipo (12.6~25.2V)
ESC Signal: 4 Set
Mounting size: 30.5mm/M3
ESC Specifications
MAMBA F50_BLS
MAMBA F40MK2
Input voltage: 3~6S Lipo (12.6V~25.2V)
Input voltage: 3~6S Lipo (12.6V~25.2V)
Continue current:50A×4
Continue current:40A×4
Burst current 50A (10S)
Burst current 50A (10S)
BEC: No
BEC: No
Target：BLHeli_S CH40
Target：BLHeli_S CH40
SOFT: Dshot300/600
SOFT: Dshot300/600
TVS Protection: No
TVS Protection: No
MOUNTING: 30.5mm/M3
