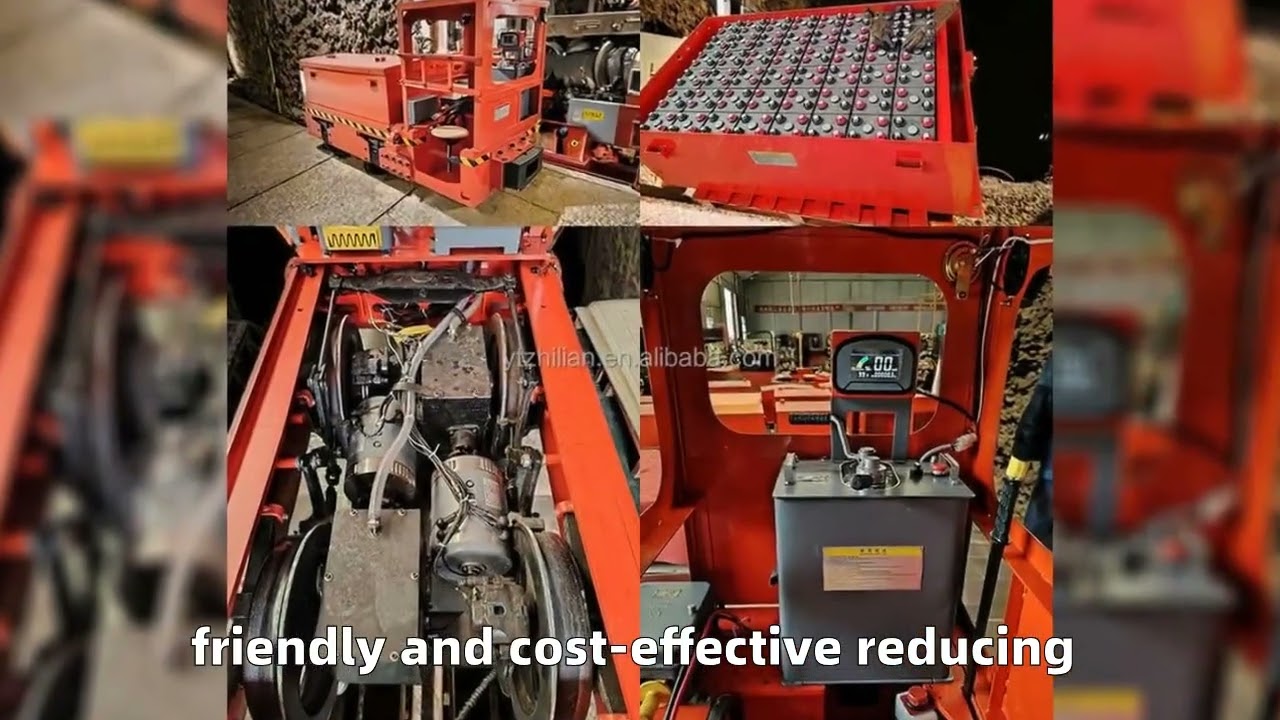

Скачать или смотреть Battery Locomotive for Narrowgague Mining Industry

https://ytzhilian.en.alibaba.com/?spm=a270...
CTY5/6GB Battery Locomotive: Technical Data Sheet
No Item Data
01 Dimensions (LWH) 2950 (1660)*960*1550
02 Weight 5 tons
03 Trac Gauge 600 mm
04 Wheel Base 950 mm
05 Wheel Diameter 520 mm
06 Minimum Radius of Curvature 6 m
07 Speed Adjustment Mode Chopped wave speed regulating / Resistance speed control
08 Total Motor Power 15 kW (7.5 kW * 2)
09 Brake Mode Two-axis four-wheel hydraulic disc brake with self-locking (hand pull)
10 Maximum Drawbar Pull 12.26 KN
11 Tractive Effort at Hourly Rating 7.26 KN
12 Speed 5.8 km/h
13 Deceleration Mode Three-stage taper—helical gear reduction
14 Reduction Ratio 1:25
15 Battery Type Lead-acid batteries for mining
16 Battery capacity 385 AH
17 Battery Quantity 48 * 2V
18 Battery Voltage 96V
