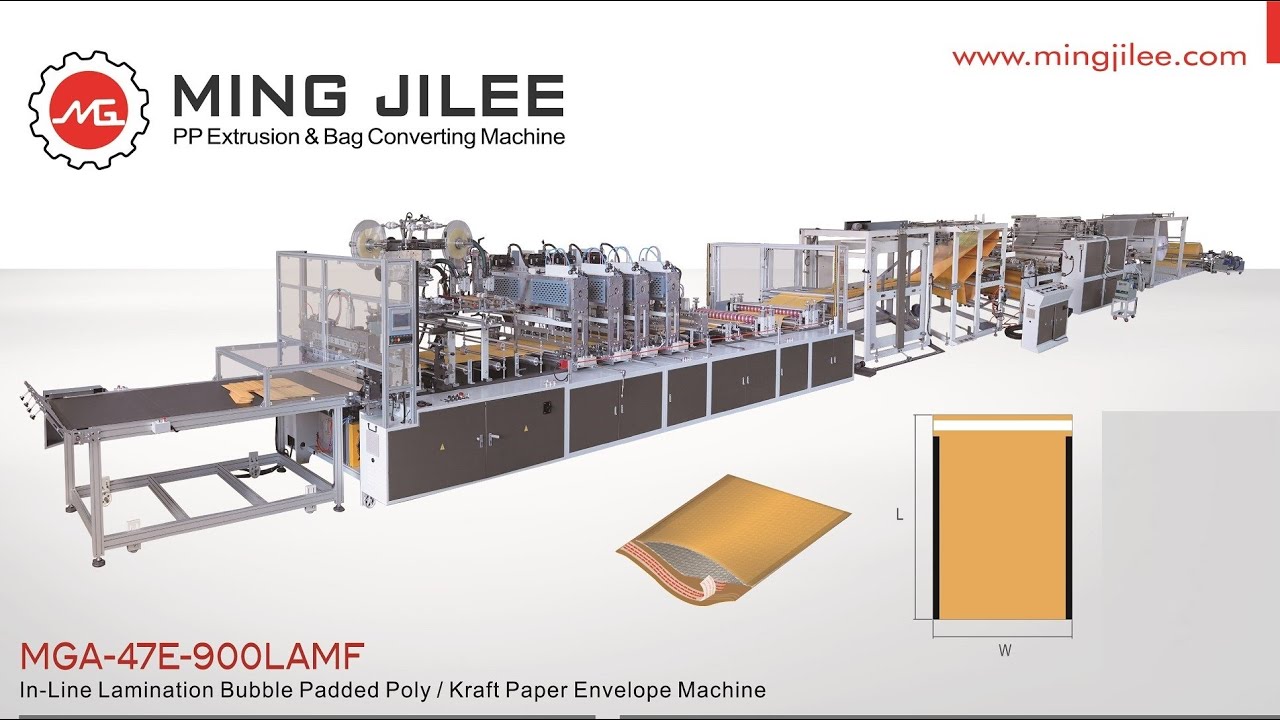

Kraft Paper / PE Poly Bubble Mailer Making Machine, MGA-47E-900LAMF

MING JILEE: PP Extrusion Line and Bag Converting Machine Since 1987
Made In Taiwan, Best Quality and Global Support
Website: https://www.mingjilee.com/
E-mail: [email protected]
Whatsapp: +886 934 081 955
Complete Address: No.76-8, Ming-Ho, Ming-Ho Vil., Shan-Shang Dist., Tainan City, 74342, Taiwan

MGA-47E-900LAMF, Kraft Paper / PE Poly Bubble Mailer Making Machine is best design to produce Kraft paper / Courier PE Bubble Mailer. You just need to prepare separate material from Kraft Paper, Co-extruded LDPE film and Air Bubble Film, then you will get the perfect PE Courier & Kraft Paper Bubble Mailer.

1. General Machine Specifications:
(1) Machine Dimension : 26,000 (L) × 2,450 (W) × 2,200 (H) mm
(2) Complete Machine Weight : 15,400 kg
(3) Required Container : 3 sets of 40HQ
(4) Machine Installed Power : 125 A
(5) Required Power : 22 kw in 480V and 48kw in 220V, 3 phase

2. Machine performance
(1) Finished product Bubble Mailer
a. LDPE Poly Bubble envelope with 2 side sealed and bottom is folded
b. Kraft Paper Bubble envelope with 2 side sealed and bottom is folded
(2) Feed Material
a. External feeding material
a-1. Co-Ex LDPE: 0.05 - 0.1 mm
a-2. Paper with PE lamination: 50 - 120 G.S.M
b. Air Bubble Film : 2 or 3 layer air bubble with paper core
(3) Effective size range
Single line production:
L: 250 - 530 mm (including lip)
W: 120 - 420 mm (open width)
Twins lines production:
L: 200 - 400 mm (including lip)
W: 120 - 420 mm (open width)
(4) Output (Depend on size and quality of material)
a. Regular speed model : 25 - 50 cycle /min
b. High speed model (option) : 50 - 95 cycle /min
Machine Features
(1) Air Bubble quick change: Due to the shorter length of air bubble, we design the quick change device to reach non-stop production for saving the waste because of the changing material.
(2) Best Lamination quality: Kraft Paper / PE Poly Bubble Mailer Making Machine is installed European brand lamination system to do in-line lamination for Kraft paper with air bubble film or LDPE with air bubble film. With special design, we won’t break the air bubble after laminating processing.
(3) Strongest edge Sealing Seam: The transversal sealing seam of Kraft Paper / PE Poly Bubble Mailer Making Machine is controlled by motor, with mechanical driven system, it makes sure the operator to get the higher pressure and best sealing quality
(4) In-line hot melt glue system: MING JILEE only choose the global and premium suppliers to install the hot melt system on MING JILEE Kraft Paper / PE Poly Bubble Mailer Making Machine. it gets perfect glue control to reach intermittence glue or continuous glue function
(5) Synchronizing length control: Kraft Paper / PE Poly Bubble Mailer Making Machine is equipped many servo motors to Synchronize the length supply. With special belt system, we can feed the precise length to cut the exact setting size without any slippery of material.
(6) Multi-function auto conveyor: with serval quantity setting, to get special stacking as operator’s favorite way. It helps operators to take already counter mailer for last packing purpose.


For Further information about In-Line Lamination PE Poly & Kraft Paper Bubble Mailer Machine
https://www.mingjilee.com/en/product/...
