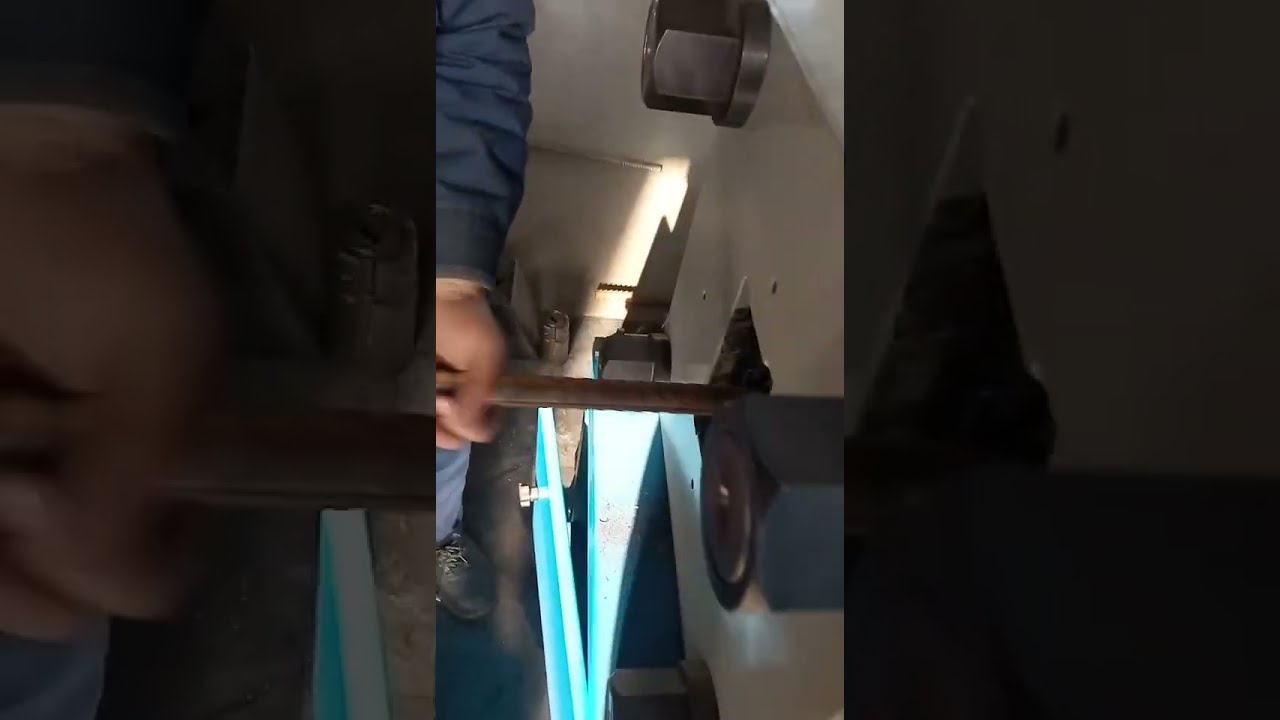

Rebar Cold Enlarge Machine Rebar end head upsetting machine
Product Description:
Four Steps Manufacturing Process:
1) Cutting off the end of rebar;
2) Enlarging the end of rebars by upsetting;
3) Making parallel threads;
4) Splicing rebars by coupler.

Technical Parameters:
BSB6 HYDRAULIC OIL PUMP
Rated pressure: 35Mpa;
Rated flow: 6.0L/min;
Motor Power: 4.0kw;
Voltage: 380V-50Hz or customized;
Overall weight:89kg;
Dimension:460*460*640mm;

LD1800 UPSETTING MACHINE
Diameter of rebar：16-40mm;
Rated working strength:1800kn;
Voltage: 380V-50Hz or customized;
Overall weight:625kg;
Dimension:810*6410*410mm;

QTL-40 THREADING MACHINE
Diameter of Rebar: 16 - 40 mm;
Rated power: 4kw;
Reducer Ratio: 1:35;
Voltage: 380V-50Hz or customized;
Overall weight:484kg;
Dimension: 1170*710*1140mm;

Technical Advantages:
1) High splice strength, which could exert ultimate tensile and compression strength of rebar, it could satisfy the requirements stipulated in the Chinese standard JGJ107, American standard UBC1997, British standard BS8110, French Standard NF35-20-1, German standard DIN1045, ISO15835 and other requirements in the relevant standards;
2) Easy to operate and maintain, no need for technicians, fast splicing on construction site;
3) Several types of splices, which could be suitable for rebar splicing when the rebar cage or the bending rebar is used;
4) High production efficiency, it only takes less than 1 minute to upset and make one thread on the site;
5) High adaptability, the splicing could be conducted when the power is off, or under water, or at super high position, or windy, rainy and snowy weather.
6) Environment-friendly, material-effective.
7) Inexpensive to purchase, maintain and repair.
8) The Splices could be produced in advance without influencing the construction period.
9) Full-Tension splice, bar break under tensile tests.
10) Manufactured under strict quality assurance plan ISO 9001.
