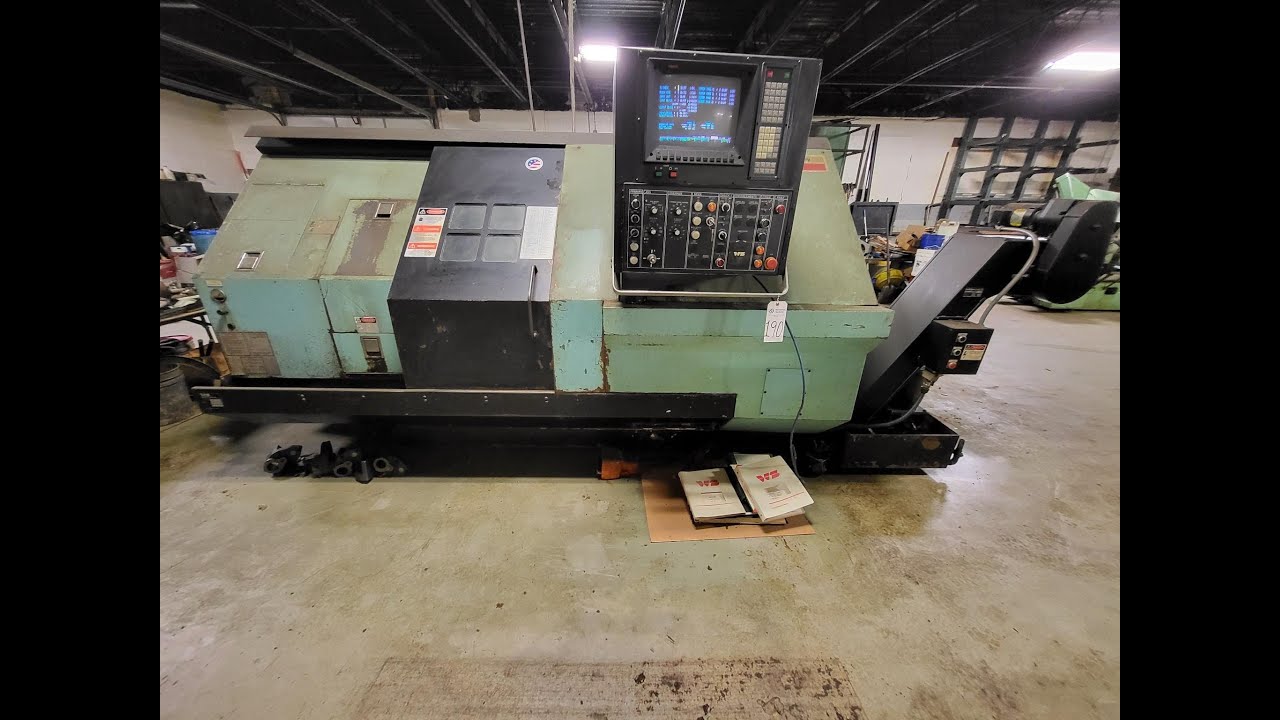

Скачать или смотреть CNC Machinery from Two Tri-State Area Machine Shops Lot 190-W&S 6166 TITAN SMALL SLANT BED CNC LATHE

W&S 6166 TITAN 4 AXIS SMALL SLANT BED CNC LATHE
SN: 3320165
SPECIFICATIONS

CAPACITY
CHUCK SIZE- NOMINAL DIA: 12"
TURNING DIA . MAX. NOMINAL
UPPER TURRET: 10-1/2"
LOWER TURRET: 9"
TURNING LENGTH, MAX. BETWEEN CENTERS: 20"
ROUND BAR CAPACITY: 3"
BAR LENGTH MAX WITHOUT BAR FEED: 48"
SWING CLEARANCE, DIA.
SWING OVER WAYCOVER: 20-3/4"
SWING OVER CARRIAGES: 13-1/2"
OVER ADJACENT STATIONS TOOLS: 10.8"
SPINDLE
SPINDLE NOSE: 8" "A-2"
HOLE THRU SPINDLE: 3.5"
SPINDLE DRIVE
DRIVE TYPE: AC SPINDLE
SPINDLE SPEED RANGE: 40-4000 RPM
MOTOR HP OVER HP SPEED RANGE
30 MIN RATING: 30HP
CONTINUOUS RATING: 22HP
CONSTANT HP SPEED RANGE: 500-4000 RPM
FEED DRIVES
DRIVE TYPE: AC BRUSHLESS
PROGRAMMABLE STROKES
X-AXIS
UPPER SLIDE: 5.5"
LOWER SLIDE: 4.7"
Z-AXIS: 22"
TURRET: 8 STATION
DIMENSIONS
LENGTH (LESS CHIP CONVEYOR): 184" ADDITIONAL LENGTH WITH CONVEYOR: 52"
DEPTH: 96"
HEIGHT: 69"
WEIGHT (LESS CONVEYOR): 21,800
