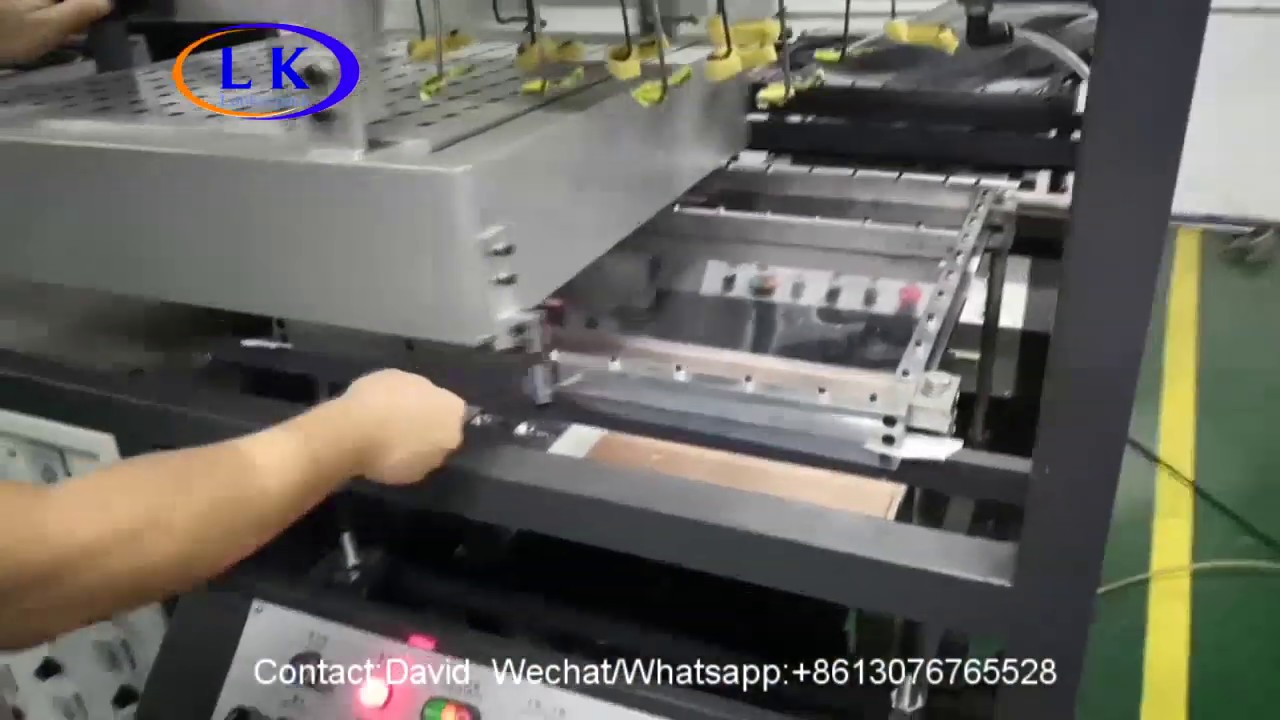

Скачать или смотреть Chocolate transferring print mold blister forming machine

Application：
Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, the machine furnace produce heat to soften the plastic sheet, then vacuum pump sucks the plastic sheet down to the forming mould area to finish the forming, different forming mould enable to have different forming shape. This machine is ideal for the sample making purpose and small quantity order production.

Features,
1. 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
2. 25pcs Solid state voltage regulators, control heating boards simple and visualized.
3. Large-scale cooling fan which can cool the products quickly.
4. Water-spray cooling system which suit for thick material.(optional)
5. Manual style and Semi-auto style available.
6. Button or pedal control available, Improve production efficiency.

Parameters：
Model--------LK-61
Power supply--------AC380V
Power--------12.5KW
Max.forming size--------560*610mm
Max. forming height--------200mm
Speed--------200~300moulds/H
Thickness of material--------0.2~1.5mm
Machine size--------1800*1200 *2000mm
N. weight--------500KG
