for rotating machinery system, crossbelt conveyor and very hazardous environment are the main application of ROPE PULL EMERGENCY STOP SWITCH.
#lhs #amron #emergecystop

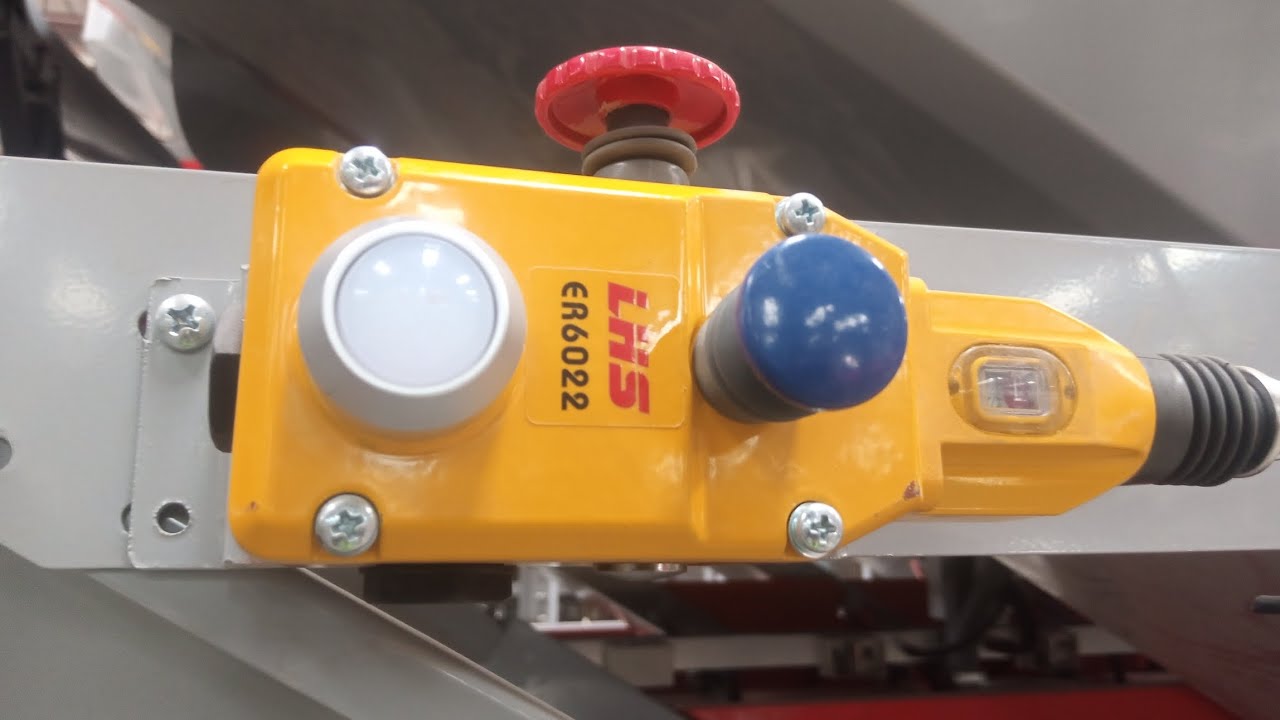

Rope Pull Emergency Stop Switch
•Rope spans up to 80 m (262 ft.) means fewer number of switches required perapplication
•Tension indicator makes system setup and rope tension maintenance easy
•Contact arrangements of 2 N/C + 1 N/O, 3 N/C + 1 N/O or 2 N/C + 2 N/O
•IP67 (NEMA 6) enclosure enables the ER6022 switch to withstand waterwashdown cleaning
•Reset button—the blue reset button must be pushed in order to return to“machine run” condition following switch actuation by a pulled or slacked rope
•Indicator beacon—the optional dual indicator beacon, available in 24 VDCor 120 VAC, can be wired to flash red to indicate a tripped switch or glow aconstant green to indicate a properly reset switch
•E-stop button—the ER6022 has two mounting positions where the optionalE-stop button may be installed; the E-stop button may be added or replaced inthe field
•Rubber bellows contain UV inhibitor making the switches suitable for outdoorapplications
