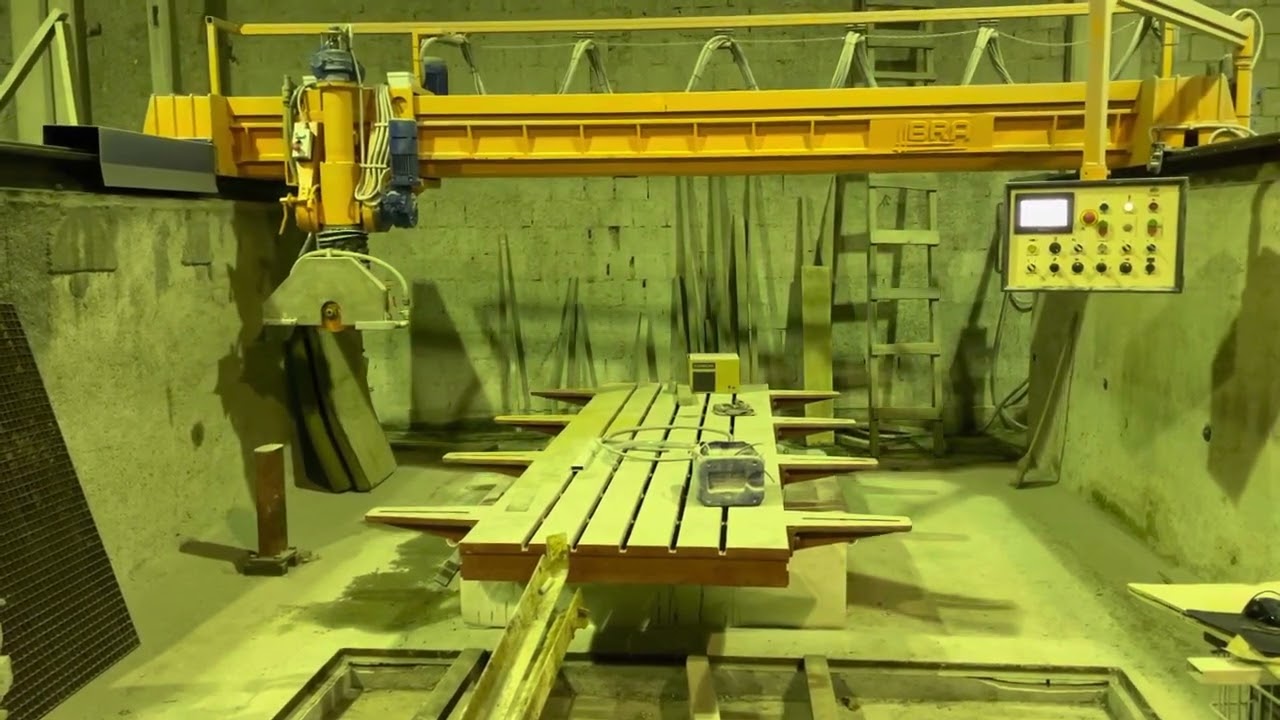

Скачать или смотреть Stone saw cutting 4 axis NC PTP using Beckhoff and one Danfoss IMC

Machine is retrofitted to the completely new system using Beckhoff and Danfoss IMC over EtherCAT. This system clearly show that we are able to numerically control 4 axis using just one Danfoss drive.

Equipment used
PLC: Beckhoff CX8190 series PLC with EtherCAT Bus and various E-Bus terminals
HMI: cMTx series
Drive: Danfoss FC302 drive with EterCAT and IMC option

Every axis have incremental encoder for the most precise control. Whole custom logic is made in TwinCAT 3. Thanks to the high speed of the EtherCAT communication between Beckhoff PLC and Danfoss IMC drive system the system can be made like it is demonstrated.

This video is made by ET Industrijska Elektronika
Website: www.et-elektronika.hr
