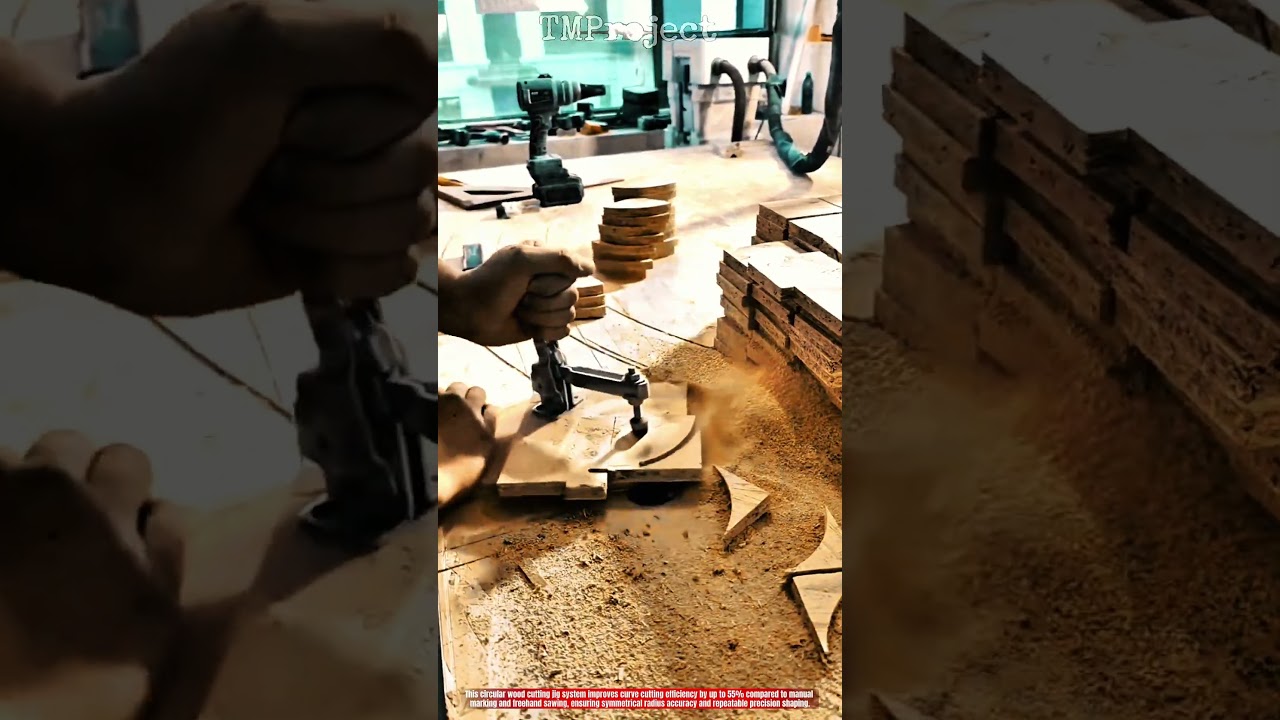

Innovative Circular Wood Cutting Jig System: Best Precision Curve Shaping Process

Technical Specifications
Pivot-based circular cutting jig frame
Adjustable radius guide arm system
Manual locking clamp mechanism
Solid plywood base platform
Central rotation axis alignment hole

Tool Mechanism
Pivot axis fixes the center point of rotation
Adjustable guide arm defines cutting radius
Locking clamp secures wood blank firmly
Router or cutting bit rotates beneath work surface

How It Works
1. The wood piece is secured onto the jig platform using the locking clamp system.
2. The pivot pin is inserted into the center axis hole to define the circular rotation path.
3. The operator rotates the wood steadily against the router bit, forming a precise circular shape.

Advantages
Ensures consistent and repeatable circular dimensions
Reduces layout errors and manual measuring time
Produces smoother and more symmetrical curved edges

Disadvantages
Limited to predefined radius range
Requires careful alignment before cutting
Manual rotation still depends on operator control
