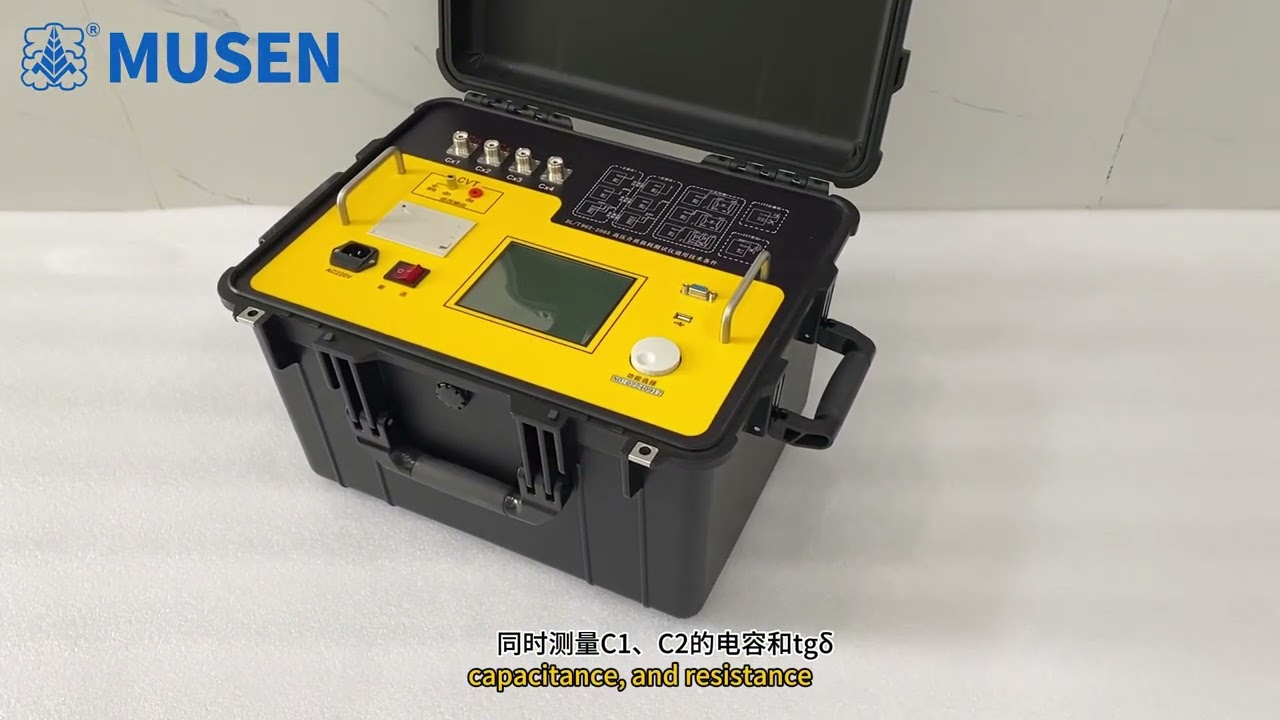

Скачать или смотреть MS 101G3Anti interference dielectric loss tester

1. Features self-excitation testing for CVTs, allowing simultaneous measurement of C1 and C2 capacitance and tanδ with a single connection.
2. Includes reverse connection low-voltage shielding and high-voltage shielding functions, enabling non-disassembly 10kV reverse connection dielectric loss measurement of C11 even when the CVT busbar is grounded.
3. Offers measurement functions for externally applied voltage and externally added CN.
4. Includes CVT transformation ratio measurement function, suitable for 35-500kV class CVT devices.
5. Features multi-channel simultaneous measurement, allowing simultaneous testing of dielectric loss values ​​for four test samples.
6. Includes insulation resistance testing function, enabling measurement of polarization index, absorption ratio, and insulation resistance.
7. Features automatic LCR measurement function, allowing measurement of inductance, capacitance, and resistance.
