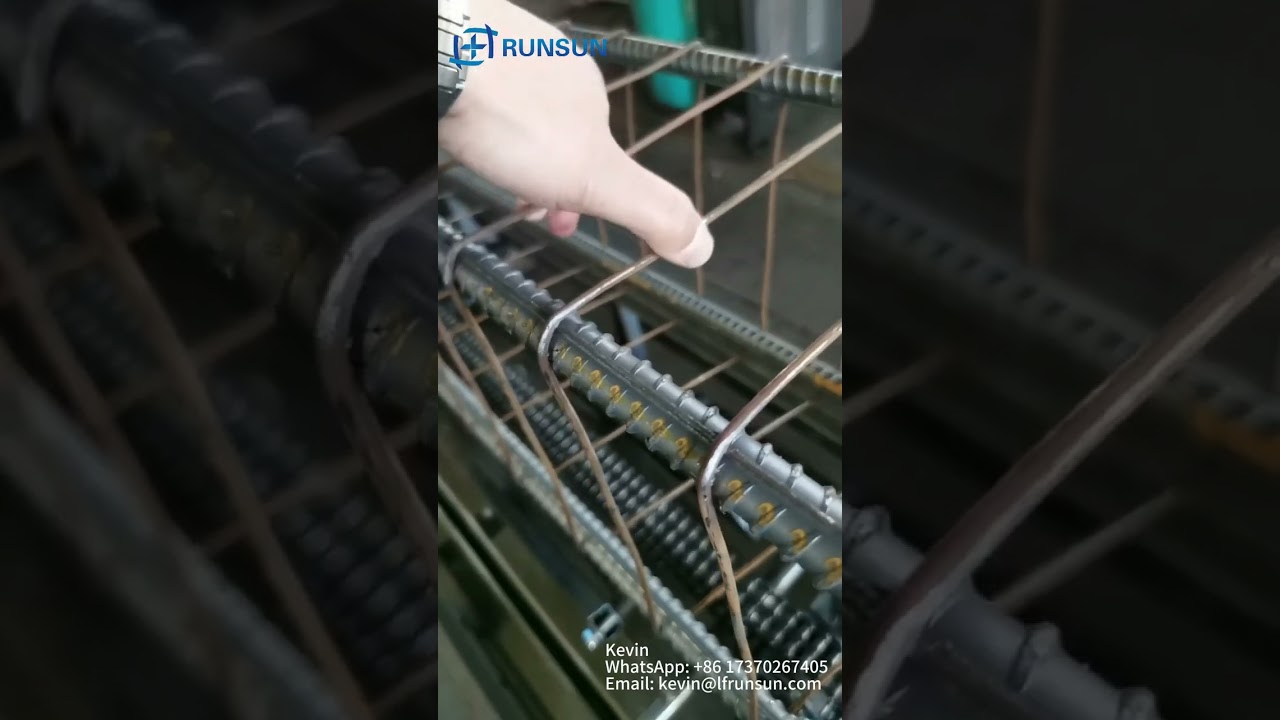

Скачать или смотреть High Quality Automatic Pc bar Rebar Steel Pile Cage Welding Machine Check Welding Quality

Please contact me for more information:
Langfang Runsun Intelligent Technology Co., Ltd
Overseas Sales Director: Kevin Yang
Mobile (Whatsapp, Wechat, Viber): +86 17370267405
Email: [email protected]

Automatic concrete pile rebar cage welding machine is a special-purpose welder used to produce high-strength concrete pipe pile reinforcement cages. The welder is widely applied to reinforcement cage welding by the self-stressing and prestressing pretensioning method and the post-tensioning method.

Technical Specifications:
Diameter of Cage: ø250-ø1400 ( as users request)
Such as: ø 190, ø 230, ø 270, ø 310, ø 350 series
Length of Cage: 4-18m or customized
Number of Longitudinal Wire: 6, 7, 10, 12, 14, etc
Diameter of Longitudinal Wire: ø7.1, ø9.0, ø10.7, ø12.6mm or customized
Diameter of Spiral Wire: ø4- ø8
Longitudinal Wire Max Dia.: 28 mm
Spiral Wire Max. Diameter: 8 mm
Cage pitch: 0-100mm
Driving power: 8.4KW-15.2KW
Welding power: 200KVA-300KVA
Controller: NC controller
Warranty: 12 months
Voltage 3Phase 380V, 50Hz or Customized

Product Advantages:
1. Host speed up to 43 r/min, is three times as much as the current domestic similar equipment.
2. Failure rate is extremely low, is 1/20 of the similar products.
3. High weld strength, unlike similar products have a very serious phenomenon of reinforcement.
4. Can cage welding square body, the function, can save factory in hooped cost USD2000-3000
5. Welding copper head loss was only about 1/30 of the similar products.
6. l general, manufacturers use our products to meet the production requirements, compared with similar products, to save labor costs RMB 100000 per year, and energy costs about USD2000-3000.
7. Using this product than using similar equipment can save USD30000-50000.
