Introducing the High Speed Plane rotary labeling machine Controlled by PLC by Sinoped provide high-speed, efficiency, and compliance with GMP standards.

✅ Key Features：

The labeling machine is equipped with super-large-scale-integration, micro-computer control device and touch screen in Chinese to realize man computer conversation. A variety of data can be input by the touch screen and the running of the labeling machine can be controlled fully after the machine start-up by the micro-computer.
Type SN-100 labeling machine for round bottle is one of updated products of our company. It has a simple and reasonable structure, which is easy to operate. The production capacity shall be adjusted steplessly according to different sizes and characteristics of the bottles and the label papers. It can be applied to the various bottles for food, medicine and cosmetics, etc. Whether it is single or double sided labeling, transparent or nontransparent self-adhesive label for case bottles and flat bottles or other containers will certainly satisfy the customers.



Main specifications and technical parameter
1. Labelling speed：from 40 to 150 pieces per minute(according to the different target object and the length of the labels）
2. Outer diameter of bottles：15 - 100mm；Bottle height: 20 - 150mm
3. Applicable range for the labels: Length range: 23 - 200 mm, Height range: 15 - 120 mm
4. Motor power：600W；Voltage：220V 50 to 60HZ
5. Overall dimension：2000mm×850mm×1350mm Weight:250Kg
6. Conveying direction：from left to right or in the opposite direction


Operating condition and environment
1、The specifications of the labeling roll is not more than 300 mm in diameter with maximum 90 mm in width and 75 mm in diameter for the hole.
2、Working temperature：5 to 35℃
3、Working humidity：30% to 80% RH
4、Working environment：no flammable, explosive gas or powder dust.


Main structure
It is composed of feeding mechanism, machine frame, upper pressing and bottle adjusting parts, front and back mainframe and electric control parts.

Configuration and working principle for the control system
1、Configuration and function for the control system：
Configuration：

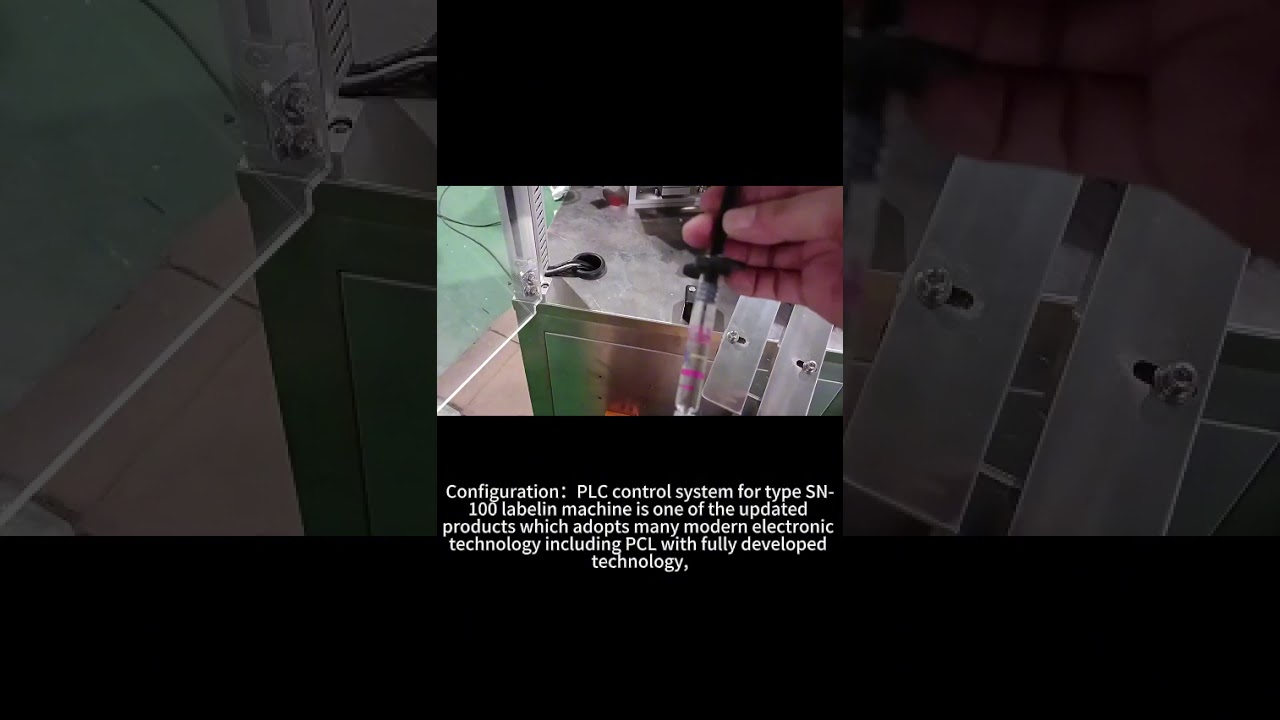

PLC control system for type SN-100 labeling machine is one of the updated products which adopts many modern electronic technology including PCL with fully developed technology, high-speed D / A conversion, photoelectric detection, high resolution lattice LCD, touch screen control etc. It is designed with the company’s many years experience in the research and develoSNent of the labeling machines. The controller consists of the microcomputer control (the touch screen, the system control panel and interface board), the signal transducer (the diffuse reflection type photoelectric sensor and the opposite type photoelectric sensor), the servo motor and drive parts(servo motor and servo motor drive), the power supply regulating part (power transformer and power supply board).T Being reliable and stable, the system is equipped with super-large-scale-integration and high quality imported components to label the bottles at high speed. The controller is developed based on the foundation of the conventional LCD controller. Compared with LCD controller, it is featured with the function of the man-machine interface and graphic display and reminder in Chinese so as to be controlled and operated more conveniently with humanized functions. Furthermore, the digital control function for adjustable speed motor has been added to it to start and stop the speed controlling for bottle separating, label rolling and bottle feeding so as to attain the goal of controlling the whole mechanics operation by the controller.
