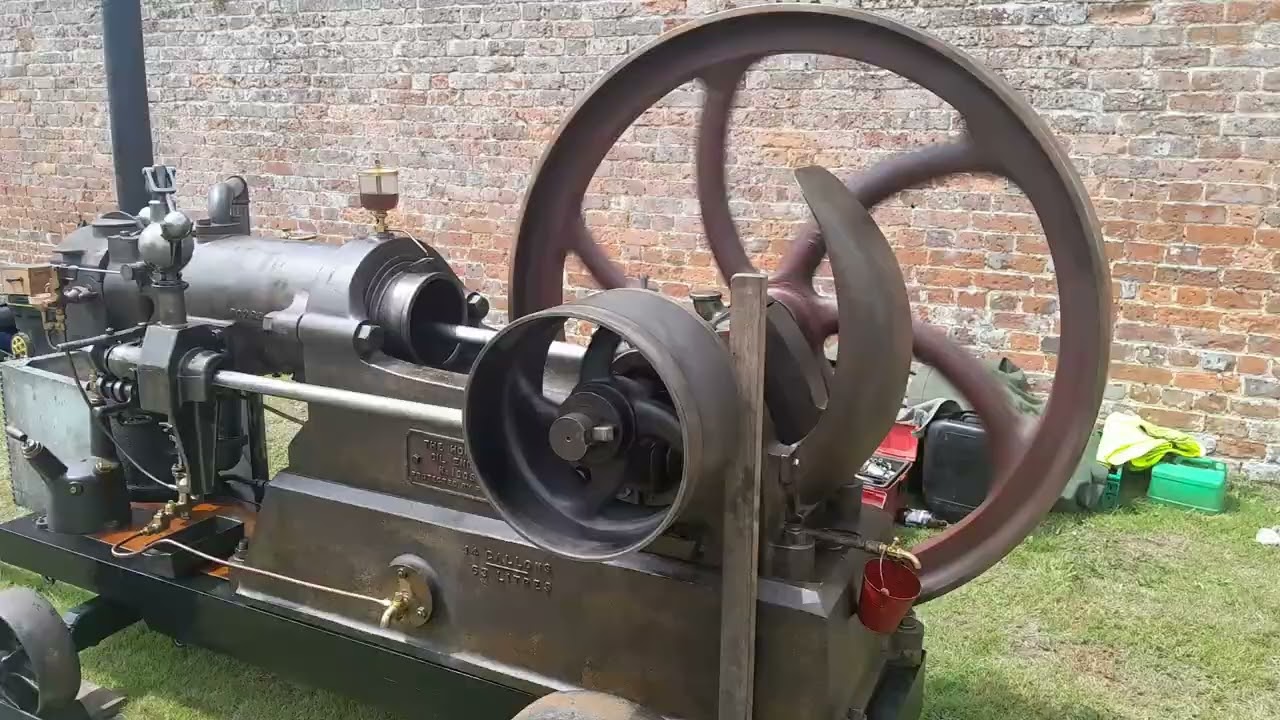

Hornsby Akroyd hot bulb oil engine of 1905 vintage seen here running at the Power and Machinery of the past down at Breamore House.
Originally ran a generator at a big house in Hythe, Kent, Before being restored in 2020.

The Hornsby-Akroyd oil engine, named after its inventor Herbert Akroyd Stuart and the manufacturer Richard Hornsby & Sons, was the first successful design of an internal combustion engine using heavy oil as a fuel. It was the first to use a separate vapourising combustion chamber, which are considered predecessors of the similar Diesel engine, developed a few years later.

Early internal combustion engines were quite successful running on gaseous and light petroleum fuels. However, due to the dangerous nature of petroleum and light petroleum fuel, legal restrictions were placed on their transportation and storage. Heavier petroleum fuels, such as kerosene, were quite prevalent, as they were used for lighting, but posed specific problems when used in internal combustion engines. Oil used for engine fuel must be turned to a vapour state and remain in that state during compression. Furthermore, the combustion of the fuel must be powerful, regular, and complete, to avoid deposits that will clog the valves and working parts of the engine.

Stuart's oil engine design was simple, reliable and economical. It had a comparatively low compression ratio, so that the temperature of the air compressed in the combustion chamber at the end of the compression stroke was not high enough to initiate combustion. Combustion instead took place in a separated combustion chamber, the "vapouriser" (also called the "hot bulb") mounted on the cylinder head, into which fuel was sprayed. It was connected to the cylinder by a narrow passage and was heated either by the cylinder's coolant or by exhaust gases while running; an external flame such as a blowtorch was used for starting. Self-ignition occurred from contact between the fuel-air mixture and the hot walls of the vapouriser.

By contracting the bulb to a very narrow neck where it attached to the cylinder, a high degree of turbulence was set up as the ignited gases flashed through the neck into the cylinder, where combustion was completed. As the engine's load increased, so did the temperature of the bulb, causing the ignition period to advance; to counteract pre-ignition, water was dripped into the air intake.

Akroyd-Stuart's engines were built from 26 June 1891 by Richard Hornsby & Sons in Grantham, a large manufacturer of steam engines and agricultural equipment, as the Hornsby Akroyd Patent Oil Engine under licence and were first sold commercially on 8 July 1892. Other engineering companies had been offered the option of manufacturing the engine, but they saw it as a threat to their business, and so declined the offer.
