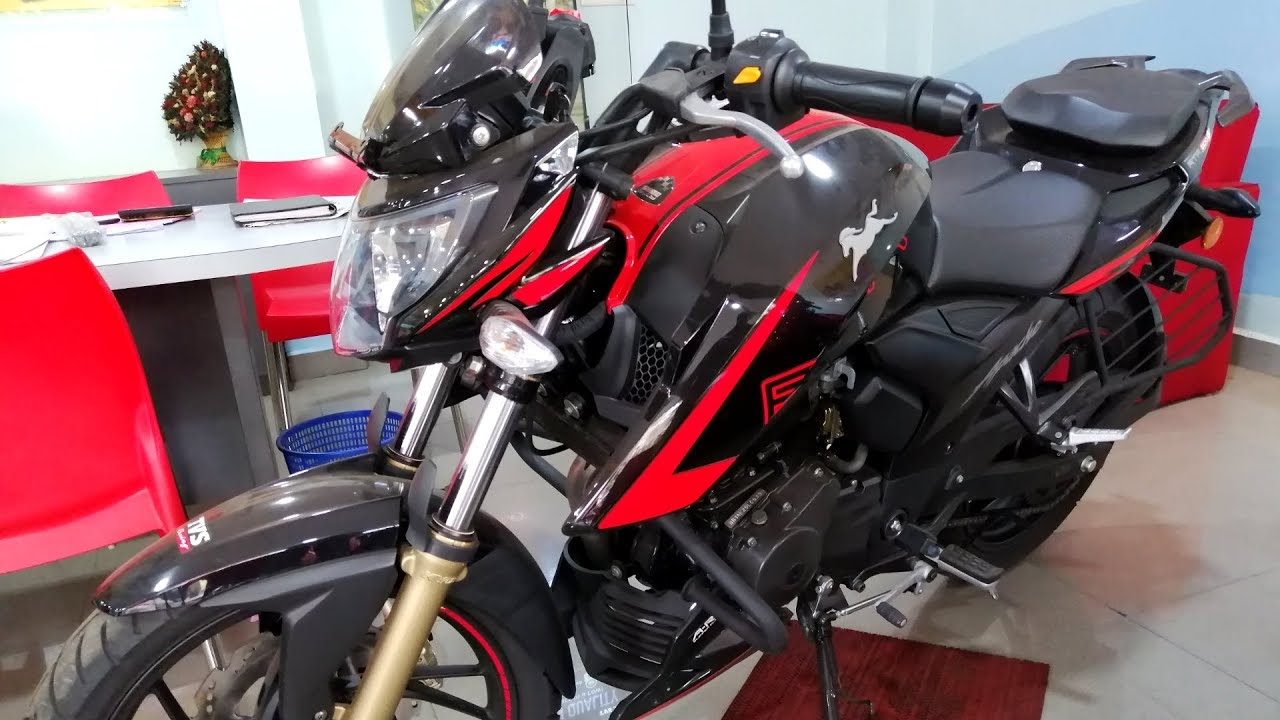

Скачать или смотреть TVS Apache RTR200 4V Race Edition

#TVSApacheRTR2004VRaceEdition
#ApacheRTR2004V
#TVSApacheRTR200

TVS Apache RTR 200 4V Race Edition 2.0 ABS Specifications

ENGINE SPECIFICATIONS
Engine Description 197.75cc, single cylinder, SI, 4 stroke, Oil Cooled
Fuel System Carburetted
Cooling Oil Cooler with Ram Air Assist
Displacement 197.75 cc
Maximum Power 20.5 HP @ 8500 rpm
Maximum Torque 18.1 NM @ 7000 rpm
Number of Cylinders 1
Ignition Mapped Ignition System
Compression Ratio 9.7 :1
Bore 66 mm
Stroke 57.8 mm
Air Filter Type Paper Filter
Idling Speed 1400 + 200 RPM
Carburettor KEIHIN CV
Valves Per Cylinder 4 Valves
Bore to Stroke Ratio 1.14

GEARBOX & CLUTCH
Number of Gears 5
Clutch Wet Multi Plate - 6 Plate Design
Gear Pattern 1-down, 4-up

DIMENSIONS & WEIGHT
Overall Length 2050 mm
Overall Width 790 mm
Overall Height 1105 mm
Ground Clearance 180 mm
Seat Height 800 mm
Wheelbase 1353 mm
Kerb/Wet Weight 149 kg
Fuel Tank Capacity 12 litres
Reserve Fuel Capacity 2.5 litres
Maximum Payload 130 kg

BRAKES & SAFETY
Front Brake 270mm Petal Disc
Rear Brake 240mm Petal Disc
Brake Fluid DOT 3/DOT 4
ABS Dual-Channel ABS with RLP Control (rear liftoff protection)

SUSPENSION & WHEEL TRAVEL
Front Suspension Telescopic Forks
Rear Suspension Mono Tube - Monoshock

TYRE SIZE & WHEELS
Front Tyre 90/90 R17 (Pirelli)
Rear Tyre 130/70 R17 (Pirelli)
Front Wheel 1.85 x 17-inch
Rear Wheel 3.50 x 17-inch
Wheel Type Alloy Wheels (10-Spoke)
