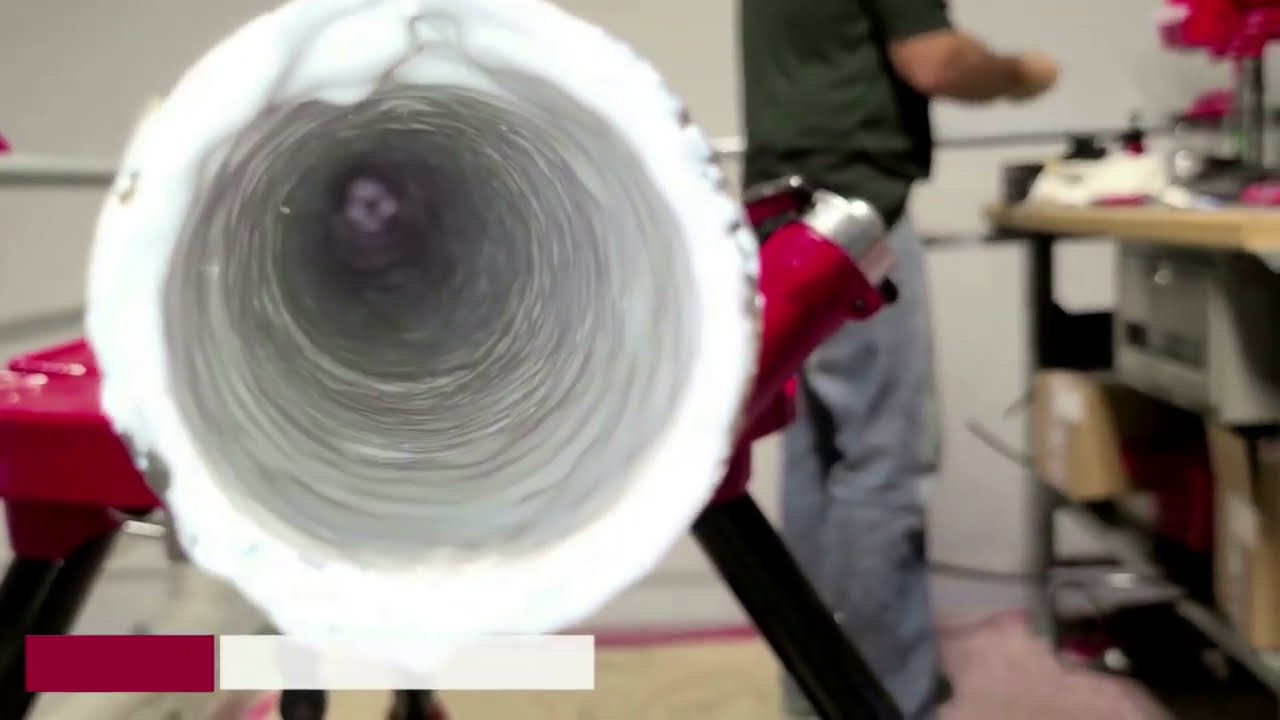

Скачать или смотреть Spin Cast Epoxy Pipe Lining Being Installed In Cast Iron Drain Pipes Underground - NO EXCAVATION!

FOR DETAILED VIDEOS AND PICTURES: https://www.trenchless-pipelining.com...

5 Stages of Pipe Lining Installation:
1. Remove The Rust and Scale From The Pipe Wall
First, the old scale and rust have to be removed using patented tools designed to remove rock-hard scale and rust, without breaking up the old remaining pipe.

This carbide chain has very sharp edges and it fits on a special cable that rotates at 600 RMP inside the pipe. The chains come in specific sizes that can only expand to the width of the internal diameter of the pipe being cleaned, which prevents any excessive outward pressure on the pipe wall.

Next, this tool is attached to the rotating cable. It has 4 “sandpaper flaps” that sand down the remaining pipe to make it smooth.

2. Wash The Debris Out Of The Pipe
Next, a high-pressure water “jetter” is inserted into the pipe which washes out all the debris. At the end of the cleaning process, all roots, rust, and scale have been removed, and cracks and holes are clearly visible in the next step.

3. Video Inspect The Pipe For Measurements
pipe video inspectionNext, a video camera is run through the pipe to see how long the pipe is and whether it has been cleaned sufficiently. The cleaning process might have to be repeated. Also, if there are very large holes and voids at the bottom of the pipe, they will be filled with epoxy under camera supervision, prior to pipe lining.

4. Pipe Lining Installation
epoxy pipe lining system
Use high-pressure air flow to dry the pipes
Prepare the epoxy mixer, pump, hoses, and delivery nozzle
Push the delivery nozzle and video inspection camera to the furthest end of the pipe
Turn on the mixer and pump, and start rotating the nozzle
Pull back the camera and delivery nozzle slowly under camera supervision to ensure that a uniform layer of epoxy is applied to the inside of the pipe
Allow the epoxy to harden (1hr-4hrs), and install a second layer of epoxy pipe lining if required

5. Make a Final Video Of the Restored Pipe
All of our lined pipes get video recorded when the lining has hardened, and those videos are uploaded online, and the links are provided to our customers, along with their 50-year materials and labor warranty (which is transferable if the home is sold!).
