1. Technical parameters:

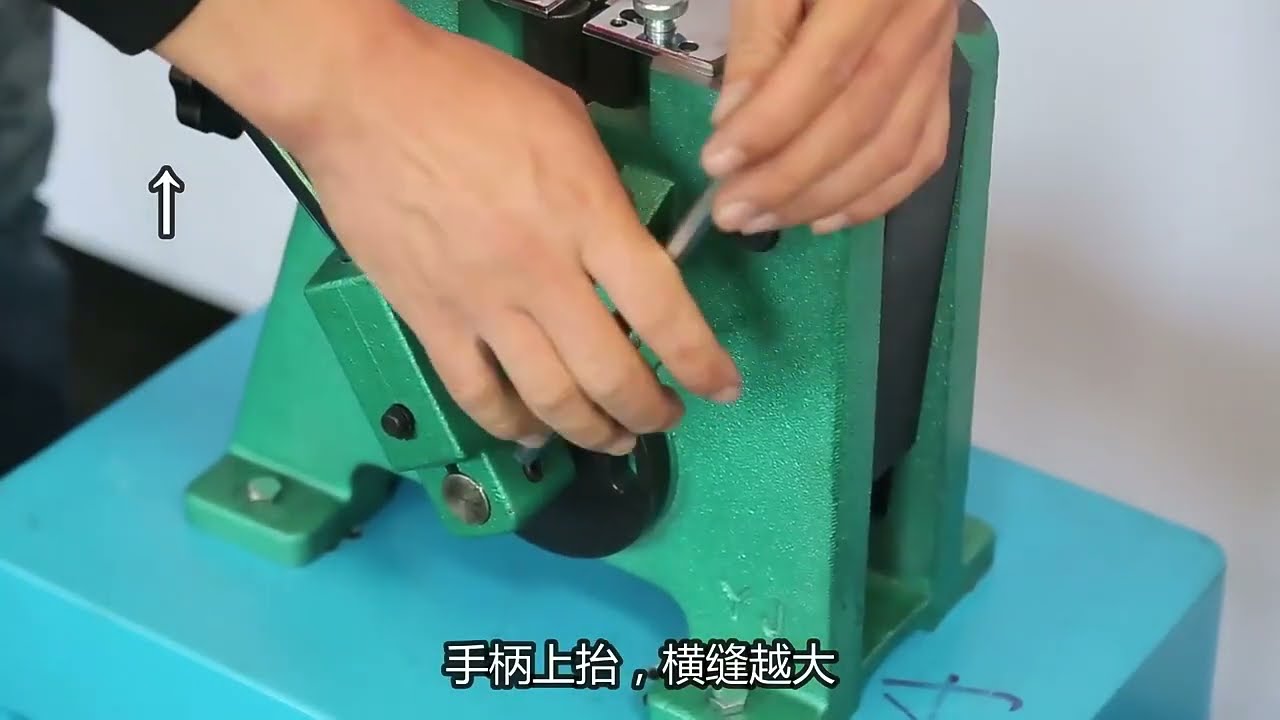

Product model: SZ-3TR desktop copper and aluminum wire wiring machine

Product use: for copper, aluminum, gold, silver, nickel, platinum, zinc, tin

Copper: ф0.80MM-Ф5.00MM

Aluminum: ф0.80MM-Ф5.50MM

Frame type: precision casting (ductile iron (QT-400))

Dimensions: 300MM×190MM×290MM

Product net weight: 40KG



2. Cold pick-up machine:

1. The cold welding machine is also called wire cold welding machine, wiring machine, cold press welding machine, etc. It can be divided into hand clamp type, desktop type cold connection machine and hydraulic type cold connection machine according to the use and shape.

2. The principle of cold joint machine: cold joint machine is a kind of machine that does not need any additives and electric energy. It makes the metal wire pass through a special mold, and under certain extrusion, the pure metal lattices are mixed and combined with each other. Realize the connection principle of molecular atomic structure, so as to weld various non-ferrous metal materials cold welding equipment.



3. Product Features:

The main features of the cold welding wire machine are as follows:

1. The heat generated during welding is small, no filler is needed, and the equipment is easy to operate.

2. The welding parameters are determined by the size of the matching mold, so it is easy to operate.

3. Stable welding quality, high productivity and low cost.

4. Without flux, the joint will not cause corrosion.

5. The temperature of the joint does not rise during welding, and the crystallization state of the material remains unchanged.

6. It is especially suitable for the welding of dissimilar metals and some metal wire and cable materials and products that cannot be realized by heat welding.

7. The welding time should not exceed one minute.



4. Detailed description:

1. It can weld other cross-sections such as rectangular wires (but special molds are required).

2. The machine can be placed on a trolley with wheels for easy movement.

3. No preprocessing is required.

4. The mold of HS-T02 cold welding machine can be replaced with each other.

5. The size of the double hole mold is less than 3.00mm.

6. The welding time is less than 1 minute.

7. The welding range can be appropriately enlarged by using the extended handle.
