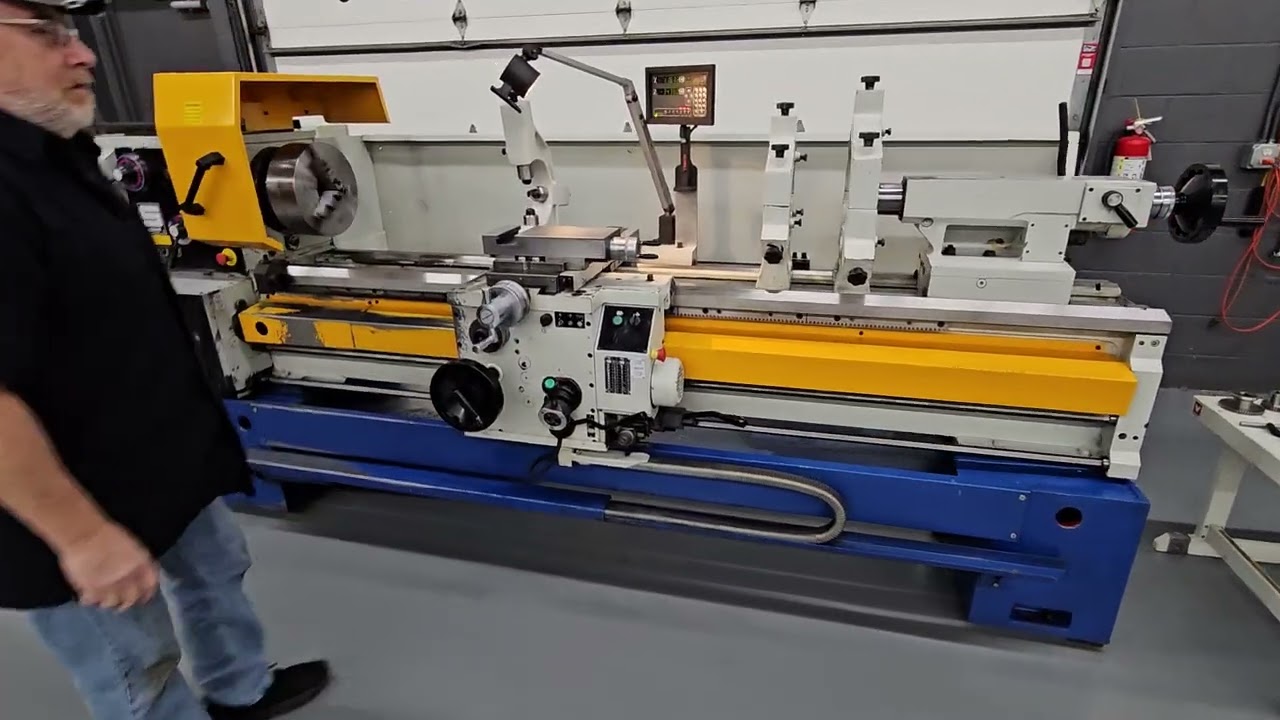

Скачать или смотреть SUMMIT 20"-4 x 80" B Heavy Duty Lathe, X 4 1/8” Spindle Bore, 2 Axis Newall DRO, 4 Way Rapid Trav.

For Sale Call John 952.836.5784 www.naabmachinery.com
Here We Have:
SUMMIT 20"-4 x 80" B Heavy Duty Lathe, X 4 1/8” Spindle Bore, 2 Axis Newall DRO, 4 Way Rapid Traverse
With built in Inch / Metric Threading, Taper Attachment

Make: Summit
Model:20X80B (Bulgarian)
Serial Number: 41038
New in: 2015
General Specifications:
Swing over bed: 20 ¼”
Distance Between Centers: 80”
Hole Thru spindle 4-1/8"
Swing over Cross Slide: 13 1/4”
Cross Slide Travel: 11 ½”
Compound Rest Travel: 5”
Width of bed: 16”
Swing over the Gap: 30”
Length of gap: 15”
Spindle nose: D-1-8 Camlock
HEADSTOCK:
Taper of Headstock’s Spindle Bore: # 6 Morse
Spindle speeds: (15 changes) 14 to 1400 RPM
Tailstock Taper# 5 Morse taper
Tailstock travel of Spindle Barrel: 2 Speed, 9 ½”
Threads: in inch: (64 changes) ¼” to 60 TPI – (threads Per Inch)
Threads: Metric: (64 changes) 0.5 - 120 MM – (MM Per Rev)
Feeds: in inch (36 changes) 0.0015 - 0.040 IPR ( Inches Per Rev)
Feeds: in Metric (36 changes) 0.125 – 30 MM per rev.
Main Motor: 10 HP / 7.5 K.W.
Electrics: 220v 3 phase
Weight: 7,500 Lbs.
Dimensions: 136” L x 50” W x 51” H

Included Accessories:
4 Way Rapid Traverse
(2) Steady Rests
Follow Rest
Thread Dial
Head Stock Center Taper
Coolant System
Taper Attachment
Taper Attachment: Degrees of taper +/- 10°
Maximum turning length per setting 16”
3 Jaw Chuck
Carriage Stop
Work Light
Full Length Splash Guard
Chuck Guard, Wired Safety Lock
Owners-Manuals: Operations & Maintenance
