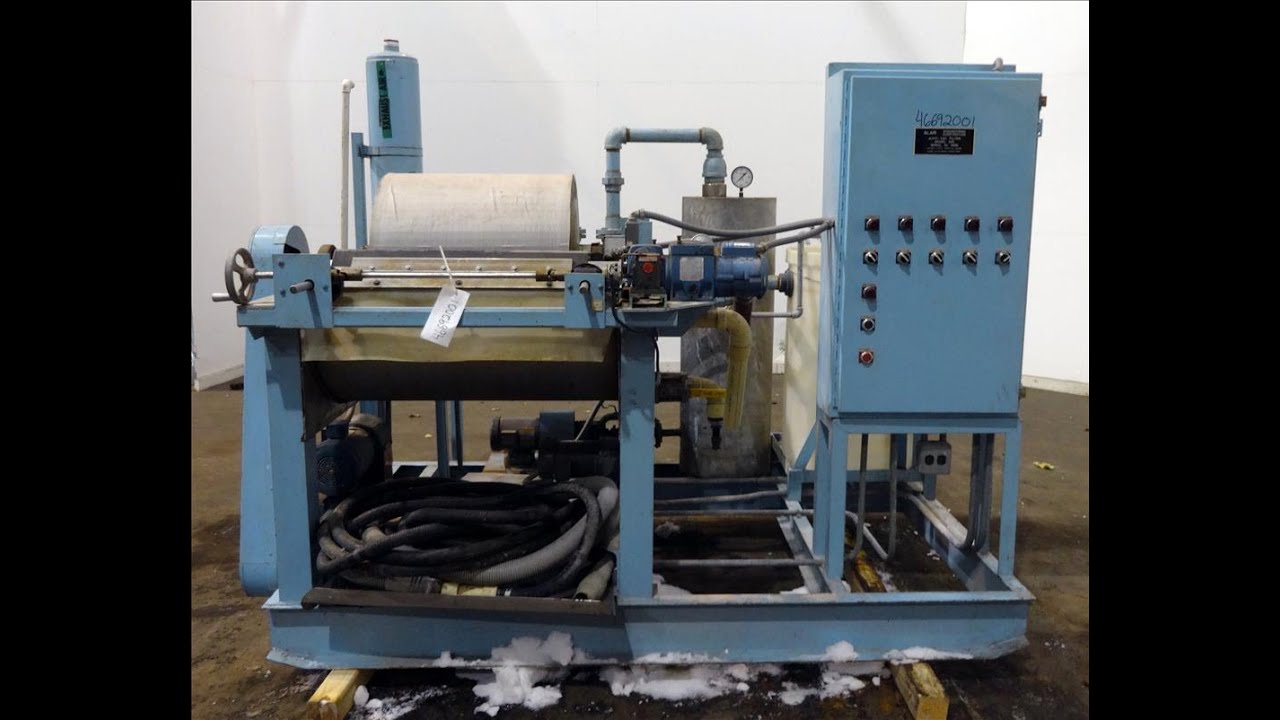

Used- Alar Auto-Vac Filter System. Consisting of: (1) Alar rotary vacuum filter, Model 220. 24" Diameter x 24" face, 304 stainless steel drum, approximate 12.6 square feet filter area. Drum driven by a 1/4 hp, 3/60/208 volt, 1140 rpm, Reeves MotoDrive manual variable speed gear motor, ratio 288 to 1. Adjustable knife discharge with pan, 304 stainless steel bottom holding tank with a rack style agitator, driven by a 1/4 hp, 1/60/115 volt, 12 rpm gear motor, ratio 144.5 to 1. Includes an approximate 60 gallon plastic tank with an agitator with (2) 3 blade props on 1/2" diameter x 36" long shaft, driven by a 1/3 hp, 1/60/115 volt, 1725 rpm motor, (1) approximate 40 gallon stainless steel tank, (1) receiver tank, (1) Corona liquid ring vacuum pump, Model CFL308, Serial# 20211, driven by a 5 hp, 3/60/208-230/460 volt, 1725 rpm motor, (1) Goulds centrifugal pump, Model 3199T, size 1x1-5, Serial# 724C134, driven by a 1 hp, 3/60/208-230/460 volt, 3450 rpm motor, and a control panel. All unitized on a common carbon steel frame.
