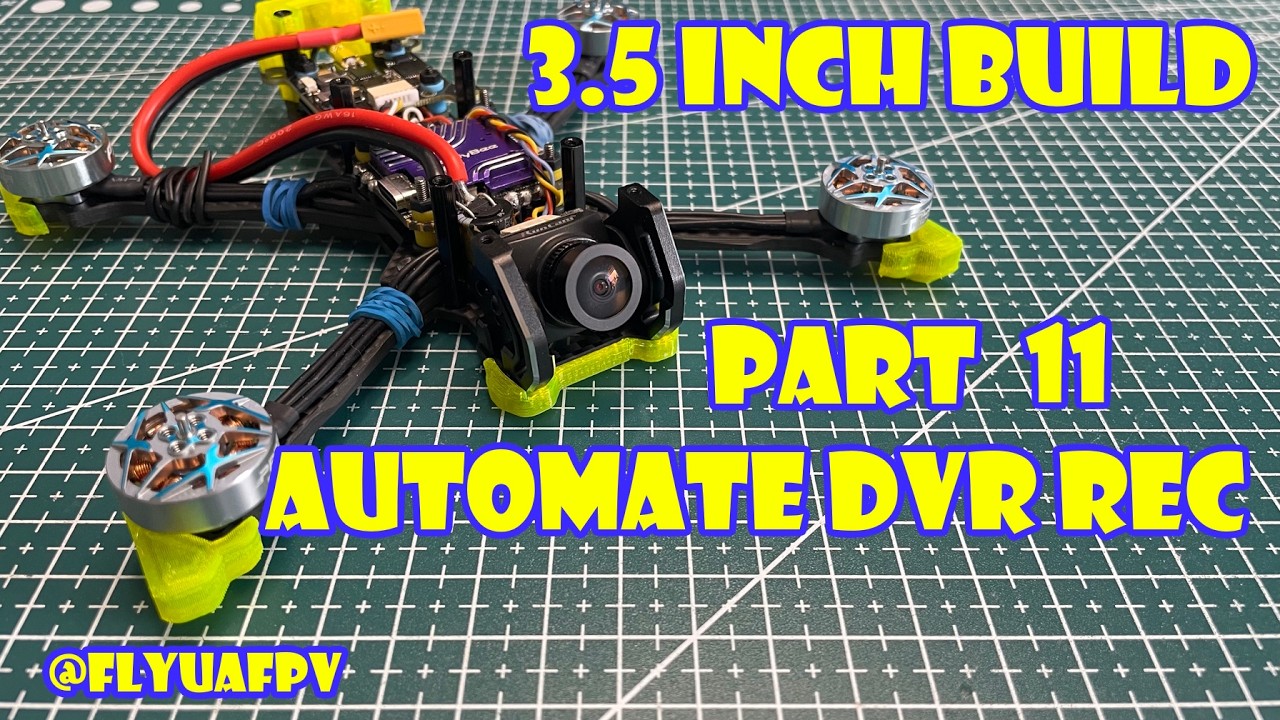

Скачать или смотреть How to Auto Start DVR with Quad Arm | Betaflight PINIO Tutorial

Detailed process of building 3.5 inch drone at home. Part 11 - Betaflgiht tutorial on PINIO and PINIO_BOX. Walk through how to use betaflgith PINIO and PINIO_BOX functionality to start / stop RunCam analogue DVR recording on quad arm / disarm or control it by switch on the radio.

CLI Scripts
-----------------------------------------------------------
Start Stop on Arm / Disarm:

resource SERIAL_RX 4 none
resource PINIO 1 C11
set pinio_box = 0,255,255,255
set pinio_config = 129,1,1,1

-----------------------------------------------------------
Start Stop on Switch:

resource SERIAL_RX 4 none
resource PINIO 1 C11
set pinio_box = 40,255,255,255
set pinio_config = 129,1,1,1
------------------------------------------------------------

🔧Tools, Parts and Gear Used:

*FlyFishRC Volador VX3.5 O3 FPV Frame: https://s.click.aliexpress.com/e/_olQ...

*Speedybee F405 AIO Flight Controller: https://s.click.aliexpress.com/e/_omC...

*Longer XT30 connector: https://s.click.aliexpress.com/e/_oDi...

*Motors - 4PCS T-MOTOR P1604 KV3800 4S: https://s.click.aliexpress.com/e/_oCG...

*Camera - RunCam Phoenix 2 SP V3 Camera: https://s.click.aliexpress.com/e/_oCm...

*VTX - Sologood (may be soldout): https://s.click.aliexpress.com/e/_oDz...

Alternative VTX: https://www.aliexpress.com/item/10050...

*SpeedyBee VTX TX 800: https://s.click.aliexpress.com/e/_oFy...

*RadioMaster ELRS RP3 Diversity Receiver: https://s.click.aliexpress.com/e/_ooh...

*RunCam Mini FPV DVR: https://s.click.aliexpress.com/e/_op1...
SD Card: https://www.aliexpress.com/item/32691...

Walksnail WS-M181 GPS with M10 chip and QMC5883 Compass
*https://s.click.aliexpress.com/e/_opr...

*Ace Tattu 650 MAH battery: https://s.click.aliexpress.com/e/_oFk...

*SkyRC B6 neo Smart Charger: https://s.click.aliexpress.com/e/_oES...

*Radiomaster Pocket: https://s.click.aliexpress.com/e/_oDM...
*18650 batteries: https://s.click.aliexpress.com/e/_onw...
*18650 batteries opt 2: https://s.click.aliexpress.com/e/_opT...

*Eachine EV800D Goggles Original: https://s.click.aliexpress.com/e/_ooW...
*Goggles Clone: https://s.click.aliexpress.com/e/_opZ...

*VIFLY ShortSaver: https://s.click.aliexpress.com/e/_oBI...

*Kapton tape: https://s.click.aliexpress.com/e/_oDB...

*SpeedyBee 5.8GHz Goggles Receiver for digital FPV goggles: https://s.click.aliexpress.com/e/_opY...

*Flux pen: https://s.click.aliexpress.com/e/_olw...

*Headband Magnifier: https://s.click.aliexpress.com/e/_oEP...

*Hot Air Gun: https://s.click.aliexpress.com/e/_opC...

Links marked with * are affiliate links.

Volador VX3.5 Walksnail WS-M181 front GPS mount TPU
https://www.printables.com/model/1100...

Quad's full Betaflight CLI dump with GPS
https://gist.github.com/olmelabs/cfb1...

⏱️ Timestamps:
0:00 - Intro
0:44 - How to Runcam DVR + Flight Controller
01:07 - Betaflight PINIO and PINIO BOX overview
02:45 - Overview of what needs to be done
03:56 - Binding DVR Start / Stop to quad Arm/ Disarm
09:00 - Binding DVR Start / Stop on Switch
10:26 - Thank you :)
