Introduction
For the FBSW-1528 tomato paste sachet packing machine, it is a kind of vertical bagging machines which specialized for the packaging of semi-liquid vertical ffs packing the products into the 4 side seal sachet style.

Feature
-This kind of tomato ketchup packing machine adopt by high precision pump press feeding system, suitable for the packaging of semi-liquid products, such as jelly, shampoo, ketchup sauce, chili sauce, oil and etc.
-This model of tomato paste filling machine adopt by frequency control, make sure a high precision measuring of products.
-Made of stainless steel, all machine structures are in accordance with food hygiene standards selected design, rust and durable, easy operation and maintenance, the material contact with the container material are food grade SUS304.
-Controller by PLC, operate by touch screen, horizontal and vertical sealing temperature can adjustable.
-The machine completes the whole procedure of filling, bagging, date printing, charging (exhausting) automatically.
-Photocell control system can realize automatic mark/tracking/cutting.
-Intelligent temperature control by temperature controller, let the sealing temperature better and balanced.
-Optional Multi language for chosen, we could offer all the button and setting list and after got your translation and we put into the program.

Technical Parameters
Packaging material: jelly, shampoo, ketchup sauce, chili sauce, oil and etc.
Available filling capacity: 10ml-110ml
Finished pouch size(min to max): Length(50mm-150mm)/Width(25mm-140mm)
Ffs packing speed(sachet/min): 60-100
Type of material feeding system: high precision pump press feeding system
Material of machinery: # 304 stainless
Power supply: AC 220V /50/60Hz
Total power: 1.52KW
Machine weight: 300KG
Machine dimension: 1260mm*930mm*1700mm

Pouch style of form fill seal
4 side seal sachet

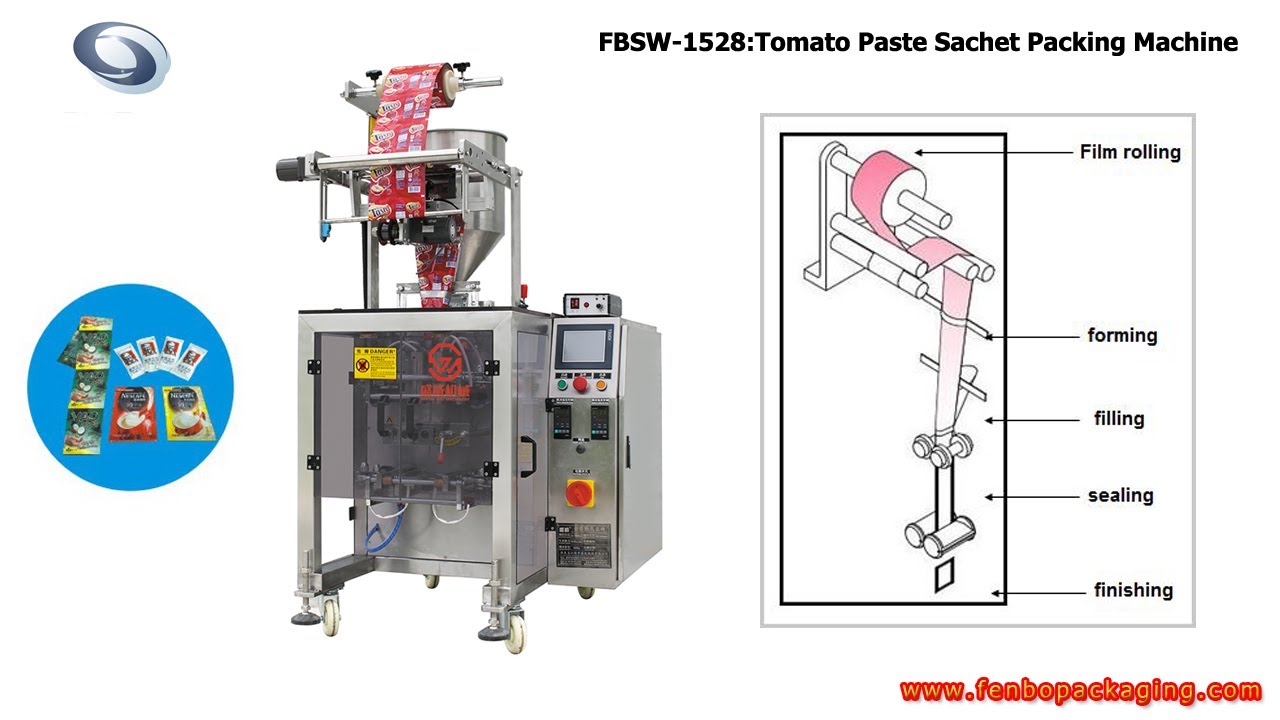

Working process of tomato paste sachet packing machine FBSW-1528
-Film rolling
-Forming/Filling/Sealing
-Finishing

Detailed information about FBSW-1528 tomato paste sachet packing machine: https://www.fenbopackaging.com/vertic...
Relative product model: https://www.fenbopackaging.com/4-side...
