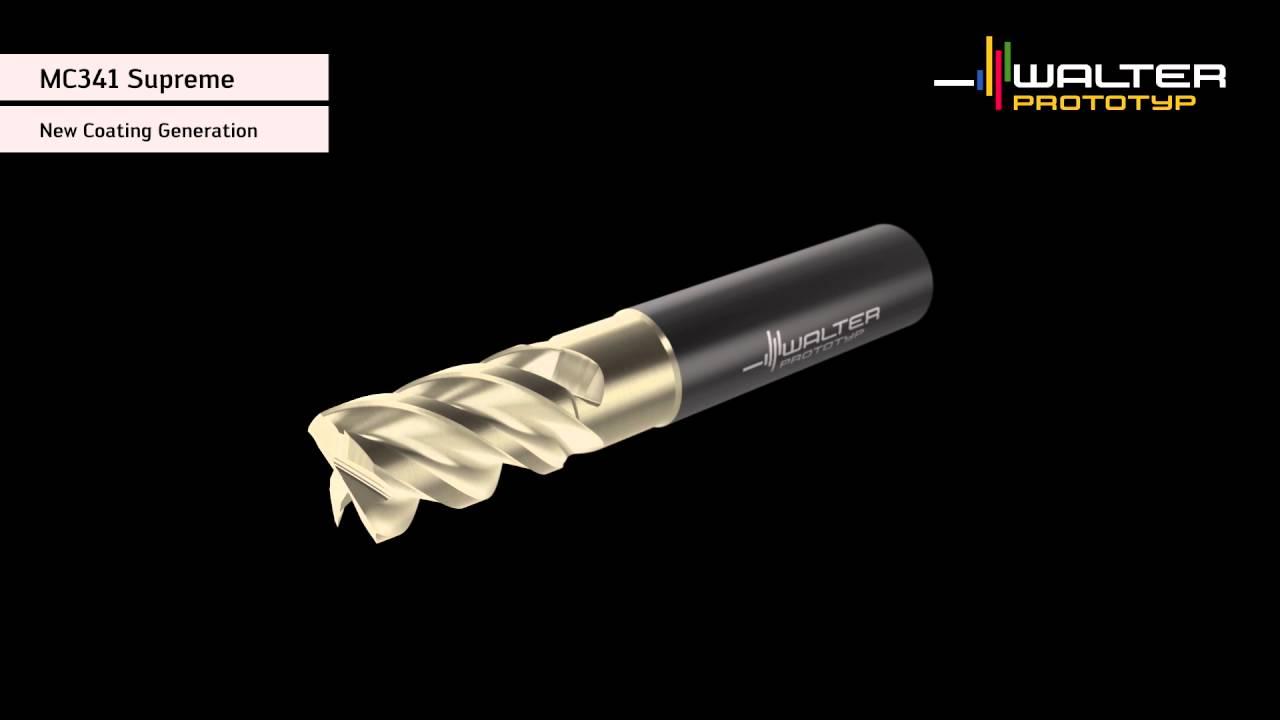

Скачать или смотреть MC341 Supreme – the new high-performance milling cutter specifically designed for machining steel

The tool

– Solid carbide high-performance milling cutters
– Diameter range 6–20 mm
– Helix angle λ = 50°
– Reinforced core diameter
– Four cutting edges with differential pitch
– Reduced neck (d2) and back cutting
– Shank DIN 6535 HA

The application

– Primary application: ISO P
– Secondary application: ISO M
– For roughing and finishing
– In cases where high machining volume is required
– Shoulder milling, full slotting, pocket milling, ramping, plunging and contour milling
– Usable for wet and dry machining
– Areas of use: General mechanical engineering, tool and mould making, and the automotive and energy industries

Benefits for you

– Exceptional tool life and performance increases of up to 50% thanks to the innovative new Walter WK40TZ grade as well as a special coating process
– Full slotting in steel materials (up to 1.5 × Dc)
– Low spindle load thanks to differential pitch
– Soft cutting action and optimal chip evacuation
– Back cutting reduces transitions when performing side face machining
– High level of process reliability due to stable core and optimised microgeometry
