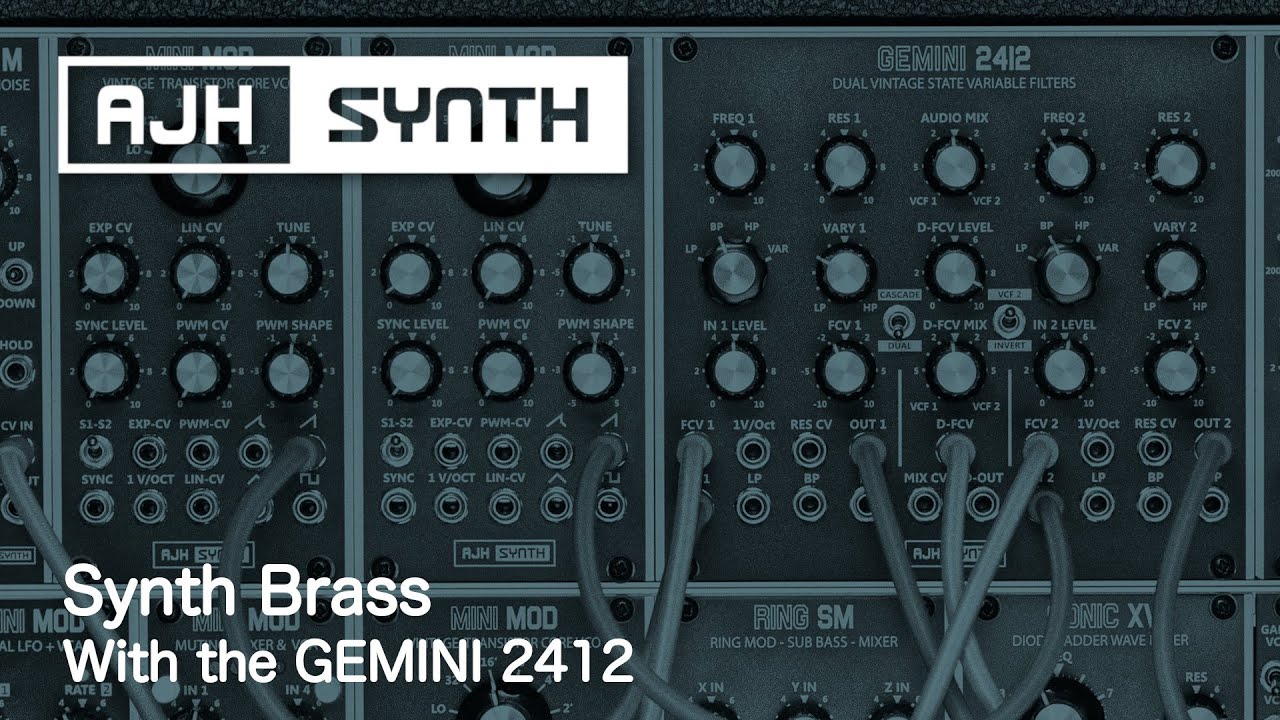

Скачать или смотреть Patch of The Week: Synth Brass w/ Gemini 2412 - SEM-like sounds inspired by Jarre & 70's-80's

Part 2 of a series focussing on the Gemini 2412, but also useful for producing brass sounds with any analogue synth, preferably one with a bandpass filter. The sound of this patch is very loosely inspired by some from the 1970's to 80's, such as Jean-Michel Jarre (Oxygene), and Clannad (Legend), and was created simultaneously with a CS-80/Blade Runner (Vangelis) inspired patch (video for this patch coming next weekend). None of these sounds I believe were made using an SEM, upon which the Gemini filter is based, but the sound and character of the early Oberheim synths are particularly excellent for brass sounds.
Part 1 of this series, featuring both a variation of this and the Blade Runner-inspired patch, can be found here:    • Patch of The Week: Brass & Blade - inspire...
Part 3 shows how to make 3 variations of the famous Yamaha CS-80 patch. Find it here:    • Patch of The Week: Blade Runner / Vangelis...

Patch Sheet PDF for this video: https://kvisit.com/8AE/oPkG
Patch notes also below.

Check out the AJH Synth playlists for more 'Patch of The Week' videos, which will be either performances or 'how to' guides detailing a range of sounds, some familiar, some less so, and each containing a patch sheet at the end to show you how to construct it for yourself.

Video by    / dreamsofwires

More Videos:
John Carpenter 'Assault on Precinct 13' inspired Gemini patch:    • Patch of The Week: 'Assault on Precinct 13...
Stereo Filtering with the Gemini 2412:    • Patch of The Week: Stereo Gemini - Using a...

Index:
00:00 Intro
00:29 Creating the patch
04:13 2-Voice polyphonic example
04:40 Stereo example
05:29 Patch Sheet

Patch Notes:
Green dots show approximate pot and switch positions. Those with two dots show the range I adjust them during the video. Pots and switches that do not have green dots are not used in this patch, and should be left at their zero or off positions.
In the video I'm using the Glide + Noise MkII module to access the CV Bus, allowing me to control both VCO's from one input/cable. If you are not able to use the CV Bus you will need to use a multiple or stacking cable to connect the keyboard to each VCO's 1V/Oct input, as is usual with a fully modular synth.
VCO: When using 2 VCO's in this patch, it's important to get the tuning just right - too tightly tuned at it will sound thin. Sawtooths are the best choice of waveform for brass-like sounds.
Gemini 2412: Here I've used the OUT1 to be consistent with the video, but you could also just use the BP output, bypassing the need to set the filter type on the rotary switch. Note that D-FCV LEVEL also affects the frequency of the filter, and subsequently how much it is affected by incoming CV at FCV1.
DH-ADSR: Optional, but I've shown the pot positions if you want to use it to control the filter.
Modules used from top-left to bottom-right: Glide + Noise MkII (optional), Vintage Transistor Core VCO (x2), Gemini 2412, Contour Generators, Discrete Cascaded VCA, Dual LFO + VCA (optional), Muting Mixer & VCA, DH-ADSR (optional).
