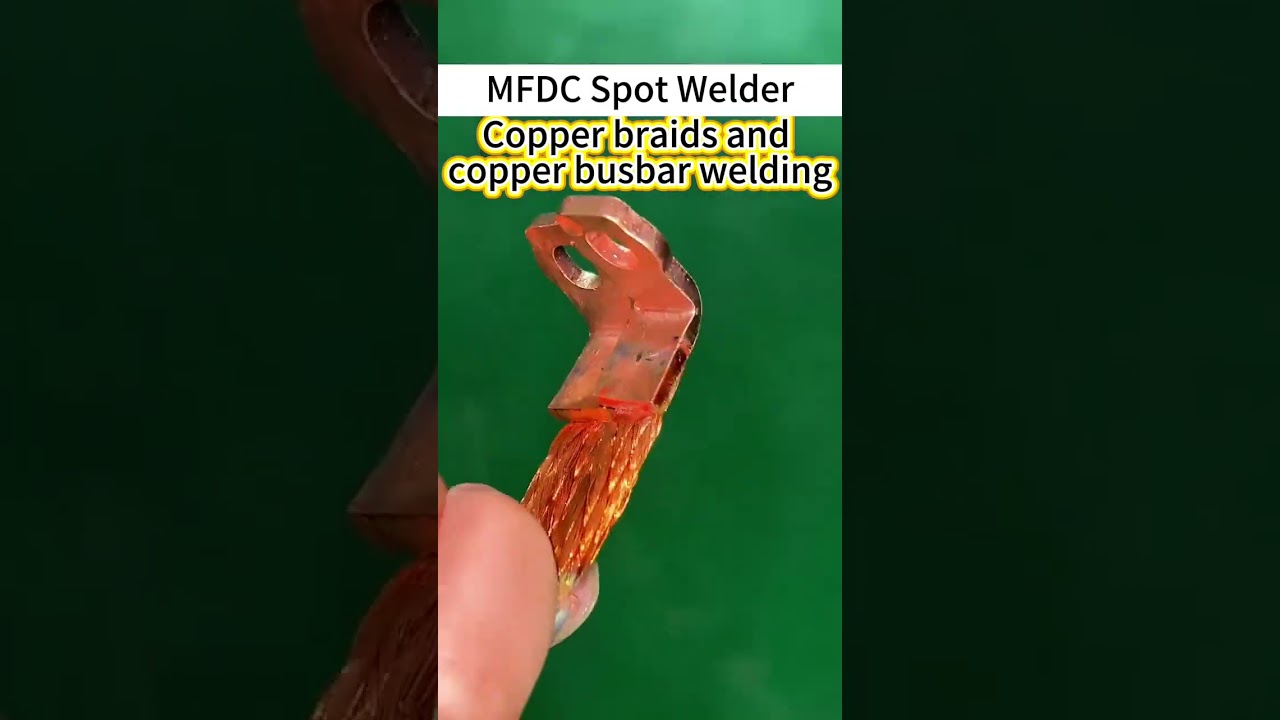

Скачать или смотреть Copper braids and copper busbar welding done by MFDC Spot welder

This video demonstrates copper braids and copper busbar welding performed using a MFDC (Medium Frequency Direct Current) spot welding machine, delivering a stable, low-resistance, and high-strength electrical connection for demanding industrial and new energy applications.

Welding copper braids to solid copper busbars is a critical process in applications where high current transmission, vibration resistance, and flexible connectivity are required. This type of joint is widely used in EV battery systems, energy storage systems (ESS), power distribution units (PDU), inverters, transformers, and industrial electrical equipment.

⚙️ Challenges in Copper Braid to Busbar Welding

Copper welding presents unique challenges due to:

Extremely high thermal and electrical conductivity

Rapid heat dissipation

Risk of oxidation during welding

Difficulty in achieving uniform bonding

Requirement for very low and stable electrical resistance

Traditional welding methods often struggle to provide consistent quality and reliable electrical performance when joining flexible copper braids to rigid copper busbars.

🔥 Why Use MFDC Spot Welding for Copper?

MFDC spot welding technology provides precise and fast current control, making it suitable for copper joining applications:

High peak current with accurate timing

Stable DC output for controlled heat input

Reduced spatter and surface damage

Strong metallurgical bonding

Excellent repeatability in batch production

The MFDC spot welder ensures uniform heat distribution at the joint interface, allowing the copper braid strands to bond securely with the copper busbar while maintaining excellent electrical conductivity.

🛠️ Key Features of MFDC Spot Welder for Copper Welding:

Medium frequency inverter DC power supply

Precise control of welding current, time, and electrode pressure

Optimized electrodes for copper braid welding

Stable welding performance for high-conductivity materials

Designed for continuous industrial operation

⚡ Typical Applications:

EV battery flexible connectors

Energy storage system busbars

Copper braid grounding connections

Power distribution and inverter systems

High-current industrial electrical assemblies

Copper braid to busbar welding is essential where flexibility, vibration resistance, and low contact resistance are required simultaneously.

🤖 Automation & Production Line Integration

MFDC copper welding systems can be integrated into:

Semi-automatic copper welding stations

Automated production lines

Customized welding workstations

Robotic or multi-station welding cells

Programmable welding parameters allow quick adjustment for different braid sizes, busbar thicknesses, and material combinations, ensuring high efficiency and consistent quality.

🌍 Proven Industrial Experience

HAIFEI has extensive experience providing MFDC copper welding solutions to international new energy and electrical equipment manufacturers, including applications involving copper braids, laminated busbars, and solid copper conductors.

We offer:

Copper welding process development

Sample welding and electrical resistance testing

Customized machine and electrode design

Automation and turnkey production solutions

If you are looking for a reliable solution for copper braid to copper busbar welding, MFDC spot welding technology from HAIFEI delivers low resistance, high strength, and long-term stability.

📩 Contact us today to discuss your copper welding application or arrange a sample test.

🌐 Visit Our Website: www.busbarwelder.com

📧 Email Us Directly: [email protected]

📱 WhatsApp/Call: +86 158 1641 7853
