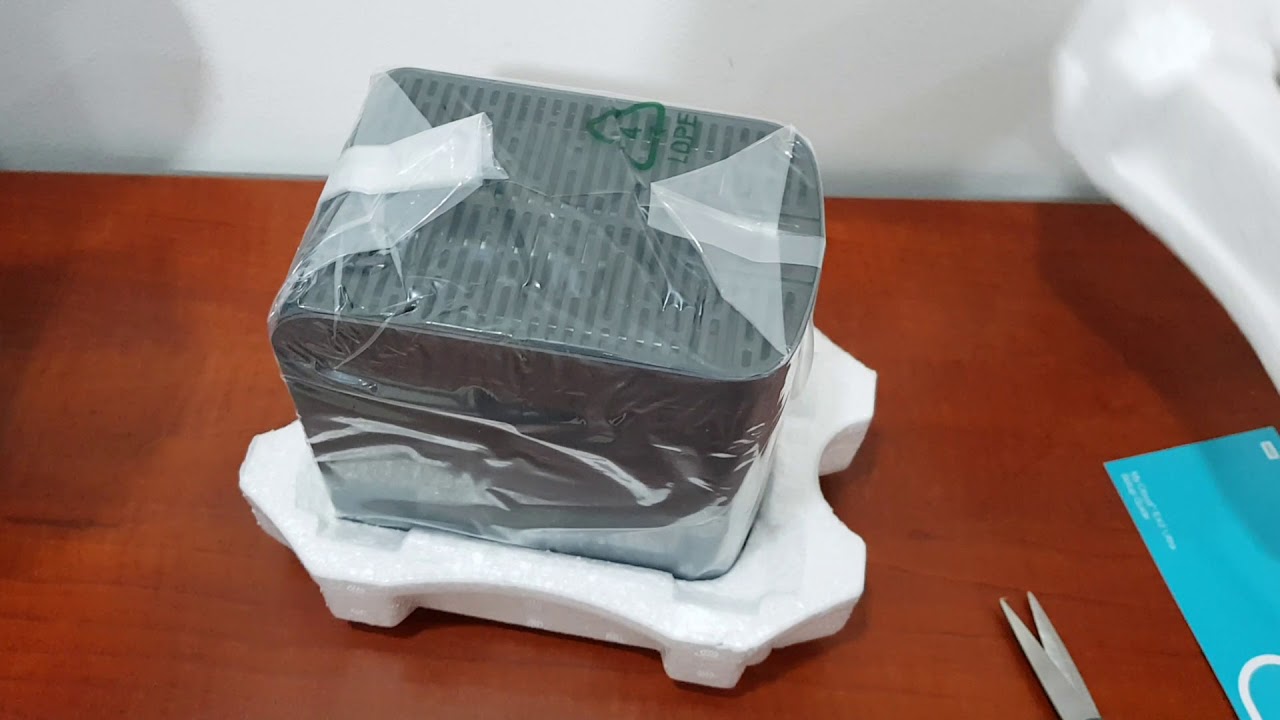

Скачать или смотреть WD My Cloud EX2 Ultra NAS | Unboxing | Review | Specifications | Network Attached Storage |

Capacity

0TB - 20TB



Interface

Gigabit Ethernet



Operating System

Windows/Mac



Package Includes

My Cloud EX2 Ultra Device

Ethernet cable

Power supply

Quick install guide

 Interface

Gigabit Ethernet

Power supply (DC in) x 1

USB 3.0 expansion port x 2 rear

CPU

Marvell® ARMADA® 385 1.3 GHz dual-core

Memory

1 GB DDR3

Drive bays

2 x 3.5 inch hard drive bays, hot swap capable, tray-less design

Internal hard drives

WD Red NAS hard drives

Expansion Ports

2 USB 3.0 ports

System Requirements

Windows 10, Windows 8, or Windows 7 operating system

Mac OS X El Capitan, Yosemite, Mavericks, Mountain Lion, or Lion operating systems

DLNA/UPnP devices for streaming

Router with Internet connection

Supported Web Browsers

Internet Explorer 10 or higher

Safari 6 or higher

Firefox 30 or higher

Google Chrome 31 or higher on supported Windows and Mac OS platforms

Network Protocols

DHCP Client or Static IP

NTP Client

Dynamic DNS (DDNS)

Apple Bonjour and Windows Rally

Jumbo frame support up to 9K

VLAN (802.1Q)

Link Aggregation and failover for 2 Gigabit Ethernet ports

UPnP port forwarding

LLTD Link Layer Topology Discovery Protocol

iSCSI

SSH

Network File Services

OS Supports

Windows XP Home/ Pro/ 64-bit SP3+

Windows Vista/ 7/ 8 (All versions)

Mac OS X 10.6, Lion, Mountain Lion

CIFS/SMB for Windows, Mac OS X and Linux

Linux Distributed File System (DFS)

AFP for Mac OS X

FTP/SFTP Server

WebDAV Server

Microsoft Active Directory support

Backup management

Remote backups: My Cloud Expert Series to My Cloud Expert Series locally or remotely

Backup internal files or folders of the device to other files/folders on the NAS or attached USB drive

WD SmartWare Pro for Windows clients

Apple Time Machine (10.5.8+) support

Cloud-based backup services

Amazon S3

ElephantDrive (http://home.elephantdrive.com/)

Disk sync management for the attached USB ports

Disk management

RAID: JBOD, spanning, 0/1

RAID migration

JBOD to RAID 1

Hot swapping

Disk roaming

Array roaming

Security

Volume Encryption (256 bit AES)

File System

EXT4 for internal HDD

Support following formats for externally attached USB drives

FAT/FAT32

NTFS (read and write capability)

HFS+J (case sensitive)

Linux EXT2, EXT3, EXT4

Support for mounting ISO-Image

FTP Server

Support Port Setting

Set port range of passive FTP

Option to report external IP in PASV mode

Client language selection

Anonymous FTP

Secure FTP Support

Support File eXchange Protocol (FXP)

FTP bandwidth restriction (upstream/downstream)

IP address block (block access from undesired IP address)

Download Management

HTTP downloads from a URL to a user specified folder on the NAS

FTP downloads of files or folders from an FTP server to another files/folders on the NAS

P2P Download Manager

Power Management

Drive Spin Up/Down (including Attached WD USB drives)

Automatic power recovery (with UPS)

Schedule power on/off

Graceful shutdown on UPS low battery

FAN Control

Network UPS

Wake On LAN

Remote Access

My Cloud mobile app

My Cloud.com web access

User/Group Management

Max No. of Users: 512 for Samba, 800 for ADS

Max No. of User Groups: 64 for Samba, 200 for ADS

Max No. of Network Shares: Max No. of Network Shares: 128

Max concurrent CIFS connections: 10

User/Group assignment for network sharing/FTP

Quotas for groups or users

Assignment of users to multiple groups

Batch assignment of users to groups

Batch user creation

Importing users (CSV Delimited Format)

Importing groups (CSV Delimited Format)

System Management

System status: Device Information

Capacity usage status for the external storage

File category breakdown of how much video, photo, music is stored

Alert notifications

Event UI message

UI Alert (with message acknowledgment required)

Email notice

QuickView pop-up message

RED LED status

Network recycle

Support Windows CIFS

Support Apple AFP

System/FTP Log (Syslog Client)

HTTP/S (Web) Administration Interface (HTTP Server)

Firmware upgrade

Configuration backup and restore

SNMPv2

System Information

CPU percentage

RAM usage

Network performance in MB/s

Media Streaming

PLEX media app

UPnP AV Media server (Twonky)

DLNA certification

Support WD TV, WD TV Live, Xbox 360, PlayStation 3, Windows 8, connected TVs, Blu-ray players and digital picture frames

iTunes Server

iSCSI

iSCSI Target

CHAP authentication

iSNS (Internet Storage Name Service )

Up to 64 iSCSI Targets

Volume Virtualization

Virtual Disk Drive (via iSCSI Initiator)

Max number of virtual disk drives supported is eight (8)

Power Supply

Input voltage: 100V to 240V AC

Input frequency: 50 to 60 Hz

Output voltage: 12V DC, up to 4A

Temperature

Operating Temperature: 0° C to 35° C ( 32° F to 95° F)

Non-op Temperature: -40° C to 70° C (-40° F to 158° F)
