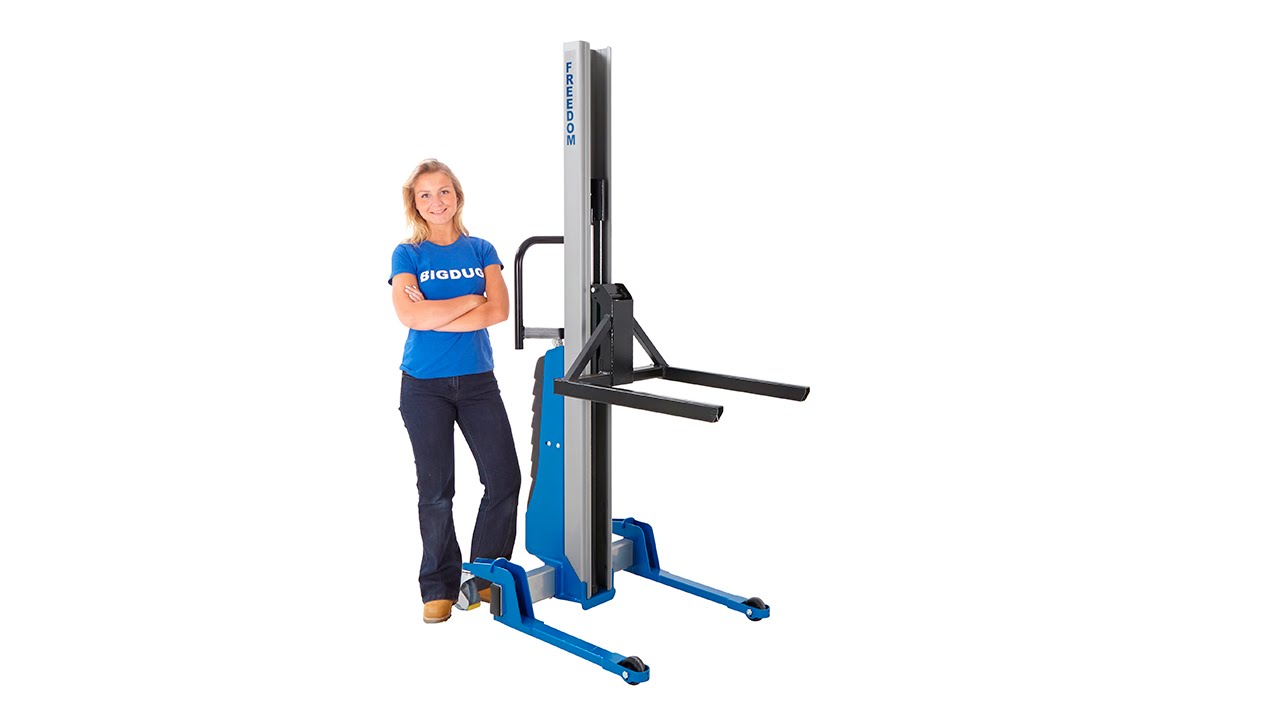

Скачать или смотреть BiGDUG Freedom Pallet Stacker Product Video

Our Pallet Stacker is a versatile and manoeuvrable handling aid that lessens the need for heavy manual handling. Designed to lift, move and stack pallets, the mobile Stacker can also be used as an adjustable-height work platform, a roller platform or as a boom-supported load carrier. (The Stacker is supplied with a standard attachment but separate, quick-change attachments are available separately.)
The Stacker's is compact enough to fit through a standard doorway but can still lift and handle loads of 260kg up to 1600mm. Powered by a maintenance-free battery, the Freedom Pallet Stacker is a versatile, manually-operated handling aid that, in many instances, will provide light-industrial users with a less costly alternative to the forklift truck.

Electrically powered stacker with 260kg lift capacity
Suitable for use as a pallet/load carrier, adjustable work platform
or conveyor loader
2 x swivel, braked castors and 2 x fixed
Single, highly visibility mast
Lift Height: 90mm to 1600mm
Fixed Fork Length: 550mm
Width Over Fixed Forks: 520mm
Handle Height: 1295mm
Handle Width: 350mm
Overall Dimensions(width x length): 715mm x 1100mm
Castor Wheel Diameter: 125mm
Load Wheel Diameter: 80mm
Available with fixed forks, adjustable forks, a steel work platform,
a roller platform and a boom. (Please note that bespoke
attachments are also available individually)
