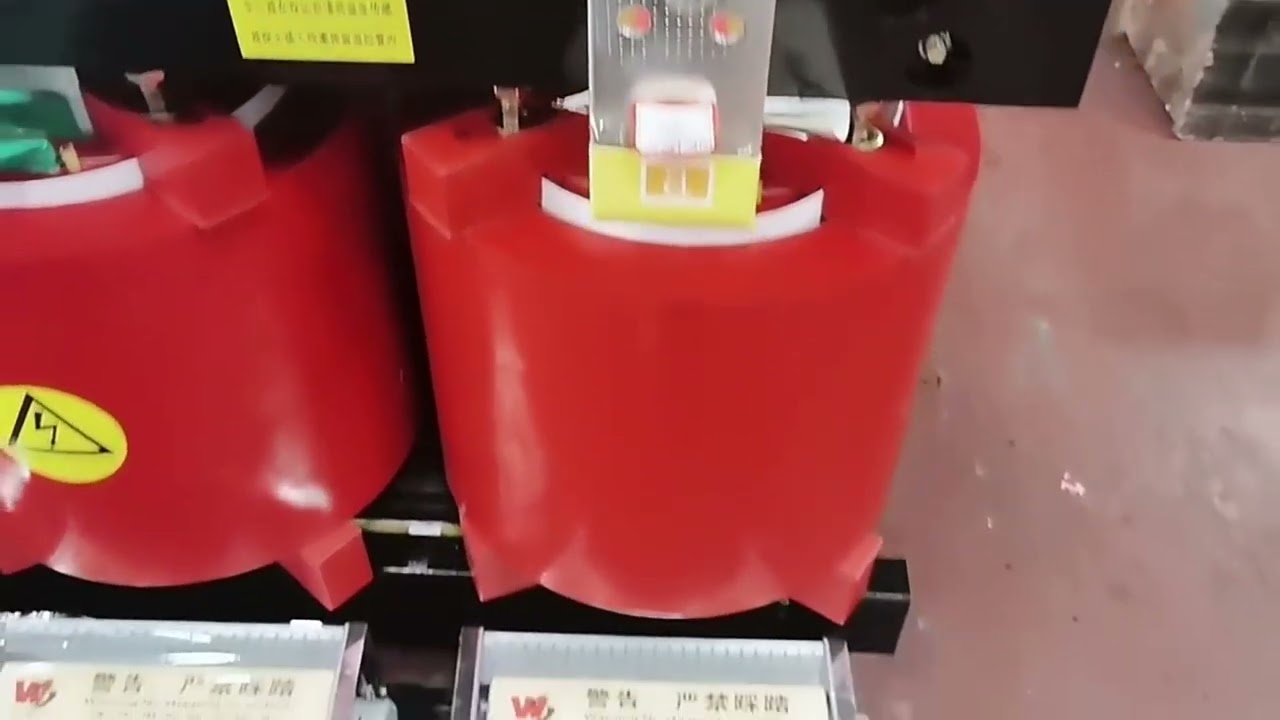

Скачать или смотреть 15 KVA-20000 KVA Dry Type Transformer Manufacturer Factory Wholesale Price in China

Discover Best dry type transformers, including cast resin models ranging from 50KVA to 10MVA. As a leading dry type transformer manufacturers, we offer reliable three-phase solutions for industrial applications. Find the perfect transformer for your needs today!

Advantages of 1000 KVA Cast Resin Dry Type Transformer
Cast Resin Dry Type Transformer Series is a type of transformer characterized by low noise, low loss, and low partial discharge. This series of products feature reasonable structure, high-quality materials, scientific design, rigorous craftsmanship, advanced testing methods, and the following characteristics:

Explosion-proof, non-explosive, non-polluting, and no toxic gases.
High moisture resistance, capable of safe operation in harsh environments with 100% humidity without the need for dehumidification procedures.
Strong resistance to short-circuit.
Strong overload capacity, capable of operating at 110% rated load during AF, and 150% rated load.
Beautiful appearance, compact size, and low installation cost.
Performance and parameters meet or exceed GB, IEC, or industry standards.
Discover more about 1000 KVA Cast Resin Dry Type Transformers. EverNew, as a leading transformer factory in China, is eager to share further details with you.

Dry Type Transformer Core
EverNew employs high-quality transformer cores crafted from Cold Rolled Grain Oriented (CRGO) steel. These silicon steel sheets undergo precision manufacturing processes, where automated machines cut them to the required dimensions. This meticulous approach minimizes air gaps, reduces excitation current, and lowers noise levels, ensuring optimal transformer performance.

To enhance durability and reliability, each laminated layer of the core is carefully insulated from one another. This insulation not only prevents electrical faults but also extends the lifespan of the iron core.

Our cores are stacked using a 45-degree stepped full tilt method, a technique that effectively reduces no-load current. This innovative approach to core stacking further enhances the efficiency and performance of our transformers.

Dry Type Transformer Winding
Low-Voltage Winding: The low-voltage winding is crafted using high-quality foil conductors or copper wires, ensuring balanced turns for optimal performance. It exhibits minimal additional losses and boasts strong resistance against short-circuit scenarios. Scientifically designed, the winding incorporates a cooling oil circulation system to enhance heat dissipation, effectively lowering temperature rise and thereby boosting overload capacity.

High-Voltage Winding: The high-voltage winding is constructed using premium-grade copper wires, featuring an exceptional structural design that enhances the distribution of the electric field. Through rigorous lightning impulse analysis, it has been fortified to withstand lightning strikes effectively.

EverNew, through meticulous design and engineering, ensures that our transformers possess unparalleled reliability, efficiency, and durability. Contact us today to discover more about our dry-type transformers and how they can elevate your power systems.

EverNew Dry Type Transformer Testing Report
All transformers developed and provided by EverNew undergo type tests and special tests at globally recognized independent testing laboratories, obtaining test reports including:

C2/E2/F1 Test Report for Cast Resin Dry Type Transformers
Aging Test Report for Cast Resin Dry Type Transformers
Seismic Resistance Test Report for Cast Resin Dry Type Transformers
Type and Special Test Report for Cast Resin Dry Type Transformers in Nuclear Power Plant Applications
Various Traction/Excitation Transformer Type and Special Test Reports
Type and Special Test Report for Amorphous Alloy Core Dry-Type Transformers
Three-Phase (Salt Mist, Humidity, Damp Heat) Performance Type and Special Test Reports
All Dry Type Transformers from EverNew Transformer have obtained relevant testing reports, as well as certifications such as CE, UL, CSA, etc. For more information regarding additional tests and reports, please contact us.
