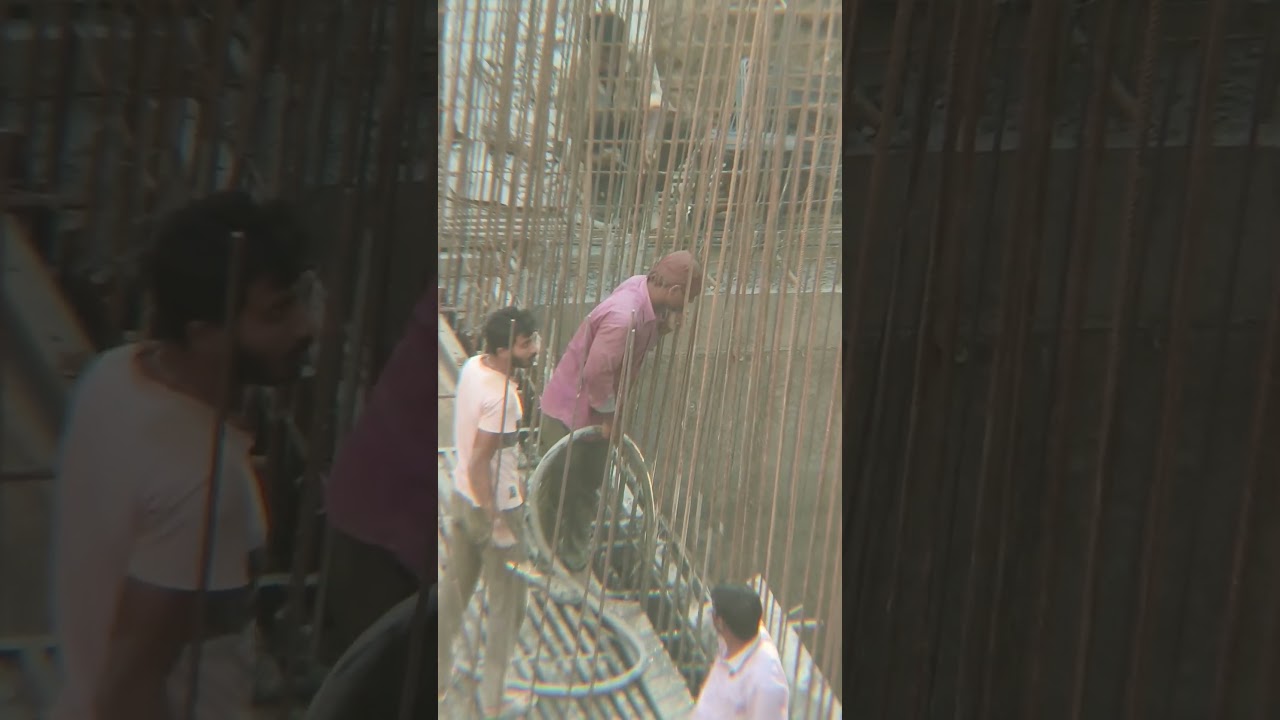

Скачать или смотреть Using the vibrator to settle the concrete

Concrete vibrators are essential tools in construction for ensuring the quality and strength of concrete structures. They help eliminate air bubbles and compact the concrete, creating a dense and uniform mass with improved structural integrity.

Types of Concrete Vibrators

There are four primary types of concrete vibrators used in construction:

Internal (Needle) Vibrators

Most commonly used vibrator type

Consists of a steel tube with an eccentric vibrating element

Inserted directly into the concrete

Frequency of around 700 cycles per minute

Diameter ranges from 25mm to 90mm

Powered by electric motor, compressed air, or petrol engine

External (Formwork) Vibrators

Attached to concrete formwork horizontally and vertically

Used in thin or congested sections

Vibrate concrete through formwork

Ideal for columns, thin walls, and precast units

Surface Vibrators

Also called screed or pan vibrators

Used for horizontal surfaces like pavements and slabs

Effective up to 20 cm concrete depth

Can be combined with internal vibrators for deeper layers

Vibrating Tables

Metal platforms with steel springs

Used for precast structural elements

Concrete is placed in molds and clamped to the vibrating platform

Vibration Technique and Best Practices

Proper Insertion and Withdrawal

Fully submerge the vibrator head into concrete

Hold in place for at least 10 seconds

Withdraw slowly at 1-3 inches per second

Overlap previous vibration radius

Stop when air bubbles no longer escape and concrete surface develops a sheen

Key Considerations

Verify areas not already vibrated

Do not turn on vibrator until fully submerged

Radius of action is typically four times the vibrator tip diameter

Layer thickness should not exceed 600 mm

Benefits of Concrete Vibration

Structural Improvements

Reduces internal friction between concrete particles

Eliminates air bubbles and potential honeycomb spaces

Increases concrete density and compactness

Improves long-term durability and strength

Ensures better bonding with reinforcement

Choosing the Right Vibrator

Factors to consider:

Project type (horizontal/vertical surfaces)

Concrete mix characteristics

Reinforcement density

Available power sources

Accessibility of work area

Safety and Maintenance

Use protective electrical devices

Avoid overloading the motor

Keep flexible shafts clear of damage

Ensure proper operator training

Follow manufacturer's guidelines

Concrete vibration is a critical process that significantly impacts the quality and performance of concrete structures. By understanding and implementing proper vibration techniques, construction professionals can ensure stronger, more durable, and more reliable concrete installations.
