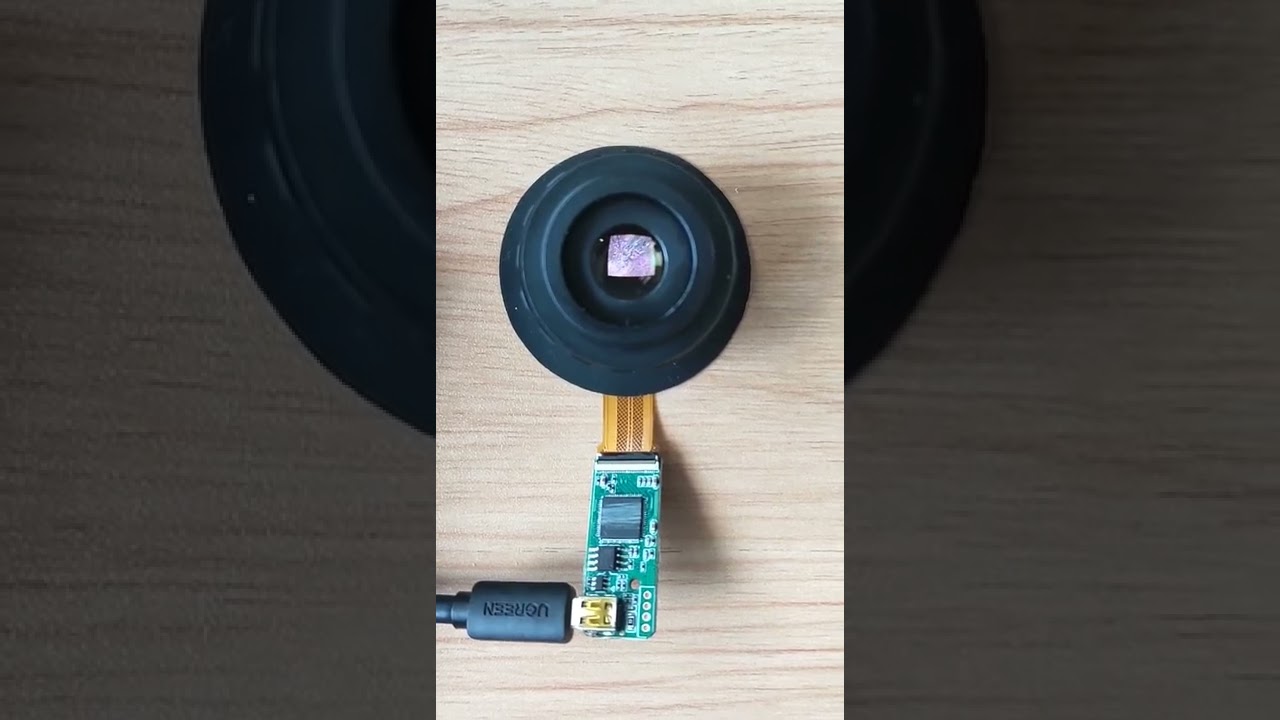

Скачать или смотреть Microdisplay 0.39" Micro OLED DISPLAY FHD 1024(RGB)*768 with HDMI/CVBS Driver board for AR/VR

The ECX334AF is a 1.0 cm (type 0.39) diagonal, 1024 (RGB) × 768 dots active matrix color OLED panel module using
single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight
and high definition.
(Applications: View finders, head mounted displays, very small monitors, etc.)


Features
◆ Small-size, high-definition-type 0.39 XGA display dots 1024 (RGB) × 768 = 2.38M dots
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power-saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported
◆ Input interface that supports parallel RGB 24-bit and YCbCr 16-bit input

Specification:
Display Type: oled display
Diagonal Screen size: 0.39 inch
Interface:parallel RGB 24-bit/YCbCr 16-bit input
Number of Pixels: 1024 (RGB) × 768
Panel Size: 15.6 x 13.6 x 0.2 (mm)
Active Area: 8.143x 6.146 (mm)
Operating Temperature: -10~70°
Operating Temperature: -10~70°
Brightness:300cd/m2-1000cd/m2
