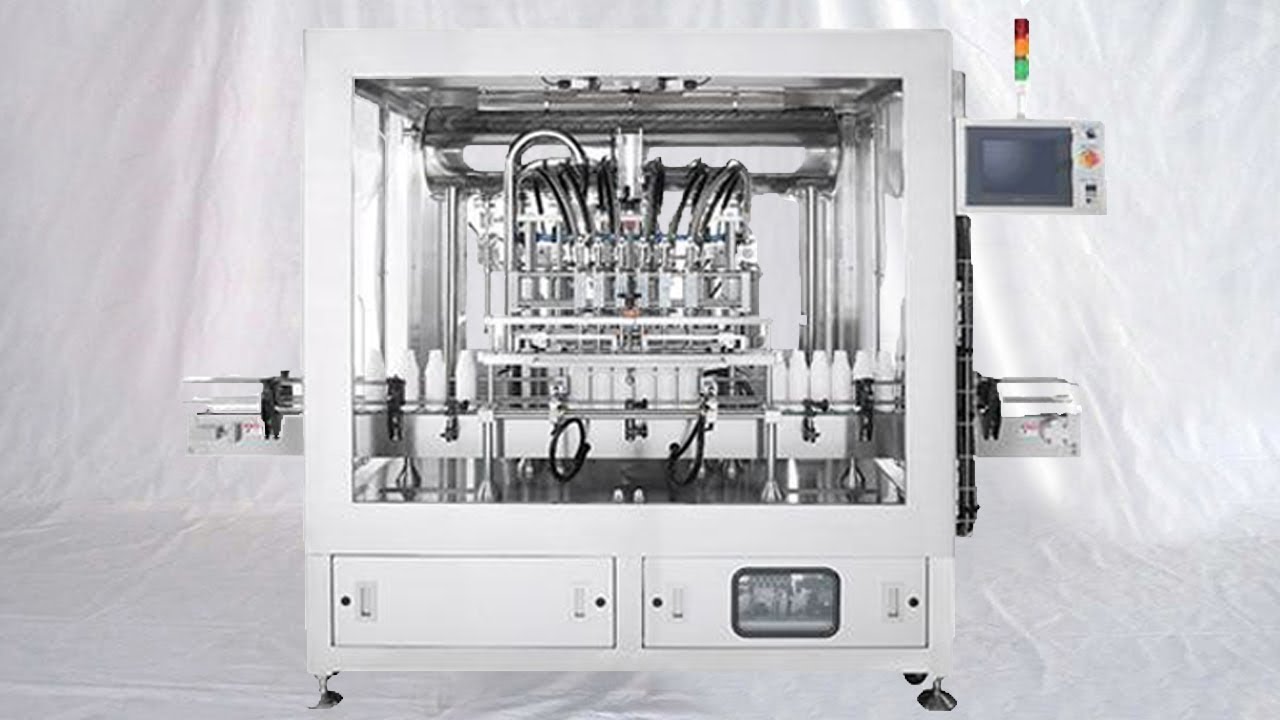

Model YX-F12 Goat milk filling machine linear 12heads servo motor driven filler equipment 全自動直線式伺服灌裝機 designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like filling machinery and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.
This machine,ie model YX-F12 12heads servo motor driven piston filling machine linear olive oil filler equipment for glass bottle Liquide de remplissage linéaire,adopts cylinder transmission, enduring the stability of the equipment, accuracy. All the action of filling, entering, filling, outing and etc can use the search unit tail automatically, besides the detect control, have no bottle and filling action. If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.
Characteristic of YX-F12 12heads sauce filling piston filler caps automated feeding capping equipment llenado de maquinas liquidas:
1.Piston pump to measure quantity and fill, suitable for dense liquid, high-precision.
2.Material contact parts are made of titanium alloy! Anti-corrosive!
3.PLC control system, frequency control, high automatic-control
4.no bottle ,no fill, automatic count;
5.filling quantity is easy to adjust, adjust all pumps at the time or adjust respectively
6.Adopt bottle neck block device to keep the bottle neck aim accurately to the filling nozzle.
7.filling nozzle is drip-proof and anti-draw
8.under filling nozzle installed pneumatic water catcher
9.The machine is suitable for different bottle, easy to adjust in short time
10.12 filling nozzle are divided into 2 groups, 6 each which will not only reduce the errors of bottle entering but also increase the efficiency of the machine! 11.meet GMP requirement
Technical parameters of model YX-F12 12heads servo motor driven piston filling machine linear olive oil filler equipment for glass bottle Liquide de remplissage linéaire:
(1) filling head number: 12 (2) filling capacity: 200ML
(3) filling form: servo piston type filling
(4) filling speed: 60-80bottles/min (5) filling accuracy: 1%
(6) material: stainless steel (7) program control: PLC+ touch screen
(8) the contact liquid part of the filling nozzle and the material groove;Material: 304# stainless steel, PVC, PTFE
(9) air pressure: 0.6-0.8MPa
(10) conveyor belt: 82mm wide stainless steel chain, speed 0-20 M/ min, Height: 750mm (±25mm is adjustable)
(11) transmission motor: 750W frequency control motor
(12) power: about 220V 2.5W/
(13) material groove capacity: 200L (with liquid level switch)
(14) protection device: the reservoir is lack of liquid stopping warning.
(15) 1000X400mm (length X width) of the working table with a single side of the conveyor belt
(16) this machine scheme can be adjustable for many kinds of bottles, but whether it is really suitable for your bottle or not, it will need final confirmation after you send your bottles to your factory.
Main configuration of YX-F12 12heads sauce filling piston filler caps automated feeding capping equipment llenado de maquinas liquidas :
1, frame: 304# stainless steel.
2, machine foot: 201# stainless steel.
3, barrier: 304# stainless steel.
4, Material of feeding tank, filling nozzles and parts that is contacted product directly: 304# stainless steel, food grade PVC or POM Piston with nylon;
5, pneumatic components: Taiwan AIRTAC
6, program controller (PLC): SIEMENS
7, man-machine interface: SIEMENS 7 inch color touch screen
8, photoelectric sensor: Germany LEUZE
9, relay: France Schneider
10, fill pump: domestic stainless steel screw pump
11, conveyor belt motor frequency converter: the United States AB or French Schneider
12, conveyor belt material: 82mm stainless steel chain belt.
13, conveyor belt motor: domestic brands
14, filling machine sealing ring material: PTFE, fluorine rubber
15, machine cover: stainless steel and organic glass.
16, exposed parts: stainless steel, anodized aluminum alloy, the plating process 45# steel, plastic parts.
Our Factory since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about various high quality machinery like Model YX-F12 Goat milk filling machine linear 12heads servo motor driven filler equipment 全自動直線式伺服灌裝機,please email via jackdu999@yahoo.com or browse our website http://penglaichina.com.
