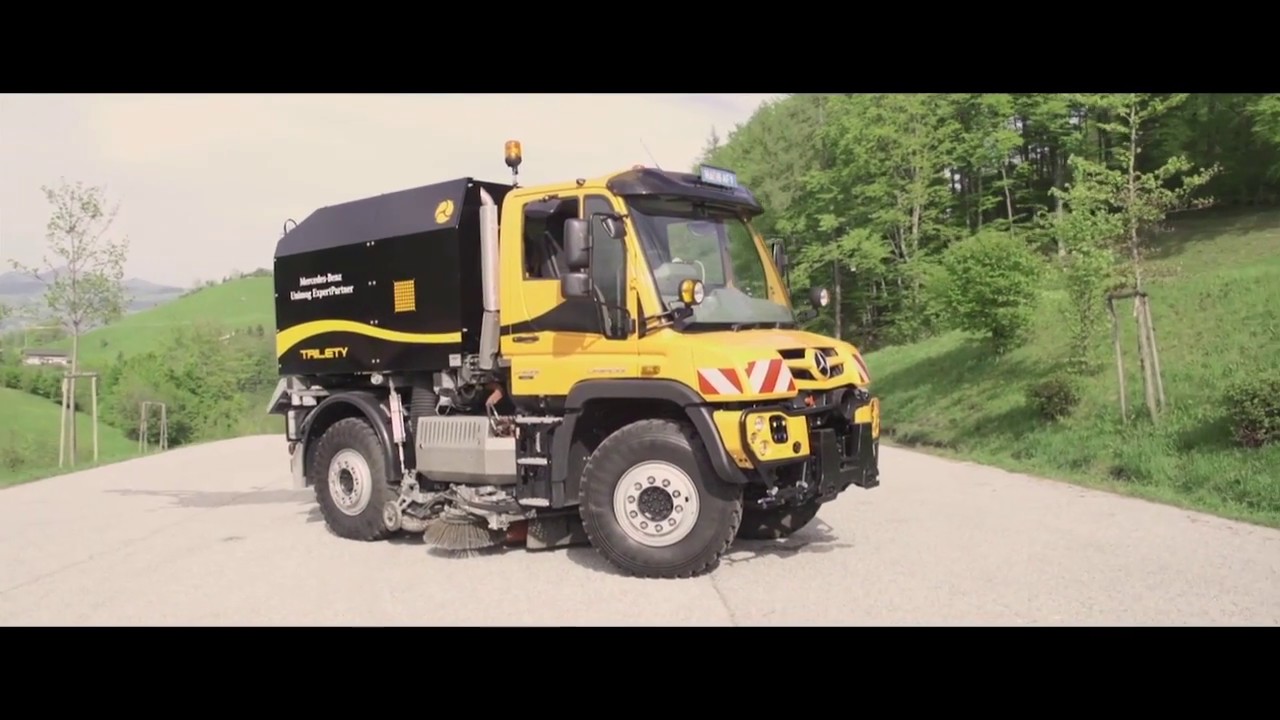

Trilety Unimog TK36 to be mounted onto U423/427 short wheelbase EURO 6

Hopper made of stainless steel (DIN 1.4301), observation flap in the rear door, integral water tank made of stainless steel (Material 1.4301 due to EN 10027-2).
Hopper capacity 3.4m³ , water tank capacity 740l.

Basic frame for ball and socket system of the Unimog including the storage for 4 support legs, for the easy dissembling of the sweeper

Heavy-duty suction fan, hydraulically driven by an axial-piston engine, air flow at full power max. 12,000 m³ and a vacuum of max. 1,200 mm water-column.

Sweeper Suction unit:
right-hand side mounted, with one disc brush 700 mm Ø, pneumatically lifting and swivelling, speed control from the control panel in the cab, ground pressure device operated from the frame, 550 mm wide suction hood, and suction hose 250 mm Ø, extension
roller brush 400 mm Ø 1,500 mm Long

Spray-water unit with a hydraulically driven diaphragm pump, 50 l/min at max. 40 bar

Hydraulic System: hydraulically solenoid valve block with overpressure security valves for the control of rear door of the waste container, water pump drive and all other necessary cylinders and oil flow regulators.

Pneumatic system with pistons for lowering and raising the sweeping unit, a pneumatic solenoid valve block for the control of all components.
