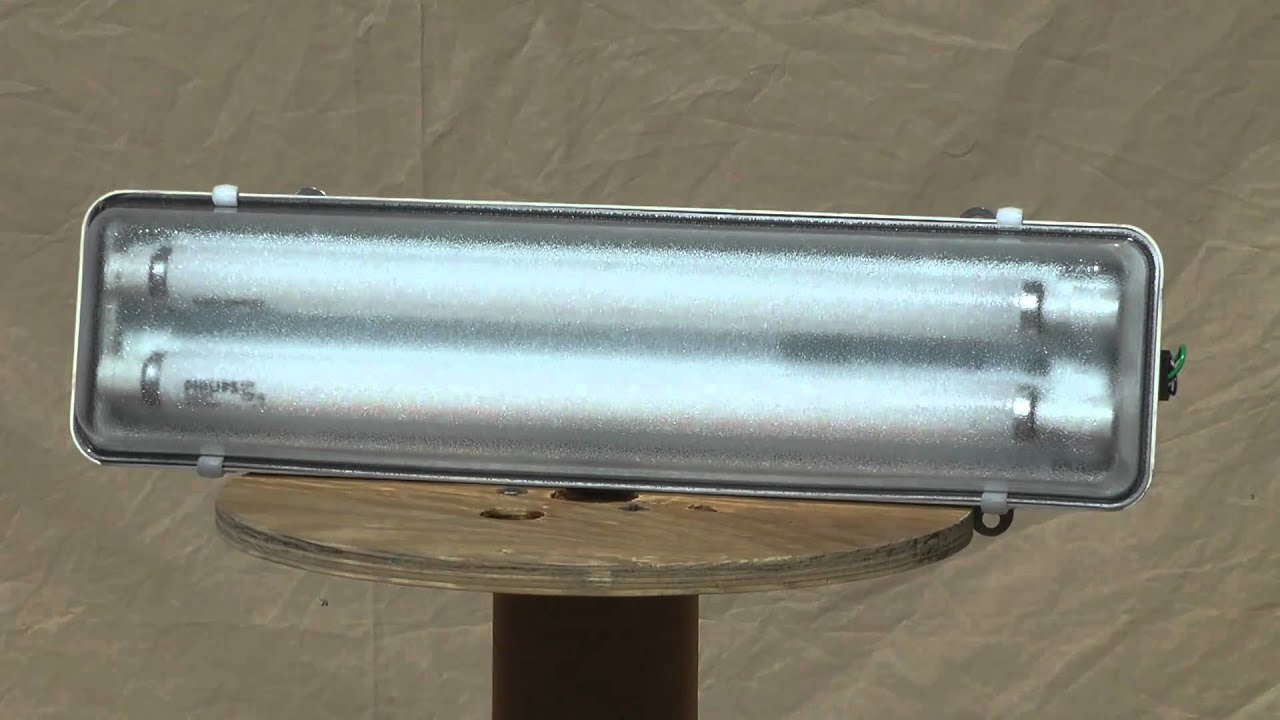

Скачать или смотреть Class 1 Division 2 Fluorescent Light -2 Foot - Corrosion Resistant Requirements (Saltwater)

Class 1 Division 2 fluorescent light specifically designed for corrosion resistant applications, including environments exposed to saltwater. This 2 foot 2 lamp hazardous area location light is designed specifically for saltwater and corrosive environments. The HALP-24-2L is constructed of non-corrosive materials. With a glass fiber reinforced polyester housing, poured in gasket and high impact acrylic diffuser, this fixture is designed to withstand weather and saltwater conditions that will corrode aluminum based fixtures. The stainless steel latches secure the cover to the housing, where poured in gaskets seal the fixture, making the internal area drip proof. This fixture has UL 844 Class 1 Division II rating for Groups A, B, C and D as well as a UL 595 outdoor marine rating for saltwater applications. Finally, this hazardous location fluorescent light meets US Coast Guard specifications.

UL Safety Ratings:
UL 844 Class 1 Division 2 -- Groups A, B, C and D
UL 595 Outdoor Marine Type (saltwater)

Temperature Rating - T4C

Materials:
Housing -- glass fiber reinforced polyester
Diffuser -- high impact acrylic
Fasteners -- Stainless steel locking hinges

Mounting:
Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 18 1/2 inches on center apart along the top of this hazardous location light. The mounting holes are 7 inches on center across the top of the light.

Wiring:
-3/4 inch threaded hub
-Able to wire end to end in series

Voltage:
Multivoltage light accepts input ranging from 120 volts to 277 volts.

Bulb Features:
The fixture contains 2 bulbs. All hazardous location lights are shipped with bulbs. Our most popular standard lamp configuration uses 60 Watt High Output T-12 fluorescent lamps producing 4050 lumens per lamp (8100 lumens total). We use electronic ballasts and these T12 lamps are the newer style T12, not the old style that worked on magnetic ballasts. We also have other bulb options, including:

T5/HO -- 2500 lumens per bulb, 20,000 hours life, 4100 Kelvin color

T12/HO -- 2025 lumens per bulb, 12,000 hours life, 4100 Kelvin color

T8 -- 1500 lumens per bulb, 24,000 hours life, 4100 Kelvin color


Dimensions:
26 inches long X 8.25 inches wide X 7 inches tall

Weight:
5 pounds

Applications:
The HALP-24-2L is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
