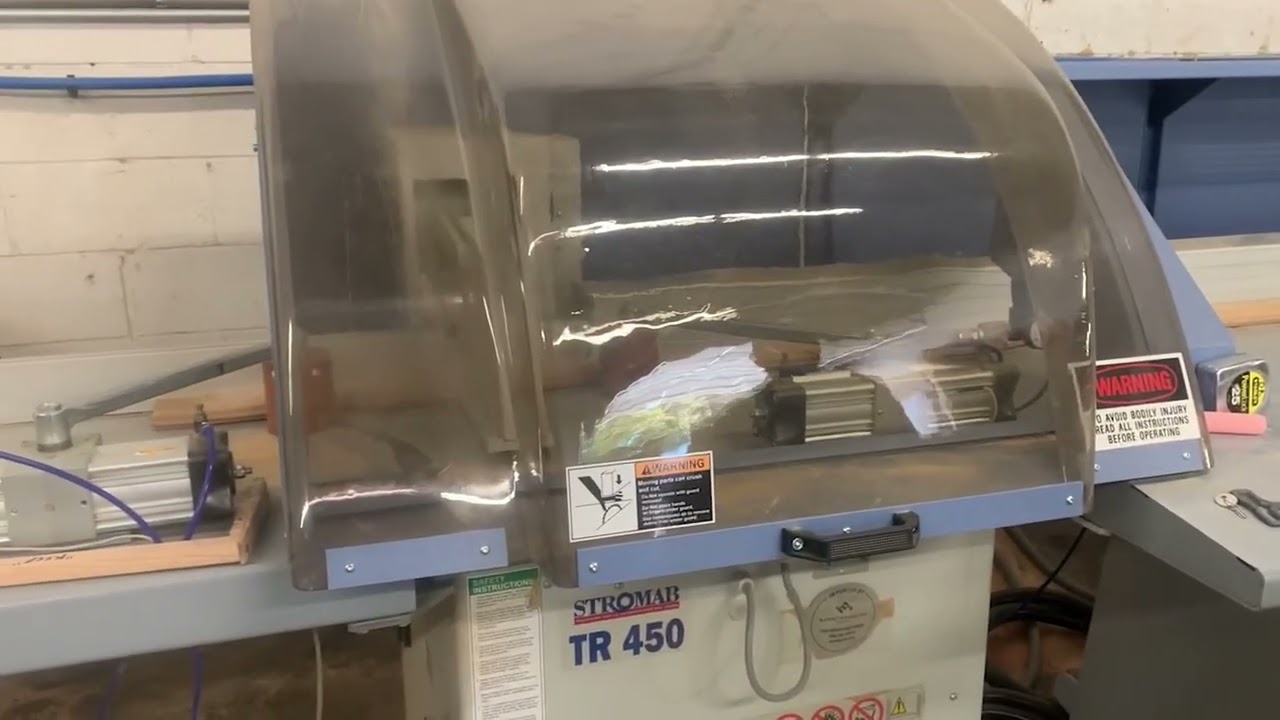

STROMAB MATRIX TR-450 Automatic Crosscutting Saw System (SO-010472)
https://www.exfactory.com/Detail/SO-0...

Specifications:

CNC precision rack & pinion style programmable pusher with horizontal side clamping to assure material position during cutting.
Upcutting Cutoff Saw with 450 mm dia. blade; cutting cap.: 12-1/2" wide x 1" high to 10-1/2" wide x 3-5/16" high; 5.5 HP saw motor.

Onboard computer:
OPTI software package: Automatic measurement of the workpiece being cut. Optimum solution for those working with variable-length materials, with workpieces loaded individually or in bundles.
(6) Optimization options (Maximum length, Sequence, Board sequence, Volume, Minimum waste and Priority). OPTI PLUS package: Mark detection function which guarantees complete optimization and the elimination of knots and defects; marking in fluorescent chalk.
12" Touch screen controller; creation of cutting lists directly on the on-board controller; transfer of cutting lists created by PC via USB or Ethernet port.

Pusher:
Feeder system with precision rack and brushless motor; max. push feed system speed 90 m/min; positioning reading with brushless motor resolver; positioning accuracy +/- 0.4 mm. (0.0015"); 8° inclined work surface; pneumatic lifting of the push feed system at the end of cycle and overhead return; photocell reading of workpiece length; defect detection photocell with fluorescent chalk marking.

Seller also has Rotary Phase Converter available for separate price.
