www.mcgillmicrowave.com introduce the EZ style LMR connectors which set a new gold standard as the easiest connectors to terminate to flexible coaxial cables in the industry – most terminations can be completed in under 30 seconds or less – with consistent resulting superior broadband VSWR performance.

Consisting of only 2 parts the crimp tube and the complete connector body the EZ LMR connectors feature a solderless, push fit /snap on spring finger centre pin design and crimp outer – making them ideal for field installations where no power or soldering is required or permitted in many cases – such as in tunnel installations.

The connector body comes with the centre pin already pre-installed , fully captivated and compliant with the interface specifications of MIL-C-39012 /MIL-STD-348 – thereby eliminating the need to set or check pin/dielectric heights to ensure that no damage occurs during mating due to proud centre pins or dielectrics.

These new EZ style LMR connectors set a new gold standard as the easiest connectors to terminate to flexible coaxial cables in the industry – most terminations can be completed in under 30 seconds or less – with consistent resulting superior broadband VSWR performance.

The X Series connectors have been engineered to offer the additional key advantages and features over our competitors’ products; –

Albaloy/Tri-Plate plating – resulting in superior Corrosion/Salt Fog resistance performance.
No braid trim feature – saves time during termination
Excellent broadband VSWR performance

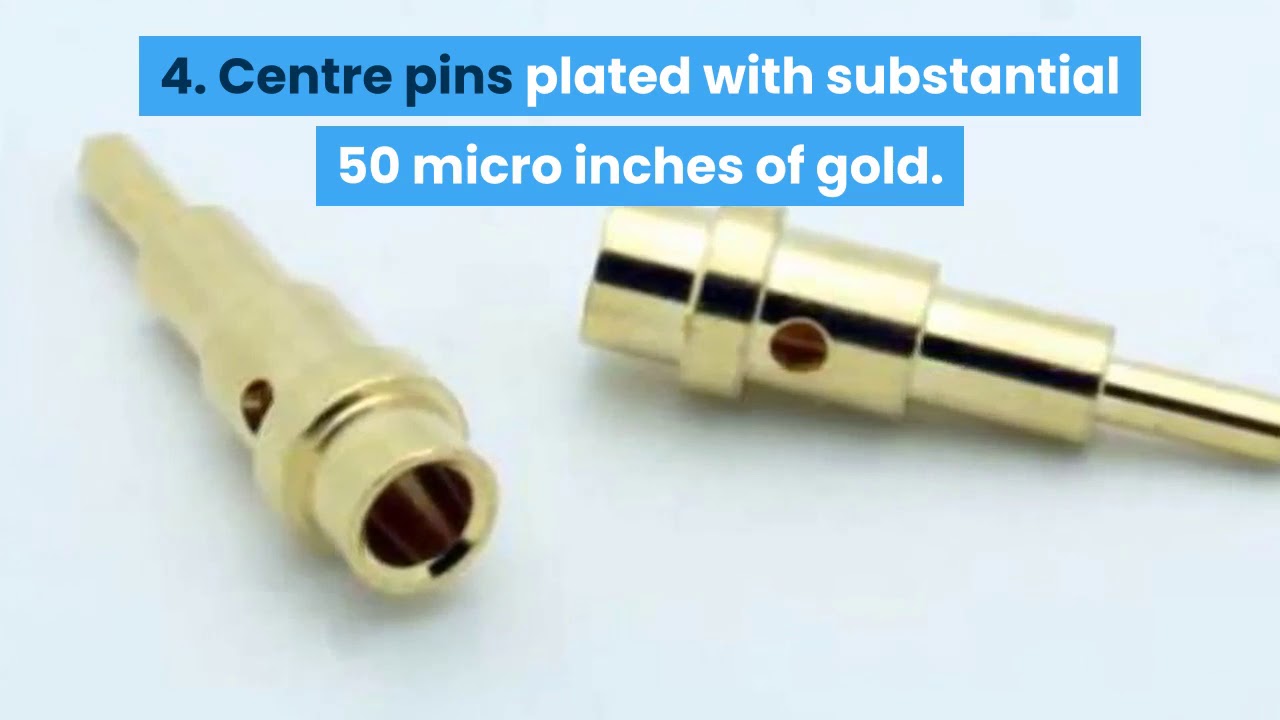

Centre pins plated with substantial 50 micro inches of gold- enhanced mate/de-mate life.
IP 67 Waterproof rated when used with the Times WSB strain relief Weather Sealing Boots.
Rugged Design with hex Coupling nut feature on Male connectors -enabling the use of torque tools to ensure proper mating force
Compatible with Times assembly aid tooling such as CST and CT strip/crimp tools
Solderless rapid assembly design
Indelible Laser marked with the Times part number
Superior pull strength /connector retention designs.

Some of the most popular LMR EZ Connectors are:

EZ-195-SM-X
EZ-195-NMH-X
EZ-240-NMH-X
EZ-240-NMH-RA-X
EZ-400-NMH-X
EZ-400-NMH-RA-X
EZ-400-TM-X
EZ-400-BM-X
EZ-600-NMH-X
EZ-600-716M-X
EZ-600-TM-X
EZ-600-NMH-RA-X

At McGill Microwave Systems, we have a wealth of knowledge to assist with choosing the correct connector for your application.

You can shop the full LMR Connector range at www.mcgillmicrowave.com
