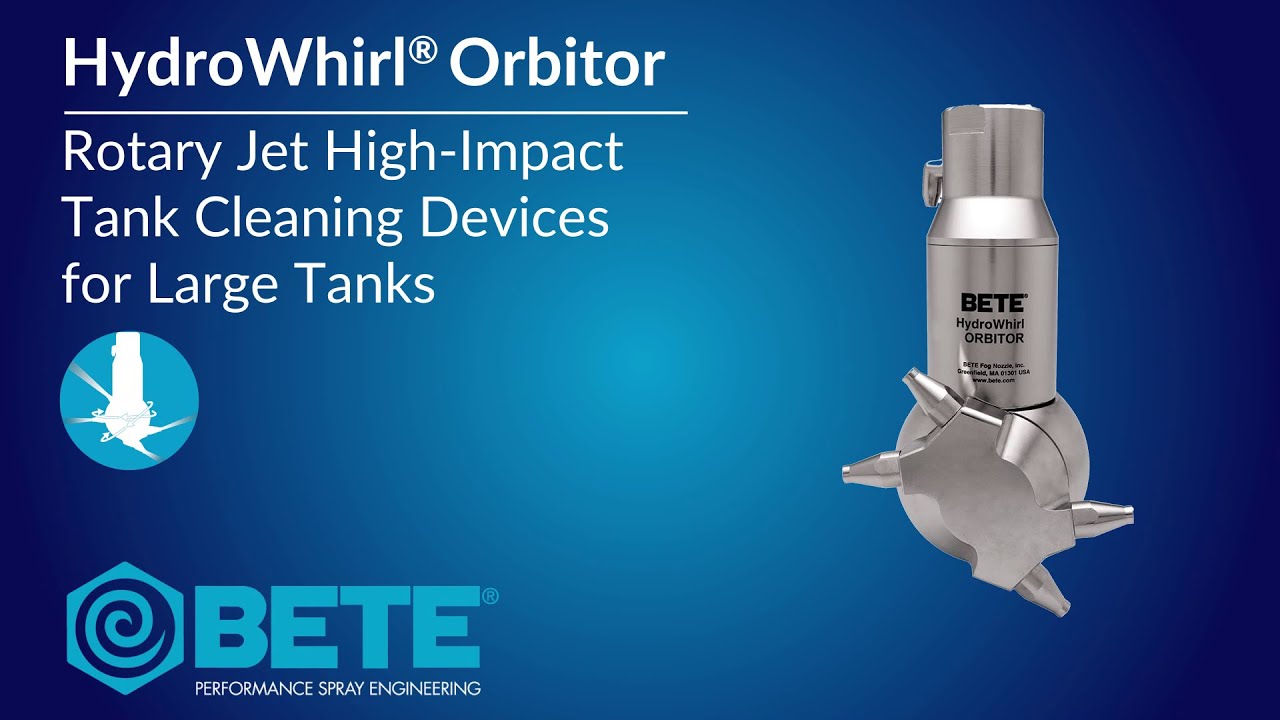

Скачать или смотреть Efficiently Clean Tanks and Equipment with BETE HydroWhirl® Orbitor Tank Cleaning Nozzles

The HydroWhirl Orbitor is a versatile tank cleaning machine designed for the most challenging cleaning applications in the food, beverage, and chemical processing industries. Rotary jets use the spray media flowing through internal gears on the body to rotate sets of high-impact jet nozzles through an efficient two-axis orbital pattern, providing complete 360° coverage. https://bete.com/product/hydrowhirl-o...

Design Features
• Self-cleaning, self-lubricating
• Ideal for use in large tanks to remove difficult soils
• Easy to maintain and repair on-site
• Designed with minimum moving parts to ensure extended operating life
• Solid jet streams provide high impact
• Two-axis orbital spray pattern provides controlled rotation for complete 360° spray coverage
• Available in two and four-nozzle configurations
• ATEX approval is available

Spray Angles: Complete 360° spray coverage
Flow Rates: 22.6 to 160 GPM
Max. Temperature Rating: 200°F/93°C
Connection Type: 1 ½” NPT
Suggested Filtration: Line strainer with a mesh of 0.015 mm/35 mesh
