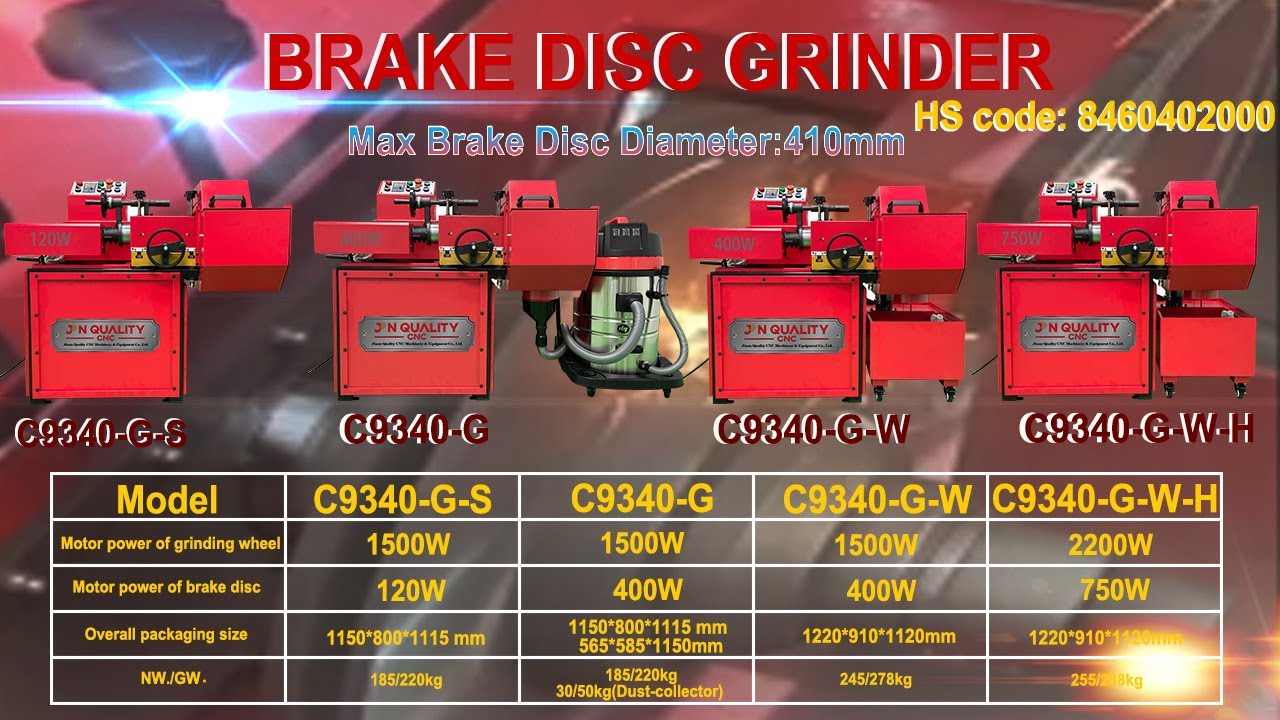

Скачать или смотреть JN QUALITY CNC Brake Disc Grinding Machine C9340-G-S, C9340-G, C9340-G-W, C9340-G-W-H.

The brake disc grinding machine is designed for car brake disc ( ≤ 410mm diameter ) repairing.
It has obtained two patents authorized by Chinese State Intellectual Property Office.

1.The grinder processes the brake disc by grinding way, with high precision;
2.The accuracy and appearance after grinding can be comparable to the brake disc state when the new car leaves the factory;
3.The brake disc grinder is easy to operate, and the accuracy is easy to control;
4.The brake disc grinder has compact structure and small operation space.

Main technical parameters:
1.The maximum grinding diameter is 410 mm;
2.The maximum thickness of the grinding brake disc is 42 mm;
3.The maximum width is 100 mm;
4.The grinding surface is less than Ra0.8um;
5.The axial offset is less than 0.005-0.01 mm.

The advantages of water-grinding , comparing with dry-cooling grinding as below:
1.Avoiding heat-disformation on brake discs;
2.Cooling the grinding wheels, so prolong its lifetime;
3.Better environmental protection without any dust pollution;
4.Reduce noise pollution when grinding;
5.Reduce packaging volume and save shipping costs.

if you have interest in our machines , please contact us:
Tel/Whatsapp/We chat:+8613176441785
