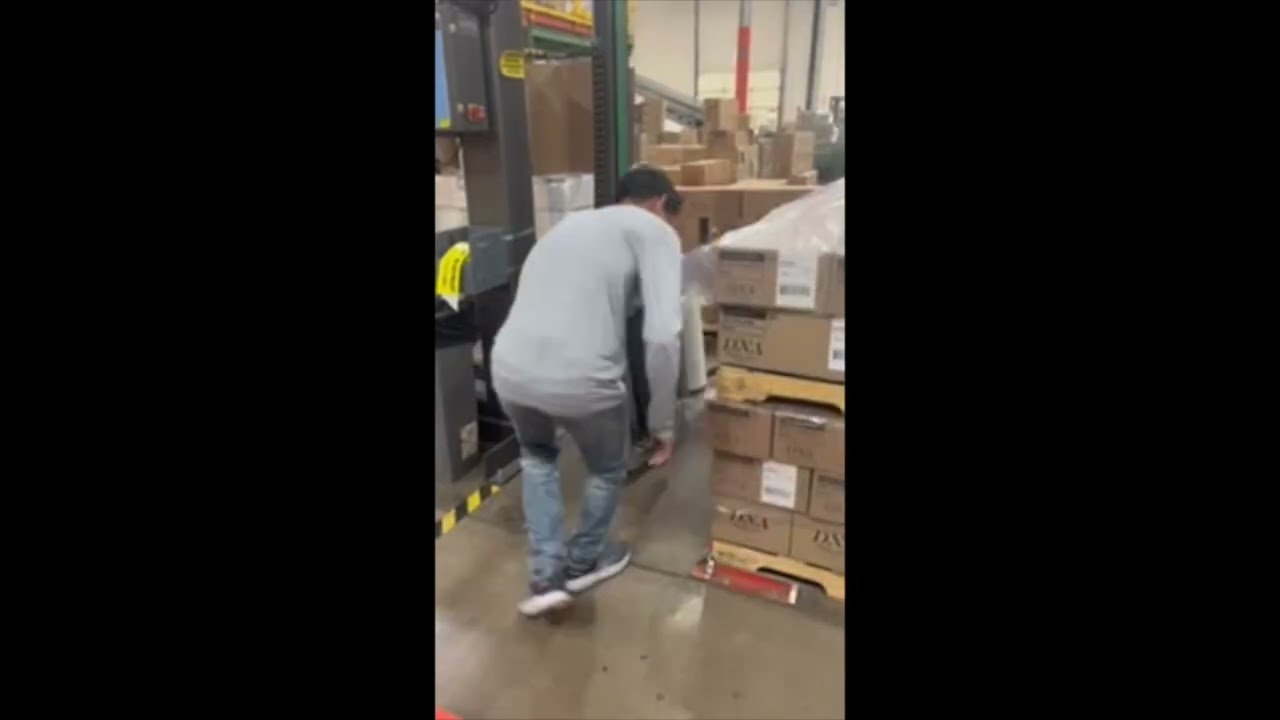

Скачать или смотреть Cousins 4100T-FSR Free-Standing Rear Mount Semi-Automatic Pallet Stretch Wrapper

Learn more: https://revelationmachinery.com/produ...

Used Cousins 4100T-FSR Free-Standing Rear Mount Semi-Automatic Pallet Stretch Wrapper:

PRODUCTION SPEED:
30 loads per hour throughout
NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

LOAD CAPACITY:
Maximum load weight: Unlimited (floor supported)
Maximum load size: 50″ W x 50″ L (71″ max. load diagonal) x 86″ H

ROTARY ARM:
Double flange bearing support system
Twin V-belt drive pulleys with belt tensioner
1-12 RPM rotational speed c/w soft start acceleration
Final revolution deceleration and positive stop alignment
1/2 HP DC variable speed motor

FILM CARRIAGE ELEVATOR:
1/2 HP AC variable speed motor
Direct flat belt drive system
Maintenance free 12 point carriage guidance system

FILM DELIVERY SYSTEM:

Super Rapid Thread II ™ 20″ capacity pre-stretch film carriage
Special Film Threading Device
Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load
1/2 HP AC variable speed motor
Fully electronic dynamic dancer corner compensation
33% to 313% fixed stretch capability
Pre-stretch ratio variable using easy sprocket change
Rapid Thread ™ Safety Door with auto power cut-off switch
Superior film-to-roller contact area

ELECTRICAL INPUT: 115 Volts 1 Phase 60 Hz 12 Amps
