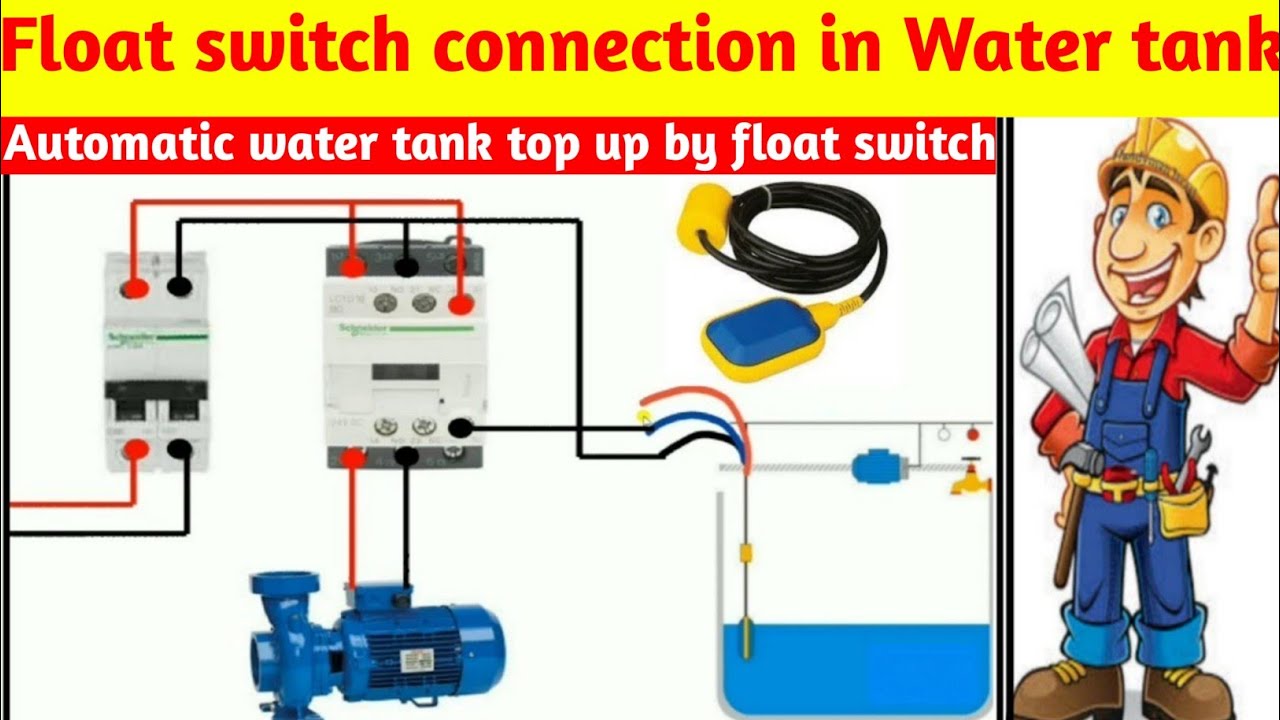

Today I will tell you about the connection of float switch with submersible pump starter.
आज मैं आपको सबमर्सिबल पंप स्टार्टर के साथ फ्लोट स्विच के कनेक्शन के बारे में बताऊंगा |

About of Float switch:-
A float switch is a type of level sensor, a device used to detect the level of liquid within a tank. The switch may be used to control a pump, as an indicator, an alarm, or to control other devices. One type of float switch uses a mercury switch inside a hinged float.

What is a float switch?
A float switch is a device that is used to detect the level of a liquid in a tank. Based on the water level, it will open or close an electrical circuit generally used to pump water in or out of the tank.

How does a float switch work?
A float switch moves with the liquid level up and down. An internal mechanical switch opens or closes an electrical circuit with gravity. The electrical circuit can then be used to turn on/off equipment, like a water pump.

What does a float switch do?
A float switch monitors the level of a liquid in a tank. It then opens or closes an electrical circuit based on the liquid level and wiring to control external components.

How do you set up a float switch?
This model has built-in hysteresis to control the emptying of a well or tank, with a high alarm – all in one float.
Step 1: Define Your Low Point. ...
Step 2: Mount The Float Switch. ...
Step 3: Adjust Your Weight. ...
Step 4: Wiring. ...
Step 1: Define your High Point. ...
Step 2: Adjust Your Weight. ...
Step 3: Mount The Float Switch

How does a double float switch work?
The Double Float® pump switch is designed to directly control pumps up to 1 HP at 120 VAC and 2 HP at 230 VAC in non-potable water, water and sewage applications. ... Each float contains a heavy-duty mercury switch. The splice tube contains a holding relay which enables the floats to function in series.

How do I test a float switch with a MultiMeter?
Attach the MultiMeter leads to the float switch wires. The Multimeter should be set to the Ohms. The MultiMeter should read zero when the float hangs in the down position. Lifting the float will change the zero to one.

How do you use a water level float switch?
Act as a mechanical switch or dry contact, extended out into 2 wires. There is a float-able cylinder component surrounding the sensor. When the cylinder and at the bottom, the switch is open. When water level rises, it push the cylinder upwards and the switch closes.

How high should the float be on a sump pump?
In your case, I would set the float to turn the pump on when the water reaches 4 inches or so below the level of your basement. The pump should turn off when the water reaches approximately 6 inches above the bottom of the sump pit.
