Stadium Perimeter Outdoor LED Display Maintenance Process: P8.33 400mm x 300mm LED Module Repair Procedures. Applications include advertising, sponsorship, live match information display, broadcast interaction, multilingual communication, audience guidance, public announcements, countdown timers, promotion of match sponsors, and other relevant functionalities;
#stadium #football #stadiumleddisplay #perimeterleddisplay #outdoorleddisplay #outdoorledscreen
For additional information regarding LED display solutions, please refer to the following link: https://www.proluxon.cn/perimeter-led...
...........................
LED display module repair typically involves the following steps:
1. Troubleshooting - Observation: Carefully examine the fault manifestations of the LED display module, such as areas that are not illuminated, abnormal coloration across the entire screen, flickering, or pixelation issues.
2. Troubleshooting - Power Supply: Verify the integrity of the power supply by ensuring that the power cable is securely connected and measuring whether the output voltage falls within the specified range. If the voltage is outside the acceptable range, it may indicate damage to the power module, necessitating its replacement.
3. Troubleshooting - Signal Transmission: Inspect the signal connection lines for proper insertion, signs of looseness, or physical damage. Re-seating the signal line can be attempted as a preliminary solution. For systems with multiple modules, swapping their positions can help isolate signal transmission issues. If the problem persists, the signal transmission line may require repair or replacement.
#ledmodule #repair #replacement #maintenance #troubleshooting #testing
LED Module Disassembly:
1. Power Off: Prior to disassembling the module, ensure that the power supply of the LED display is turned off to guarantee safe operation.
2. Remove Fixing Screws: Based on the module's installation method, utilize the appropriate tools to unscrew the fixing screws or release the buckles securing the module.
3. Carefully Detach the Module: Gently extract the module from the display frame while exercising caution to avoid excessive force, which could potentially damage the module or other components.
#ledchip #pcb #driver #powersupply #resistor #capacitor
Repair or Replacement:

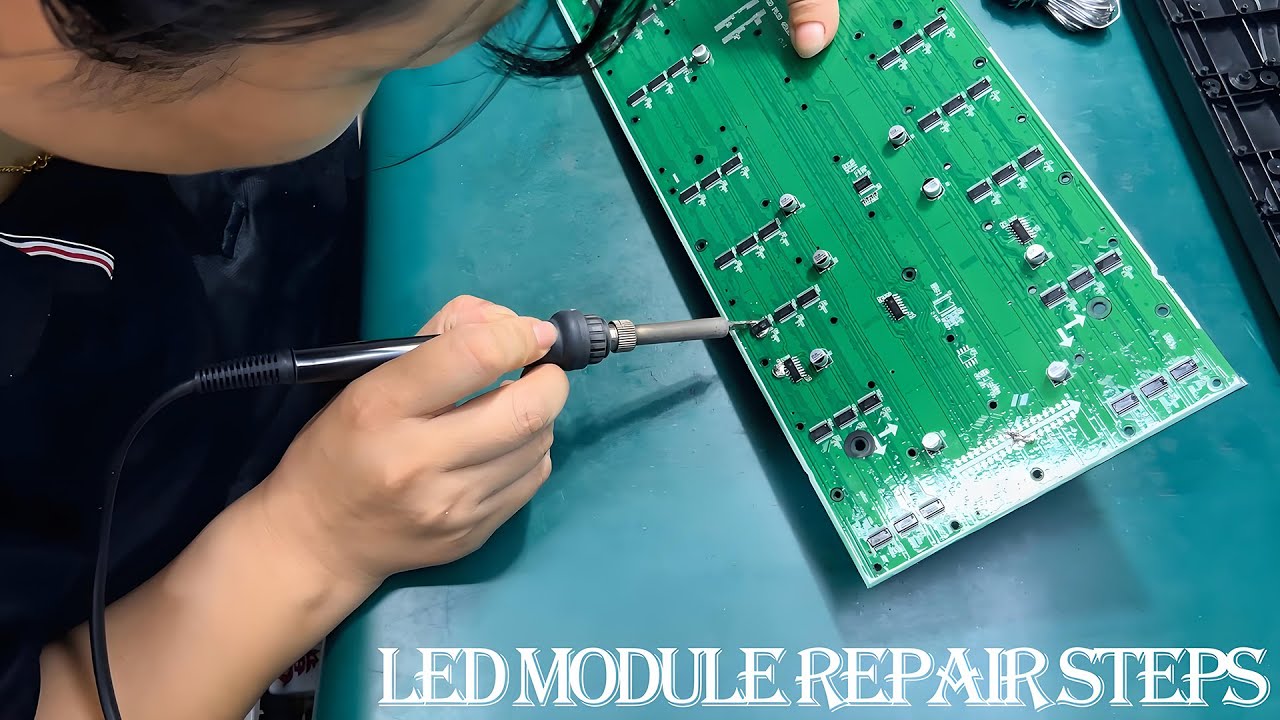

1. Inspect Module Components: Conduct a thorough inspection of the removed module to identify any obvious component damages, such as capacitor bulging, chip burnout, LED lamp bead failure, etc. Replace damaged components using professional soldering tools. For instance, if capacitors or chips are damaged, they should be replaced with precision. If an LED lamp bead is faulty, use specialized tools like a hot air rework station to remove the defective bead and solder a new one in its place. Additionally, repair the circuit by identifying potential issues such as open circuits or short circuits. Open circuits can be addressed by reconnecting wires, while short circuits require locating the fault point and resolving it accordingly.
2. Test the Module: After completing the repairs, connect the module to testing equipment, such as a display test bench or directly to the original display system (ensuring all other components are functioning properly). Power on the module to verify whether normal operation has been restored. If issues persist, revisit the repair process to identify any overlooked fault points.
#multimeter #soldertingiron #leddisplay #ledscreen #ledbillboard #dooh #ooh #ledsignage
Module Installation and Debugging:
01. Module Installation: Carefully reinstall the repaired module into the display frame in the correct orientation and position. Secure the screws or fasten the buckles to ensure that the module is firmly mounted.
02. Cable Connection: Properly connect the signal and power cables to the module, ensuring that all interfaces are tightly secured to prevent any looseness.
03. System Debugging: Power on the system and conduct a comprehensive test of the entire LED display to verify whether the repaired module functions correctly in conjunction with other components. Additionally, confirm that the image quality, color accuracy, and brightness levels meet the specified requirements. If necessary, implement further adjustments and optimizations.
#ledsign #leddisplayboard #digitalsignage
...................................
