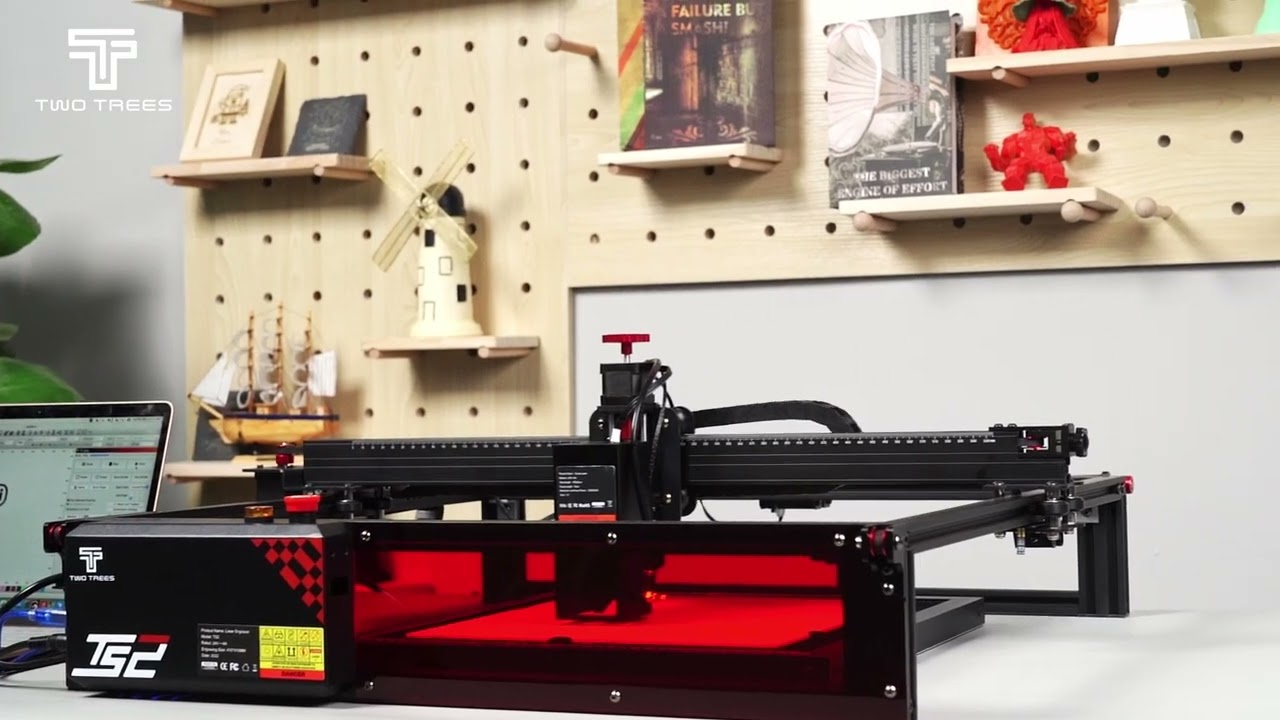

Скачать или смотреть Two Trees TS2 20W Laser Engraver

Features:
♦ Compressed Spot Technology : 20W laser is powerful to cut 8mm plywood easily. Advanced LD+FAC+C-lens technology enables the spot to reach up to 0.08mm, and get much cleaner, thinner, smoother, deeper cuts. Able to cut 15mm plywood by one time. Equipped with laser automatic lifting module, and autofocus design, easy to adjust.
♦ Built-in Air Assist kit : The laser head comes with a built-in air assist kit to improve engraving and cutting effect. The external air pump, as an enhanced additional accessory, will be used to assist to get the best effect in cutting and engraving.(the pump is not included)
♦ Offline Engraving: Built-in ESP32-DOWD-V3 chip, 32-bitLX6 microprocessor, high speed dicing, more compatible with GRBL & Lightburn software, higher precision of engraving and cutting.
♦ Strong Stability Design: XY axis tensioner adjusts and tightens the timing belt by the tensioning pulley to improve the precision of the movement. New Y-axis motion structure design ensures it stable and synchronized operation, suitable for high-speed movements.
♦ High Quality: 60% pre-assembled parts with modular design makes installation easier than ever before. 410x410 (16.1 x 16.1inches) work area provides a large space to create.
♦ Strong Compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, G-code, NC, BMP, etc.
♦ Safety Protection: The machine set a red emergency stop button to stops working immediately. It cannot be started unless you turn the button in the right direction to unlock. Design with flame detector, fire alarming, smart auto power off function and protection cover for maximized safety.

Specification:
Model: TS2-20W
Color: black+red
Machine material: aluminum profile + sheet metal + acrylic
Laser power: 20W compressed spot (combined light)
Spot compression technology: yes
Laser wavelength: 450nm±5nm
Output power: 40W
Spot size: 0.08*0.08mm
Height adjustment method: Lifting module adjustment (automatic)
Focusing method: fixed focus
Machine size: 733*721*172mm
Engraving size: 410*410mm
XY axis positioning accuracy: 0.1mm
Engraving accuracy: 0.1mm
Engraving speed: 10000mm/min
Engraving method: USB connection\APP\wireless computer WEB terminal
Carving material: wood, plastic, paper, leather, sponge paper
Software recognition format: NC, DXF, BMP, JPG, PNG, GCODE
Engraving modes: graphic engraving, file engraving, scan engraving, outline engraving, pixel engraving
Control board: 32-bit main control board
Languages: Chinese, English, Italian, French, German
System: MAC, Window, Linux
Machine weight: 7.4KG
Package Size: 760x230x345mm/30x9x13.5in
Package Weight: 11kg/2.2lb
