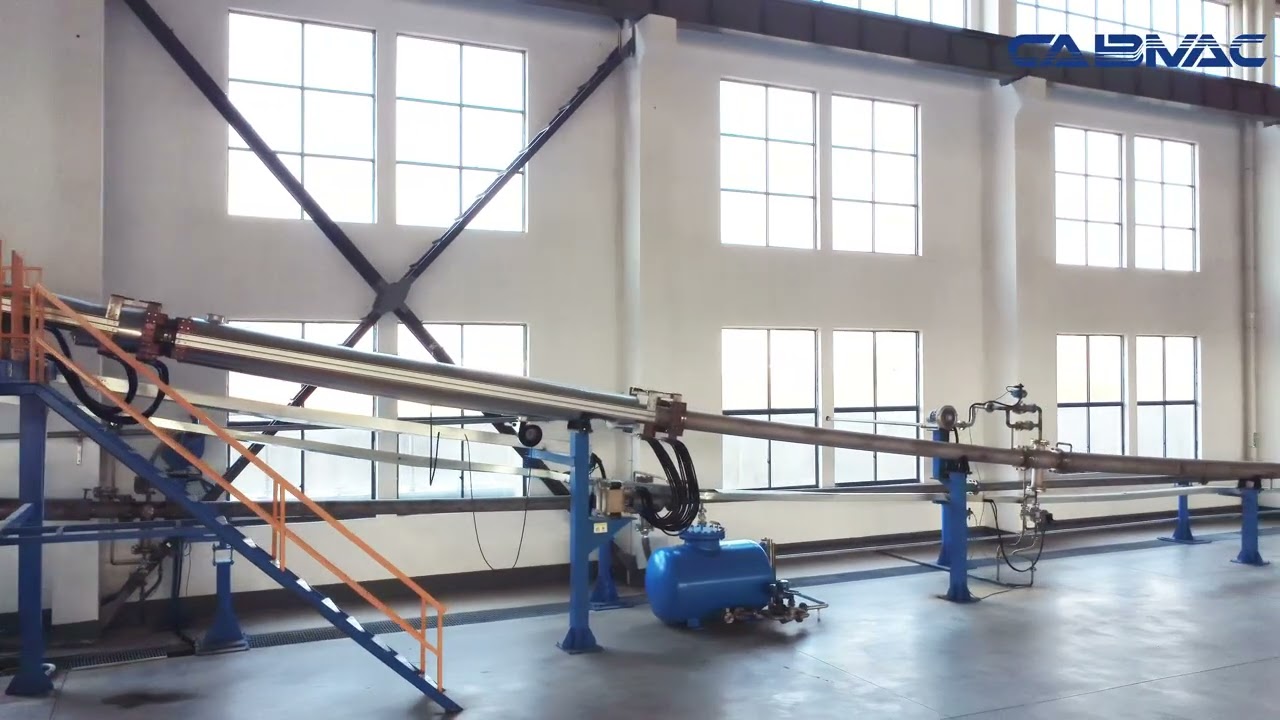

This video presents the CABMAC CCV (Catenary Continuous Vulcanization) medium-voltage cross-linking extrusion line.
Through aerial and on-site views, the overall line layout, equipment scale, and process section arrangement are clearly shown, highlighting the engineering complexity and system integration required for MV cable manufacturing.
The CCV line is designed around continuous vulcanization technology and is intended for medium-voltage cable production projects with high requirements for line configuration and process coordination.

📌 Parameters · Performance
• Applicable voltage grade: 6–35 kV
• Conductor cross-section: 35–1600 mm² (Cu / Al)
• Conductor diameter: 7–55 mm
• Insulation thickness: 3.2–21 mm
• Max cable diameter: 90 mm
• Line speed (geared): 0–25 m/min
• Haul-off system: Double pulling device
• Control mode: DC or AC inverter control
• Pipe layout mode: Semi-catenary type

📌 Application
Used for manufacturing medium-voltage cross-linked insulated cables, including:
• MV XLPE insulated power cables
• MV cable cores produced by CCV processes

📌 End-Use Industries
Cables produced on CCV lines are widely applied in:
• Urban and regional power distribution systems
• Industrial power networks
• Energy and infrastructure projects
• Applications requiring high insulation reliability

The CABMAC CCV medium-voltage cross-linking extrusion line is delivered as a project-based solution, focusing on line layout and process compatibility.
Customized line configurations and engineering designs are available to match different cable structures, plant conditions, and production requirements.
